China 0.6/1kv YJV 3Core 1.0-400mm2 Insulated Power Cable PVC Sheathed 3x300mm2 for sale

0.6/1kv YJV 3Core 1.0-400mm2 Insulated Power Cable PVC Sheathed 3x300mm2

Name: 0.6/1kv YJV 3Core 1.0-400mm2 Insulated Power Cable PVC Sheathed 3x300mm2
Brand: Shaoxing Jinxuan Metal Products Co., Ltd

Price Negotiable

Price: $0.35/meter

MOQ: 100 Meters

Delivery Time: Negotiable

Brand: Jiangnan

Product Description

0.6/1kv YJV 3Core/1.0-400mm2 Cu Conductor XLPE Insulated PVC Sheathed 3x300mm2 Power Cable

Products Description

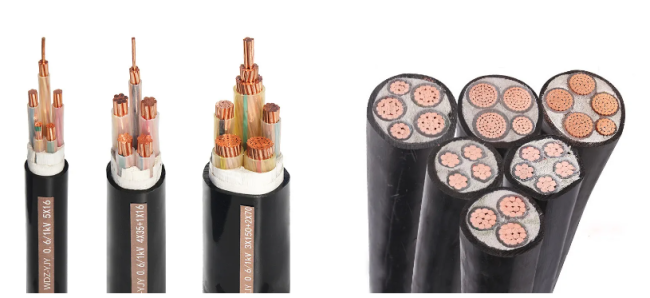

Copper core XLPE insulated PVC sheathed power cable
Executive standard:

National standard: GB/T12706.2-2008 rated voltage 1KV (Um=1.2KV) to 35KV (Um=1.2KV) extruded insulated power cables and accessories

International standard: IEC60502-2:2005 rated voltage 1~30KV extruded insulated power cables and accessories

Additional standard: GB/T 19666-2005 General rules for flame-retardant and fire-resistant cables

Scope of application: It should be used on transmission and distribution lines with 50 Hz AC rated voltage Uo/U of 0.6/1KV and below.

Conductor maximum DC resistance at 20°C

			Conductor Nominal Section mm2
			Conductor maximum DC resistance at 20°C(Ω/km)

			copper
			aluminum

			1
			18.1
			--

			1.5
			12.1
			--

			2.5
			7.41
			12.1

			4
			4.61
			7.41

			6
			3.08
			4.61

			10
			1.83
			3.08

			16
			1.15
			1.91

			25
			0.727
			1.20

			35
			0.524
			0.868

			50
			0.387
			0.641

			70
			0.268
			0.443

			95
			0.193
			0.320

			120
			0.153
			0.253

			150
			0.124
			0.206

			185
			0.0991
			0.164

			240
			0.0754
			0.125

			300
			0.0601
			0.100

			400
			0.0470
			0.0778

			500
			0.0366
			0.0605

			630
			0.0283
			0.0469

			800
			0.0221
			0.0367

			Power frequency AC voltage test
			Test voltage 3.5kV/5min

Features
XLPE insulated power cables have electrical properties, mechanical properties, heat aging resistance, environmental stress resistance and chemical corrosion resistance. Large capacity, flame retardant.

YJV

0.6/1kv YJV 3core/1.0-400mm2 Cu Conductor XLPE insulated PVC sheathed 3x300mm2 power cable

Product model and application

Model		Name	APPLICATION
Copper core	aluminium core	Name	APPLICATION
YJV	YJLV	XLPE insulated PVC sheathed power cable	Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
YJV	YJLV	XLPE insulated PVC sheathed power cable
YJY	YJLY	XLPE insulated PE sheathed power cable	Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
YJV22	YJLV22	XLPE insulated steel tape armored PVC sheathed power cable	Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
YJV23	YJLV23	XLPE insulated steel tape armored PE sheathed power cable	Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
YJV32	YJLV32	XLPE insulated fine steel wire armored PVC sheathed power cable	Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force

Application

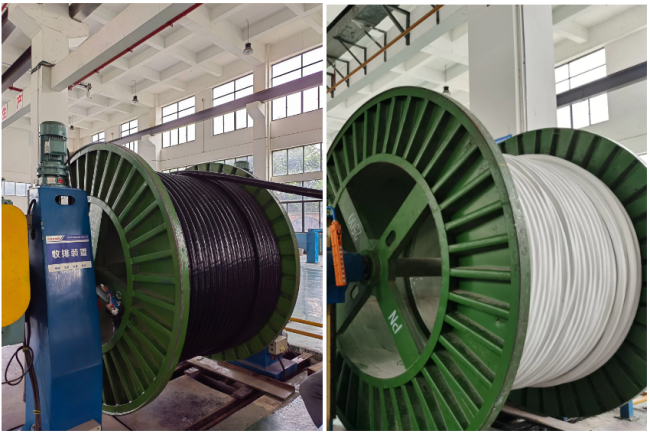

Quality Inspection

Certifications

FAQ

1.What are your main products?

bare wires,power plant & electrical equipment wire and cable, control cable, electromagnetic wire, 1KV and below power

cable,mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable,environmental protection wire cable, steel tape armoured cable, etc

2.Can we have our logo or company name to be printed on your products or the package?

Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects. What's more, our R&D team will give you the professional suggestions.

3.How does your company do regarding Quality Control?

1)All raw material we selected the high quality one.

2)Professional & Skilful workers care every details in handling the producing.

3)Quality Control Department specially responsible for quality checking in each process.

4.How does your company do regarding Quality Control?

Yes, we'd like to provide free samples for your reference, you only need bear exp ress fees.

5. Are you a factory or trading company?
We are a factory located in Wuxi, Jiangsu, integrating R&D, manufacturing and sales of various wires and cables.

3x300mm2 Cu Conductor XLPE Insulated Power Cable PVC Sheathed 0.6/1kV Rated

YJV32 Low Smoke Low Halogen Cable 3300mm 3400mm Armored Electric Cable

TUV PV1-F Solar Cable EN50618 H1Z2Z2-K Solar Cable XLPO Insulation

XLPE Insulated Power Cable Single Core 6mm2

Copper Clad Aluminum Wire 0.18mm 0.6mm

1-12cores FTTH Drop Cable

Gytc8s Self Supporting Fiber Optic Cable With Messenger Aerial 12 Core

XLPE Insulation Solar Photovoltaic Cable PV1-F-14/16 Solar Pv Dc Cable

High Performance PVC Insulation Cable Flexible Power Cable For Business Needs

JL/G1A-240/30 ACSR Cable High Conductivity Overhead Power Lines GB/T1179-2017

Small Diameter FTTH Fiber Optic Cable Light Weight PE Jacket

High Safety Low Voltage Power Cable Insulation Yjlv Aluminium Core Xlpe / Pvc For Building Project

Get in Touch

Have questions about our products or want to discuss a custom order? Our team is ready to help you.

Company Shaoxing Jinxuan Metal Products Co., Ltd

Location Shangyu District, Shaoxing City, Zhejiang Province, China

Contact Person Victoria

Request A Quote

Email Address *

Please check your email address.

Phone / WhatsApp

Your Message *

Your message must be at least 20 characters.

Conductor Nominal Section mm2	Conductor maximum DC resistance at 20°C(Ω/km)
Conductor Nominal Section mm2	copper	aluminum
1	18.1	--
1.5	12.1	--
2.5	7.41	12.1
4	4.61	7.41
6	3.08	4.61
10	1.83	3.08
16	1.15	1.91
25	0.727	1.20
35	0.524	0.868
50	0.387	0.641
70	0.268	0.443
95	0.193	0.320
120	0.153	0.253
150	0.124	0.206
185	0.0991	0.164
240	0.0754	0.125
300	0.0601	0.100
400	0.0470	0.0778
500	0.0366	0.0605
630	0.0283	0.0469
800	0.0221	0.0367
Power frequency AC voltage test	Test voltage 3.5kV/5min
