60 Degree 3D 4D Handheld Ultrasound Scanner Fetus Camera M1 4.0MHz

Price Negotiable
Price: Negotiable
MOQ: 1 Unit
Delivery Time: 2 working days
Brand: Golead
Product Description

3D 4D Handheld Ultrasound Scanner Fetus Camera Factory Price



Features



Handheld Ultrasound Scanner Fetus Camera M1 is compose of Device and APP, which is a new concept camera designed for pregnant women to watch their unborn baby anytime anywhere.



Basic shooting steps



1. Lay on a comfortable sofa or bed.

2. Put Gel evenly onto the pregnant mother’s belly.

3. Move or rotate even incline the camera to find the baby position.

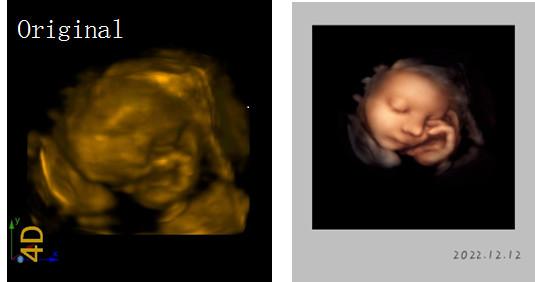

4. Adjust the finder frame and split line for generating 3D images.

5. Save the videos or images after adjusting the Filter and other dates.



Specification:

​​

Scanning mode Electronic Convex with 96 elements
Display mode B
Frequency 4.0MHz
Depth 37.8cm
Scan angle 60 degree
Head radius 60mm
Image Adjust Gain, TGC, Focus, Harmonic, Denoise, Depth, Dynamic Range, Color Gain, PRF, Steer
Measure Length, Area, Circumference, Angle, Trace, Obstetrics
Annotation Yes
FPS 8-30
Dimension 161.5*105*153.5mm
Working System

Android7.0 above and iOS7.0 above



Storage, Cleaning and Maintenance



Daily storage and protection

•The camera is a precision device. When not in use, please put the camera back in the packing box;
•The sensor at the bottom of the camera is a core component, so please take care not to let it be hit, dropped, etc.
•Do not scratch/pierce the camera with sharp objects;
•Avoid contact with corrosive harmful substances;
•Avoid foreign matter such as water, dust, insects, etc., into the heat dissipation hole;
•Do not leave the camera in a damp environment;
•Do not place the camera in an environment where the temperature is above 50°C or below -10°C.


Application



Pregnant woman



Content Included



Wireless Handheld Ultrasound Scanner – M1 Probe

Internal Battery

Charging Cable

User Manual

Warranty Card
