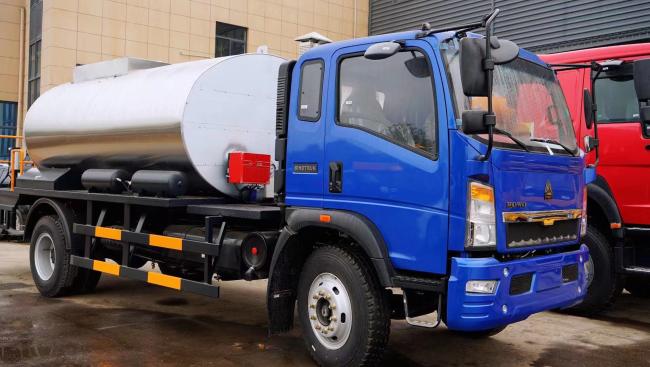

Fortius Asphalt Distributor Truck HOWO 4X2 Chassis 5000L 3000L For Road Construction
Fortius Asphalt Distributor Truck HOWO 4X2 Chassis 5000L 3000L For Road Construction
Advantage:

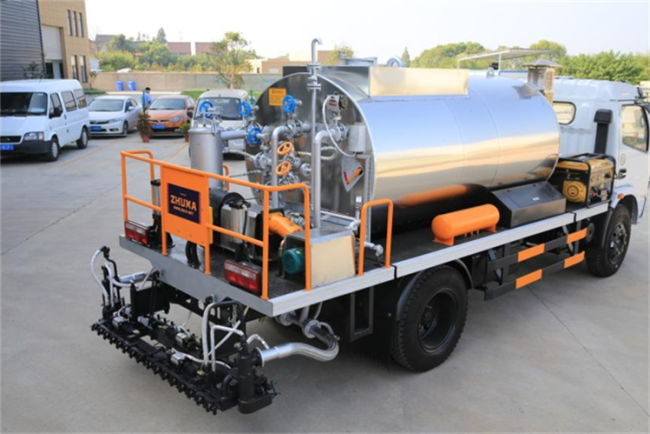

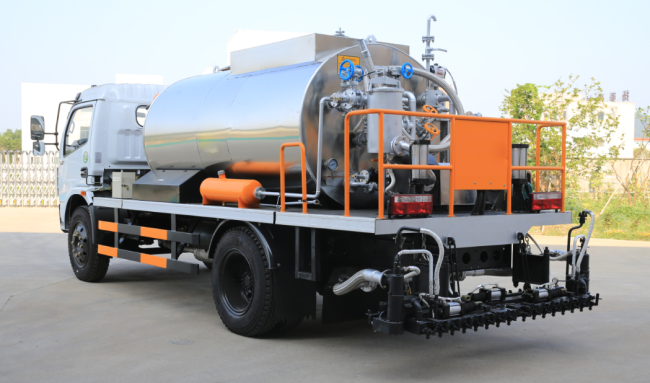

SPRAYBAR
Folding type rear spray bar up to 33 nozzles and Spray width from 4.5m separated pneumatic nozzles can be operated by any combination width.
CONTROL PANEL
Integrated button control panel: PTO asphalt pump, asphalt valve and nozzles can be operated at the cab of truck.
Rear operating platfom :Each nozzle can operate separately according to the work environment and easy to maintain.
HANDSPRAYGUN
The newly designed hand spray gun is convenient for the operator to hold.The integrated design of the gun head avoids disassembly.
Anti-scald handle to prevent operators from getting burned.
Product Description:
| Model | FTS5093GLQ |
| Shipping Dimension | 7350x2500x2580mm |
| GVW (kg) | 7000 |
| Tank capacity | 3000L |
| Material | Q235 carbon steel coated with stainless steel Q235 |
| Insulate thickness | 50mm Fiberglass |
| Asphalt spray rate (L/m2) | 0.3-3.0 |
| Nozzles number | 33 |
| Spray width(mm) | 4500 |
| Power take off | From the gearbox |
| Hydraulic motor | L2F63W2P2 |
| Asphalt pump | CB450 |
| Control system | Integrated button control panel Optional: Digital flow meter |
| Generator | HONDA 2500 1.5KW |
| Hand Spray | 5m Hand spray lance |
| Self-priming | 4m Suction pipe |
Detailed Picture:
FAQ:
Q1, What's the warranty?
A: Engine, transmission, axle guarantee one year (Any faulty caused by incorrect operation or man-made factors is exclusive of guarantee.)
Q2, What's your after-sale service?
A: We provide technical support for our trucks and whole life parts supply.
