Hydraulic Heating Drummed Bitumen Drum Decanter Asphalt Melter Melting Equipment
Hydraulic Heating Drummed Bitumen Drum Decanter Asphalt Melter Melting Equipment
Main Feature:

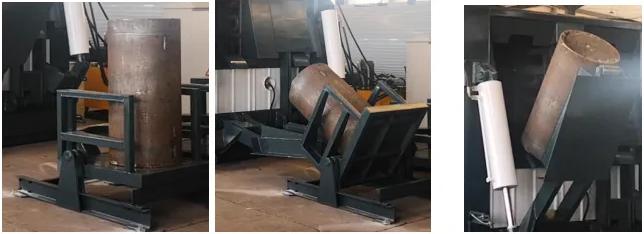

1.Turning over the barrel and turning the barrel into mixer can be completed in one time, single bitumen decanting process takes less than 20s.
2.The machine automatically reverses the oil barrel instead of manually turning over the oil barrel, which greatly reduces the labor intensity of the workers.
3.The bitumen pump set has an internal circulation function to optimize the heat transfer coefficient and increase the bitumen melting speed.
4.The electrical operating system uses in both manual and automatic ways.
5.Hydraulic cylinder speed can be adjusted according to actual needs.
6.Automatic slag removal: The equipment has automatic slag removal function. The asphalt pipeline system is provided with a filtering device, which can automatically remove the slag of the barreled bitumen through the filtration of the filter.
7.Environmental protection: closed structure, no pollution.
8.Adaptability: It can be customized according to various sizes of asphalt drums.
9.Convenient relocation: The whole machine adopts modular design and compact structure, which is convenient for relocation and quick assembly.
Product parameters
|
Model |
SHIM-TT4 |
|
Productivity |
3-4 |
|
Amount |
20 |
|
Capacity of bitumen storage(m3) |
12 |
|
The tempera-ture of bitumen(℃) |
130-160 |
|
Asphalt pump(m3/h) |
27 |
|
Speed of the truck(m/min) |
10.4 |
|
Power of thermal oil boiler(kw) |
470 |
|
Total power of electric(Kw) |
<30 |
|
Total weight(T) |
16 |

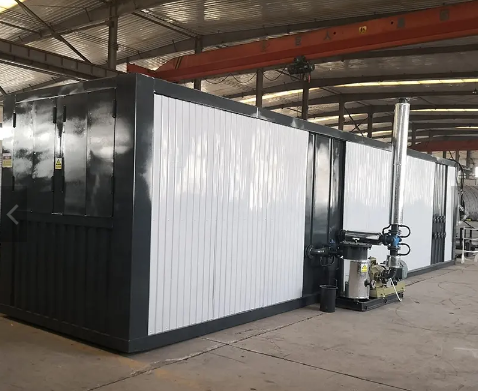

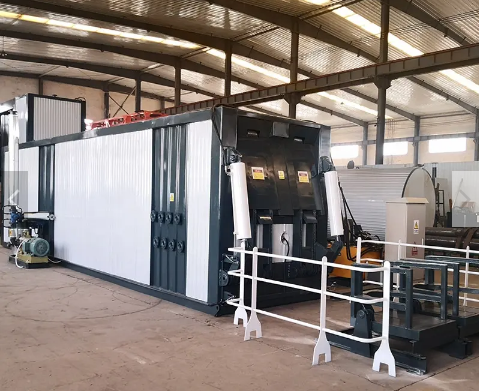

Product Show:
