Water truck is also called spray truck, multifunction watering truck, landscaping watering truck, water tanker, water wagon etc., widely used in road rinsing, landscaping etc., It possess multi features such as watering, dust suppression, spraying pesticide, cleaning rail.

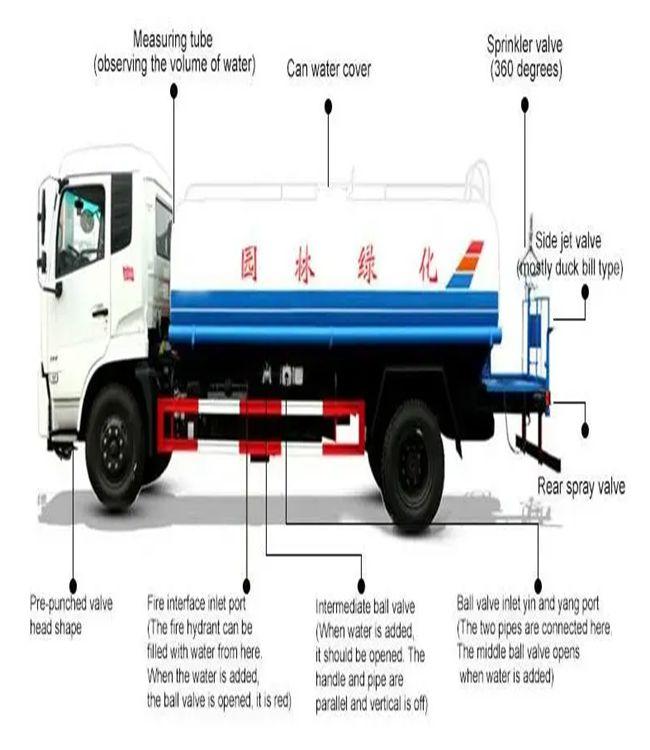

The water sprayer truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water tanker trucks is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain, etc. The spraying width of clw water truck is more than 15m and the cannon range is more than 25m.
As a professional water sprinkler tank truck supplier in China, besides normal water bowser truck, we also have multifunction water truck, such as water truck mounted crane, water truck mounted aerial working platform, etc.
The water bowser truck capacity is from 3000 liters to 30,000liter. The tank material of water tank are stainless steel, carbon steel, aluminium alloy.
| Dimension(L×W ×H)(unloaded)(mm) | 9500×2500×3300 10000x2500x3300 | |
| Tank Volume (m3) | 20m³ | |
| Approaching angle/Departure angle(°) | 16/15 | |
| Overhang(front/rear) (mm) | 1500/2325 | |
| Wheel base (mm) | 4325+1350 4600+1350 | |
| Max speed(km/h) | 90 | |
| Curb weight(kg) | 10870 | |
| Loading Weight(kg) | 25000 | |
| Engine (Steyr technology, made in China) |
Model | WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
| Fuel type | Diesel | |
| Power, max(kw/rpm) | 247/2200(336HP) | |
| Emission | EURO 2 | |
| Fuel tanker capacity (L) | 400 | |
| Transmission | Model | HW19710,10 forward&2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Front axle | Steering with double T-cross section beam HF7 Drum | |
| Rear axle | ST16 Pressed axle housing, central double reduction with differential locks between axles and wheels ; |
|
| Tyre | 295/80R22.5,with one spare tire | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
| Cab | HOWO76 Standard cab, one sleeper, with A/C. | |
