Weichai Engine High Powerhorse Special Vehicles SINOTRUK HOWO 8T Truck Mounted Crane
Weichai Engine High Powerhorse Special Vehicles SINOTRUK HOWO 8T Truck Mounted Crane
Advantage:
HOWO Truck With Crane has passed strict inspection from assembly to delivery. The crane with technical performance is one of the most popular crane transportation combination in the world, it can be in: 10-20 meters radius range of low-altitude lifting and rapid displacement.
Truck with crane advantages are: full hydraulic operation, flexible Angle, accurate positioning, stable operation, flexibility, light weight, large lifting force, small size, not restricted by the operating environment. After the operation can shrink folding, extremely large limit to reduce the space occupation, set from hanging, dump, from transport in a body, really achieve a multi-purpose truck, greatly reduce the cost of the use side. Therefore, the truck with crane has been widely used in construction and construction sites for lifting, displacement, installation and transportation purposes.
Product Parameter
| Cabin | Driving type 6x4 | |
| HOWO 76 cab, with air condition and one bed. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 10000×2500×3710 |
| Carriage Size (L x W x H) mm | 5600×2300×800 | |
| Wheel base (mm) | 3225+1350 | |
| Wheel track (front/rear) (mm) | 2022/1800 | |
| Approach/Departure angle(°) | 10/16 | |
| Weight in KGS | Tare Weight | 13200 |
| payload | 40000 | |
| Front axles loading capacity |
HF7, 7000kg Option: HF9, 9000kg |
|
| Rear axles loading capacity |
ST16, 2x16000 Option:HC16,2x16000 |
|
| Engine | Model | WD615.69 |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 336 HP | |
| Emission standard | Euro II | |
| Gearbox | HW19710,10 Forwards gear & 1 reverse gear | |
| Steering | ZF8118, from Germany | |
| Tire | 12.00R20 all radial steel tires | |
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
| Crane specifications | Brand : XCMG | |
| Type: Knuckle | ||
| Max lift capacity: 8000 kg | ||
| Max working radius 10 m, Max lifting height :12.5 m | ||

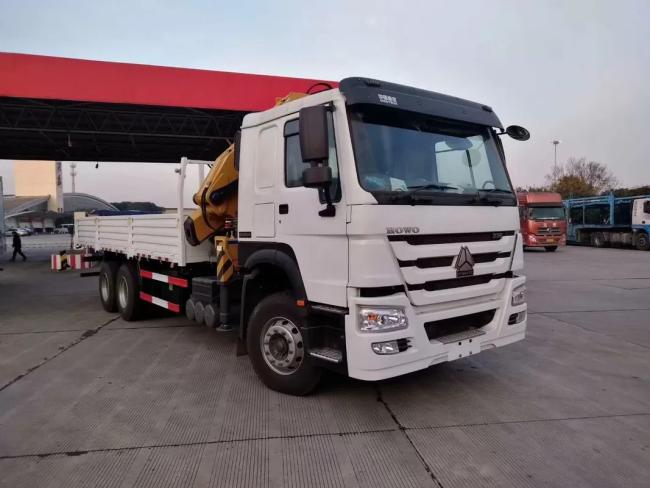

Product Photos
