25 Ton 20CBM 6x4 Water Sprinkler Truck SINOTRUK For Sanitation
SINOTRUK Water Tank Trucks 25 Ton 20CBM 6x4 Water Sprinkler Truck For Sanitation
Product Advantages
The 20m3 SINOTRUK 6x4 water sprayer truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water tanker trucks is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain, etc. The spraying width of water truck is more than 15m and the cannon range is more than 25m.
As a professional water sprinkling truck supplier in China, besides normal water bowser truck, we also have multifunction water truck, such as water truck mounted crane, water truck mounted aerial working platform, etc.
We could supply HOWO Light water truck 3,000 liters-10,000liters, HOWO 6x4 water tank truck 15,000liters to 25,000liter. The tank material of water tank are stainless steel, carbon steel, aluminium alloy.
Product Paramter
| Dimension(L×W ×H)(unloaded)(mm) | 9500×2500×3300 10000x2500x3300 | |
| Tank Volume (m3) | 20m³ | |
| Approaching angle/Departure angle(°) | 16/15 | |
| Overhang(front/rear) (mm) | 1500/2325 | |
| Wheel base (mm) | 4325+1350/4600+1350 | |
| Max speed(km/h) | 90 | |
| Curb weight(kg) | 10870 | |
| Loading Weight(kg) | 25000 | |
Engine | Model | WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
| Fuel type | Diesel | |
| Power, max(kw/rpm) | 247/2200(336HP) | |
| Emission | EURO 2 | |
| Fuel tanker capacity (L) | 400 | |
| Transmission | Model | HW19710,10 forward&2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Steering system | Model | ZF |
| Front axle | Steering with double T-cross section beam HF7 Drum | |
| Rear axle | ST16 | |
| Tyre | 295/80R22.5,with one spare tire | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
| Cab | HOWO76 Standard cab, one sleeper, with A/C. | |

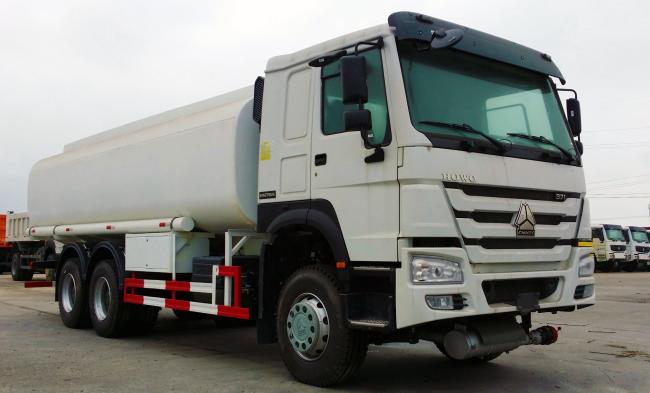

Product Photos
