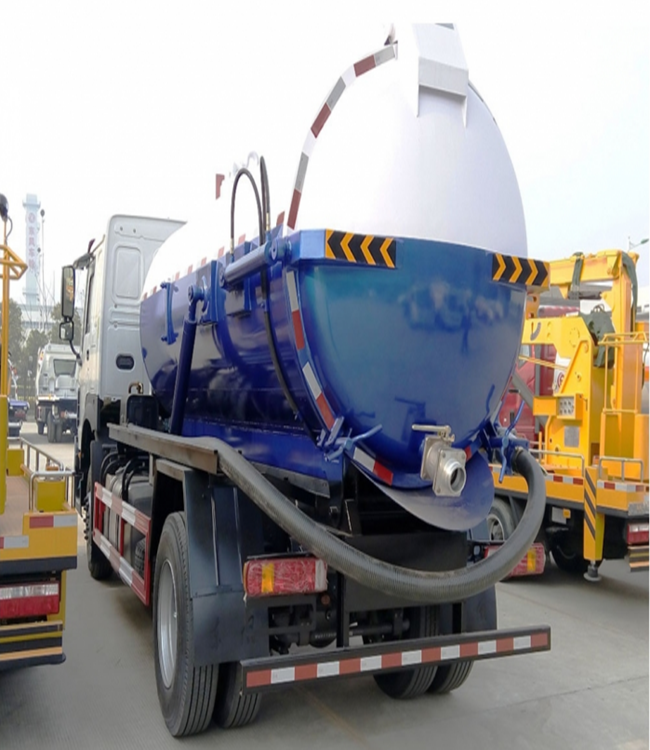

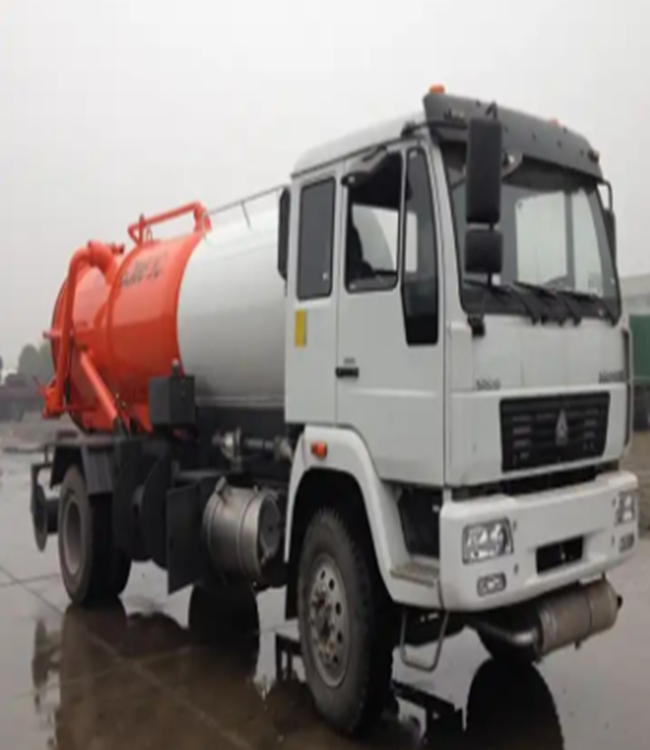

12 Cubic Meters 4X2 Sewage Suction Truck SINOTRUK HOWO 6 Wheeler Euro2 Vacuum
SINOTRUK HOWO 12 Cubic Meters 4X2 Sewage Suction Truck 6 Wheeler Euro2 Sewer Wleaner Vacuum Sewage Suction Truck
Product description
Sewage Suction Truck is sanitation vehicles which is used for collecting and transporting sewage and sludge in municipal, environmental sanitation and large property management company ,
to avoid secondary pollution , with vacuum suction ,pressure discharge function efficient and time saving vacuum pump, valve and others are imported products.
1 .Equipped with special vacuum pump,Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment, Time for full sucktion<5min

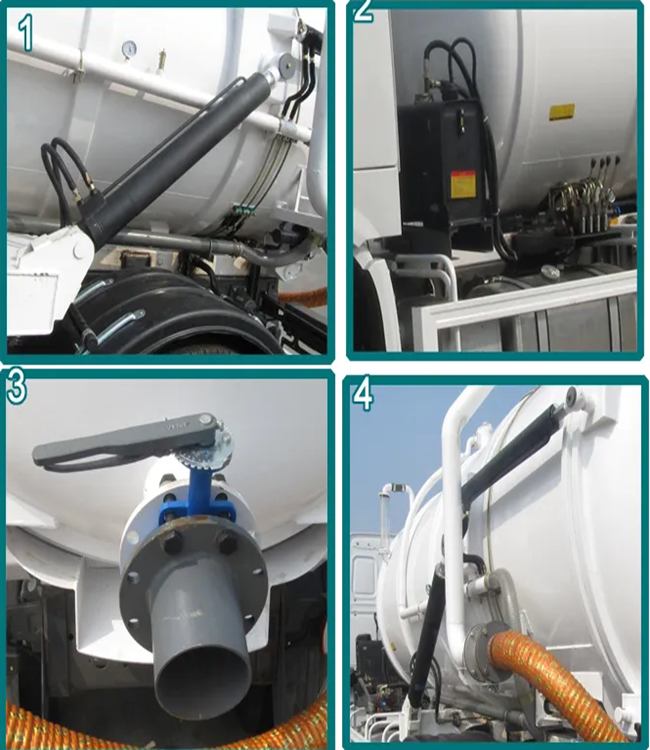

2. The sewage suction truck special section, taking the force transmission device by rotary vane pumps, vacuum pump , (with domestic leading technology big suction) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
3. The Sewage suction truck oblique liquid, can suck full alarm device after full automatic alarm, prevent sewage spills of vacuum pump caused damage, optional choose carbon steel, stainless steel, epoxy resin anticorrosive processing (rounded pot), may do anticorrosive processing, extracting partial chemical sewage and waste water
|
Chassis Model
|
ZZ1167M4611W |
|
Drive Type
|
4×2 |
|
Engine
|
WD615.62, 266HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
|
Transmission
|
HW15710(10 forwards & 2 reverses) |
|
Front Axle
|
HF7 (1X7Tons) |
|
Driving Axle
|
HC16(1X16Tons) |
|
Clutch
|
hydraulically operating with air assistance |
|
Rim/ Tire
|
11.00R20 |
|
Wheel base
|
4600(mm) |
|
Capacity of tank body
|
8-12CBM |
|
Diameter of suction tube
|
Φ100mm |
|
Suction depth
|
≥ 8 m |
| Vacuum pump |
type: Vane pump Pumping speed: 318 m3/h Rated speed: 1300rpm |
|
Overall dimension
|
7128×2462×3175mm |
|
The curb weight
|
8010(Kg) |
|
Gross weight
|
16000 kg |
|
Max. speed
|
95km/h |
|
Color
|
White, red, green, golden and so on. |
Product details
