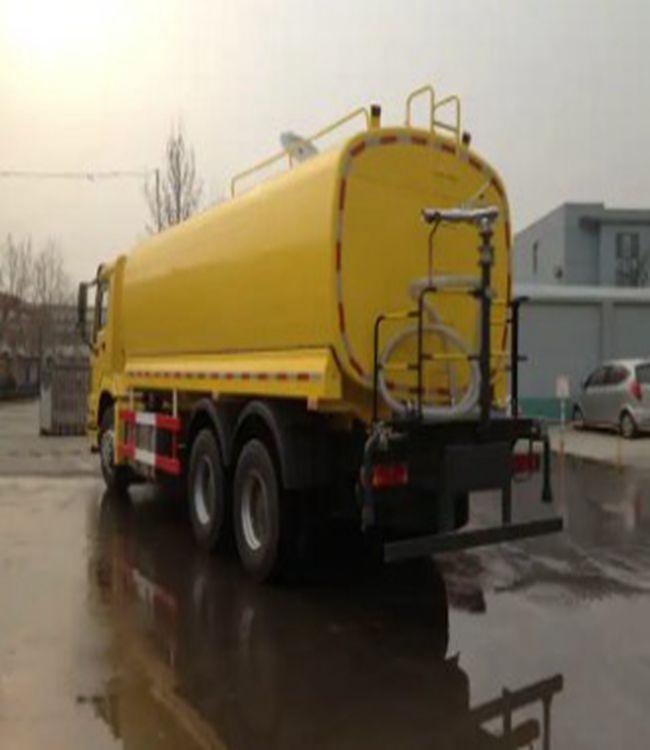

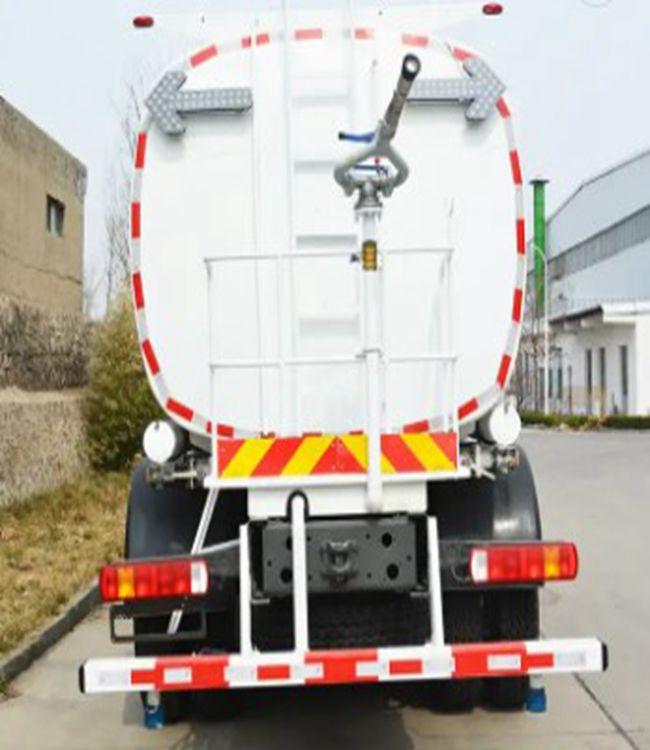

HOWO 8X4 460HP Special Water Tank Trucks 30000L 30000 Liters 25 Ton Sprinkle Water Bowser Truck With Jetting System
HOWO 8X4 460HP 30000L 30000 Liters 25 Ton Special Water Tank Trucks Sprinkle Water Bowser Truck With Jetting Systerm
Product Description
The main functions of the sprinkler truck are :
1. Cooling: When the weather is hot, spraying water on the road surface can reduce the temperature and protect the road surface, as high temperatures can cause the road surface to crack.
2. Dust suppression: When there is a lot of dust on the road surface, sprinkling water can wet the dust and effectively prevent it from being stirred up, thereby reducing air pollution.
3. Horticulture: The shape of the water column from the sprinkler cannon can be adjusted to straight, heavy rain, light rain, or mist, which can water flowers and trees along the road or wash the dust off the trees.
4. Emergency firefighting: The sprinkler truck has a built-in high-pressure water cannon with a range of up to 30-50 meters, Therefore, it can be used for fire extinguishing in an emergency, and its self-assembled fire interface also provides greater convenience for its water intake.
|
Dimension(L×W ×H)(unloaded)(mm)
|
9500×2500×3300 10000x2500x3300 | |
|
Tank Volume (m3)
|
20m³ | |
|
Approaching angle/Departure angle(°)
|
16/15 | |
|
Overhang(front/rear) (mm)
|
1500/2325 | |
|
Wheel base (mm)
|
4325+1350 4600+1350 | |
|
Max speed(km/h)
|
90 | |
|
Curb weight(kg)
|
10870 | |
|
Loading Weight(kg)
|
25000 | |
| Engine (Steyr technology, made in China) |
Model | WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
|
Fuel type
|
Diesel | |
| Power, max(kw/rpm) | 247/2200(336HP) | |
|
Emission
|
EURO 2 | |
|
Fuel tanker capacity (L)
|
400 | |
| Transmission |
Model
|
HW19710,10 forward&2 reverse |
| Brake system |
Service brake
|
Dual circuit compressed air brake |
|
Parking brake
|
spring energy, compressed air operating on rear wheels | |
| Front axle | Steering with double T-cross section beam HF7 Drum | |
| Rear axle |
ST16
|
|
| Tyre |
295/80R22.5,with one spare tire
|
|
| Electrical system |
Battery
|
2X12V/165Ah |
|
Alternator
|
28V-1500kw | |
|
Starter
|
7.5Kw/24V | |
| Cab |
HOWO76 Standard cab, one sleeper, with A/C.
|
|
Produvt details
--- The overflow pipe inside the tank is used to discharge water, can prevent the damage due to long-term overflow. All very high production technology .
