XCMG Wood Steel Grasping Machine Steel grabing machinery hydraulic Excavator
Construction Machinery Lengthen Arm Grasping Wood Machine Grasping Steel Grab With 1BCM Five-Petal Plum Blossom Grab
Product Description:
Adopt straight boom, curved stick structure and five-petal plum blossom grab (or hinge grab)
It has the advantages of reasonable structure, convenient operation, flexibility, safety and reliability, and high efficiency. And from the engine, hydraulic system
The system, operation mode and structure have been comprehensively designed to make it advanced in performance and high reliability of action, and various comprehensive technical performances can meet the needs of users
Brief Introduction:
| Performance parameters | |
| Weight | 48.9T |
| Grab volume | 1CBM |
| Engine | Cummins engine |
| Swing speed | 10.3min-1 |
| Travel speed (high/low) | 5.3/3.1km/h |
| Ground specific pressure | 0.9kg/cm2 |
| Gradeability (%) | 70 |
| Digging force | Standard 267KN |
| Boom length | 6300mm |
| Arm length | 2900mm |
| Working range | |
| Maximum grabbing height | 10230mm |
| Maximum Grab Radius | 13490mm |
| Maximum Ground Grab Radius | 13450mm |
| Maximum grabbing depth | 8350mm |
| Dimensions | |
| Transport size | 13800*3200*3180mm |
| Wheelbase | 4475mm |
| Radius of gyration platform end | 3800mm |
| Counter weight ground clearance | 1460mm |
| Track gauge | 3303/2743mm |
| Total width of undercarriage | 3900mm |
| Width of upper structure | 3340mm |
| Width of track shoe | 600mm |
| Ground clearance | 770mm |
| Cabin height | 845mm |
| Five petal grapple | |
| Grab volume | 1CBM |
| Net weight | 1950kg |
| Maximum opening diameter | 2575mm |
| Maximum working pressure | 28Mpa |

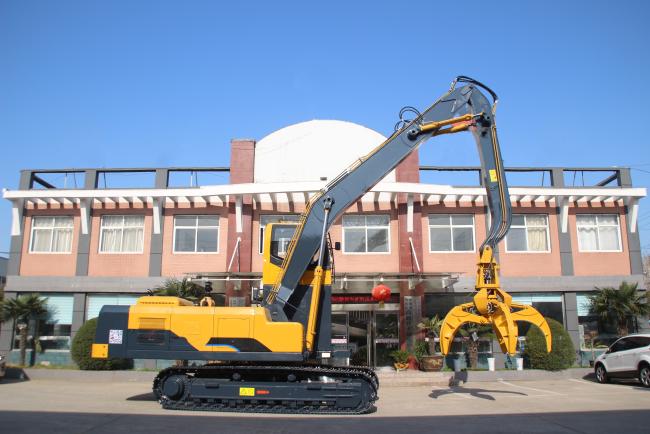

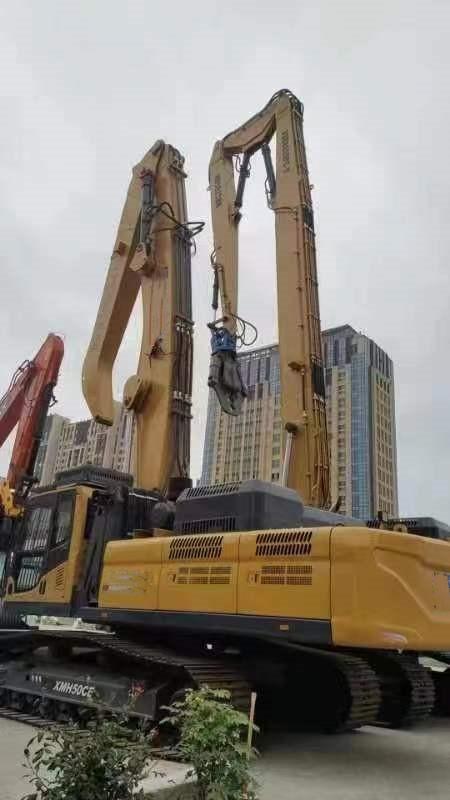

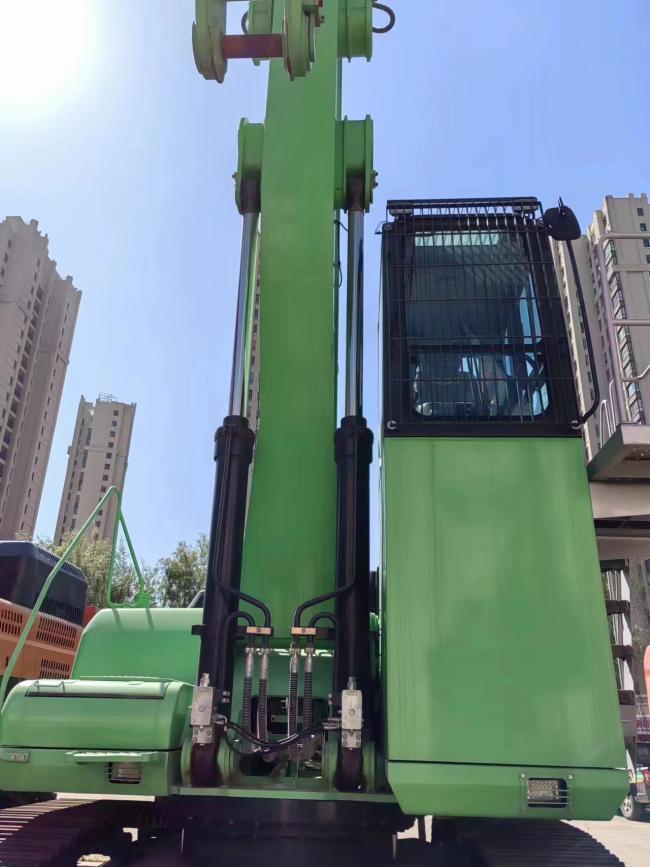

Product Show:
