Shacman 4*2 Heated Asphalt Bitumen Spraying Road Paver Truck Bitumen Sprayer Tanker Truck Asphalt Distributor Truck
Shacman 4*2 Heated Asphalt Bitumen Spraying Road Paver Truck Bitumen Sprayer Tanker Truck Asphalt Distributor Truck
Working principle:
The operating principle of asphalt distributor is to pump the hot asphalt from asphalt storage pool into asphalt tank through asphalt pump.
Transport it to construction site and heats the asphalt up to working temperature by heating system;
Open asphalt pump and spraying valve by operating electrical apparatus control system;
According to three overlapping spraying effect to spray the hot asphalt on pavement on the basis of measured distributing amount and pressure.
The residual asphalt in pipeline will be transported into asphalt tank after finishing the work.
Product parameters:
| Product Name | Automatic Asphalt Distributor |
| Product Model | SHIM5000GLQ |
| Internal Model | SHIMLS0445 |
| Chassis Model | ZZ1107G421CE199 |
| Chassis Trademarks | HOWO/Shacman/Dongfeng/FAW |
| Chassis Name | M5G |
| Engine Model | ISF3.8s5154 |
| Engine Power | 115kw/154hp |
| Emission standard | EURO V |
| Wheelbase | 3800mm |
| Total weight | 16000kg |
| Auxiliary Engine | 4TE35A-39A |
| Auxiliary Engine Power | 26kw/35hp |
| Asphalt tank volume | 4000L |
| Spray width | 6500mm |
| Spray volume | 0.2-3kg/m2 |
| Spray precision | 1% |
| Spray media | modified asphalt, hot asphalt, emulsified asphalt |
| Asphalt heating mode | Imported diesel oil |
| Asphalt heating speed | ≥12℃/h |
| Overall dimension | 10740×2496×3820mm |

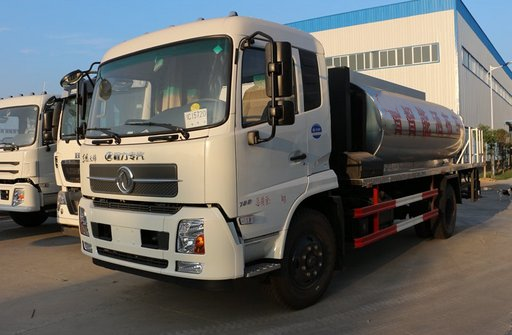

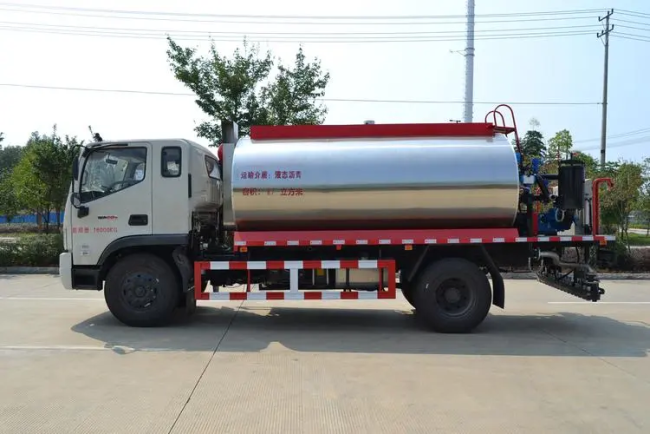

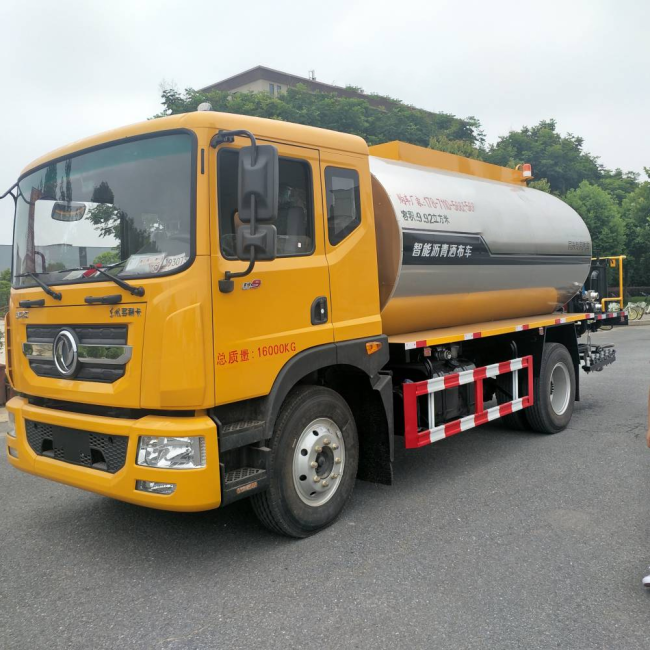

Product Show:
