Single Steel Road Roller XCMG XS203J 20T Fully Hydraulic Vibratory Roller
XCMG Single Steel Road Roller XS203J 20T Fully Hydraulic Vibratory Roller
Product Advantage:
XCMG road roller machine XS203 self-propelled is a super-heavy-duty vibratory road roller is mainly applicable for compacting the base and sub-base layers and landfill of various materials.And XCMG road roller machine XS203 is an ideal compacting machine for high-grade roads, airports, ports, dams, and industrial construction sites.
XCMG road roller machine XS203 adopts high power engine and slip-resistant hydraulic drive system to better meet the construction needs in diversified regions.
Performance Characteristics:
1. XCMG road roller machine XS203's equipped with Shangchai Chinese-Ill water-cooled engine, featuring high power reserve, low fuel consumption, and low noise.
2. The four-speed continuously variable transmission guarantees the working at most appropriate speed under diversified working conditions.
3. The home-made heavy-duty drive axle is applied, With anti-skid differential.
4. Avoid the impact on the compacted material, and promote the compacting uniformity.
5. Application of long-life vibrating drum design technology and extreme uniform pressure technology.
|
Item
|
Unit
|
XS203
|
|
Operating mass
|
kg
|
20000
|
|
Distributed mass of driving wheel
|
kg
|
13500
|
|
Distributed mass of vibration wheel
|
kg
|
6500
|
|
Static line load
|
N/cm
|
621
|
|
Vibration frequency
|
Hz
|
28/33
|
|
Theoretical amplitude
|
mm
|
1.86/0.93
|
|
Exciting force
|
kN
|
370/255
|
|
Speed range
|
km/h
|
0-10.4
|
|
Wheel base
|
mm
|
3310
|
|
Compaction width
|
mm
|
2130
|
|
Theoretical gradeability
|
%
|
50
|
|
Minimum turn radius
|
mm
|
6500
|
|
Drum diameter
|
mm
|
1600
|
|
Minimum ground clearance
|
mm
|
466
|
|
Engine Rated speed
|
r/min
|
2000
|
|
Engine Rated power
|
kW
|
140
|
|
Overall dimension (length*width*height)
|
mm
|
6781*2390*3200
|

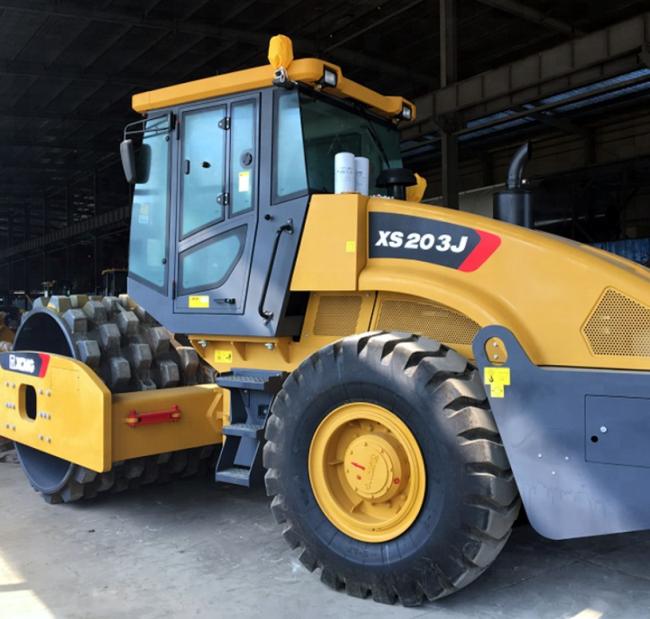

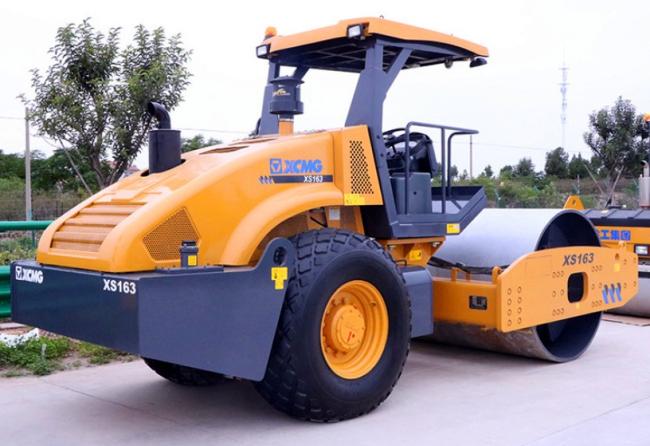

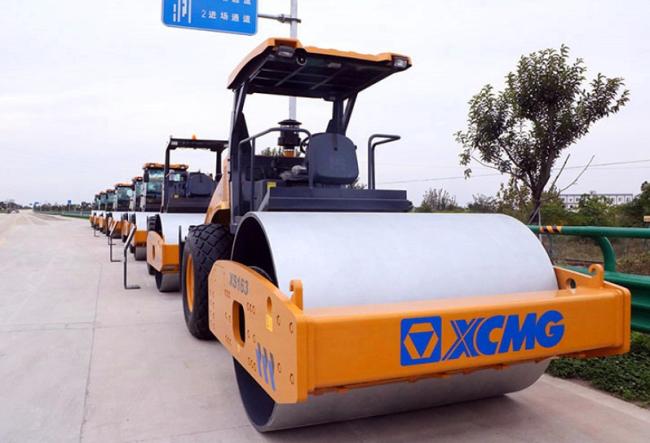

Product Show:
