12 Tyre Sinotruk HOWO 6x4 Asphalt Slurry Sealer Slurry Seal Truck With 16m3 Gravel Tank Sealer For Road Maintenance
12 Tyre Sinotruk HOWO 6x4 Asphalt Slurry Sealer Slurry Seal Truck With 16m3 Gravel Tank Sealer For Road Maintenance
Advantage:
* Equipped with manual and automatic working mode, intelligent control, one key discharge, real-time display of working parameters, with a lack of material alarm function.
* Large storage capacity, full capacity of aggregate silo is 12m³, asphalt tank and water tank are 4000L each. High construction efficiency.
* 300L environmental engineering plastic additives tank, constant gear pump, stable conveying, accurate measurement, high precision.
* Large capacity double shaft horizontal mixer realizes high slurry productivity and mixes evenly without dead angle with replaceable wear-resistant blade and long service life.
* The hydraulic telescopic paving box has secondary scraping function. It produces high pavement flatness after paving. Rut paving box optional.
| Model | SHIM5255TFC |
|
Dimension(mm)
|
11200×2500×3400
|
|
Chassis model
|
HOWO 6X4, LHD
|
| GVW (kg) | 25000 |
|
Engine
|
D10.34-50, 340HP,Euro4
|
|
Tank and hopper
|
|
|
Aggregate hopper
|
10 m³
|
|
Max. Load capacity
|
12 m³
|
|
Emulsion asphalt tank
|
3500L
|
|
Water tank
|
3500L
|
|
Addictive tank
|
400L
|
|
Fine material hopper
|
2x0.5 m³
|
|
Max. mixer capacity
|
3500kg/min
|
| Tyre | 11.00R20 |

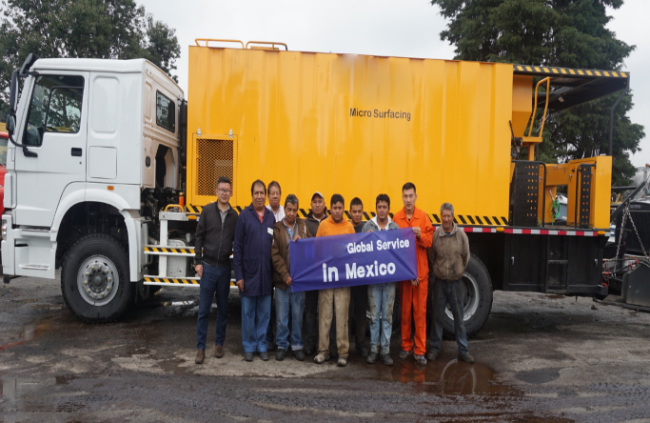

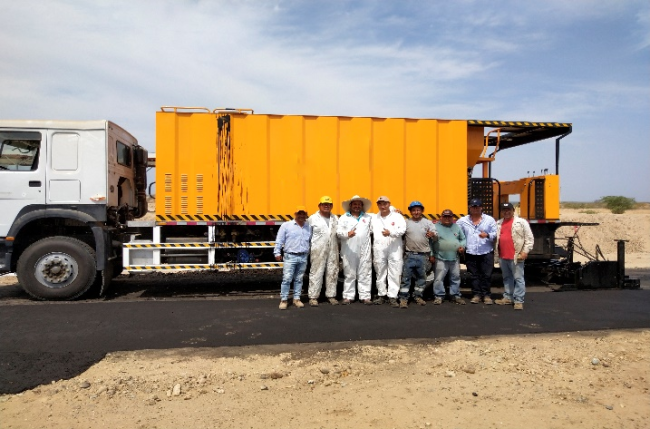

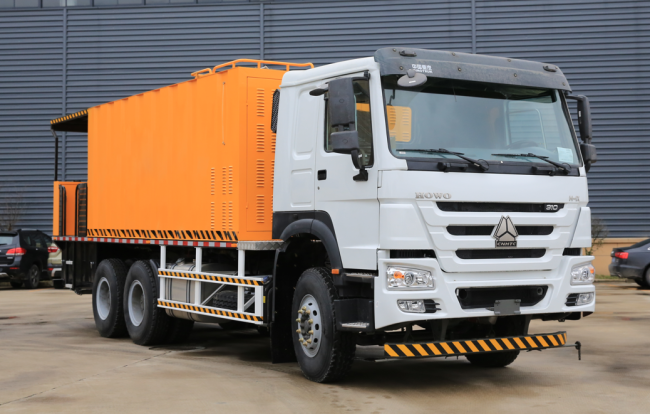

Product Show:
