Sinotruk 2-4cbm High Pressure Washing Vacuum Sewer Cleaner Flushing Vehicle Sewage Suction Tank Fecal Sludge Truck
Price:
Negotiation
MOQ:
1 Piece
Delivery Time:
Full payment 15-20 work days
Brand:
SINOTRUK
Product Description
Sinotruk 2-4cbm High Pressure Washing Vacuum Sewer Cleaner Flushing Vehicle Sewage Suction Tank Fecal Sludge Truck
Vacuum sewage suction truck is used for removing and transporting sand, stones, grease, sludge and other debris from sewage pipelines and / or sanitary sewer by vacuum suction pump.
It also could provide efficient solution to industrial vacuum requirement . Hydraulic system and pneumatic components could be added to fulfill the requirements of specific operations.
Product Parameter
| Vehicle Description | |
| Overall dimensions | 8800*2500*3200mm |
| GVW | 18000kg |
| Curb weight | 7000kg |
| Chassis brand | DONGFENG |
| Traction type |
4*2 |
| Tanker Description | ||
| Tanker | Capacity | 10000L |
| Material | 6mm thickness, high quality carbon steel | |
| Structure | Welding, vacuum tank, Cylindrical | |
| Type | Double vacuum pump | |
| Flux | 68(L/S) | |
| Rating speed | 800~1000(r/min) | |
| Shaft power | 5(kw) | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
| Manufacture | Hangzhou WEILONG Pump Co., Ltd. | |
| Pipe | Suction and discharge pipe | |
| Special function | Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45 |
|
| Standard configuration | Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
| Optional configuration | Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank |
|
| Chassis Description | ||
| Chassis model | DFL5140 | |
| Steering | LHD/RHD | |
| Cab | Kingrun one and a half row cab , with A/C | |
| Wheelbase | 5000mm | |
| Tire specification | 10.00R20 | |
| Tire quantity | 6 tires and 1 spare tire | |
| Engine | Engine model | Dongfeng Cummins, B190 33 |
| Emission level | EURO 2 | |
| Displacement/output | 5900ml/140kw | |
| Horse power | 190hp | |
| Gear box | Model | DF8S1000 |
| Number of gears | 8-speed | |
| Brake system | Air break | |
| Axle | Front | 6T |
| Rear | 10T | |
| Suspension | Front | 8 |
| Rear | 12+9 | |
| Fuel tanker | Type | Steel fuel tank |
| Capacity | 160L | |

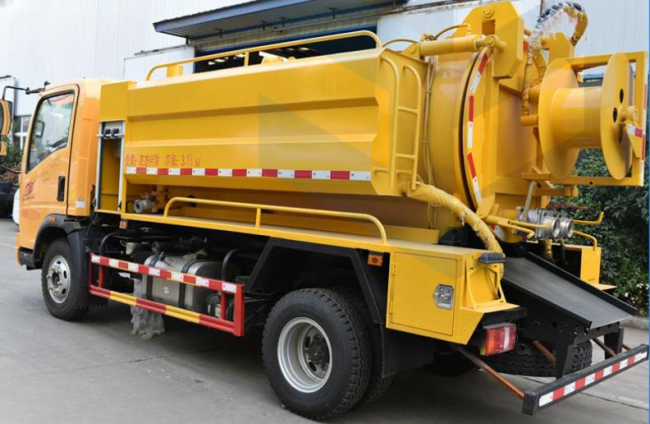

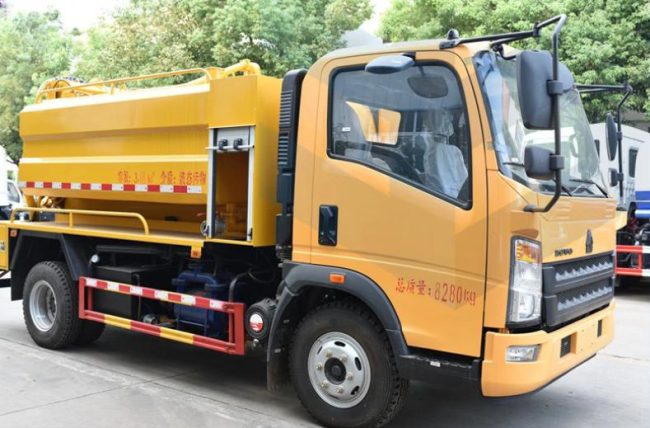

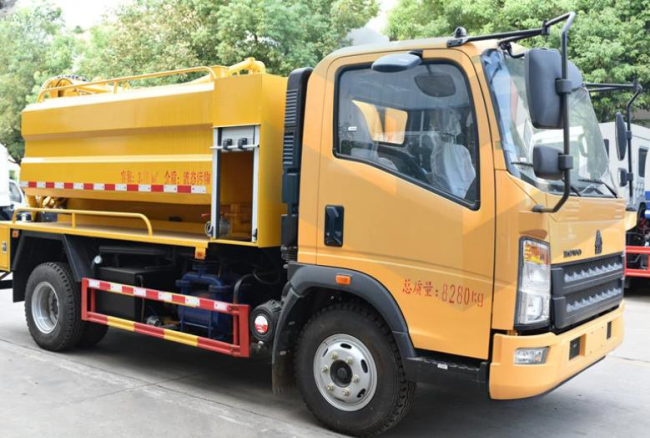

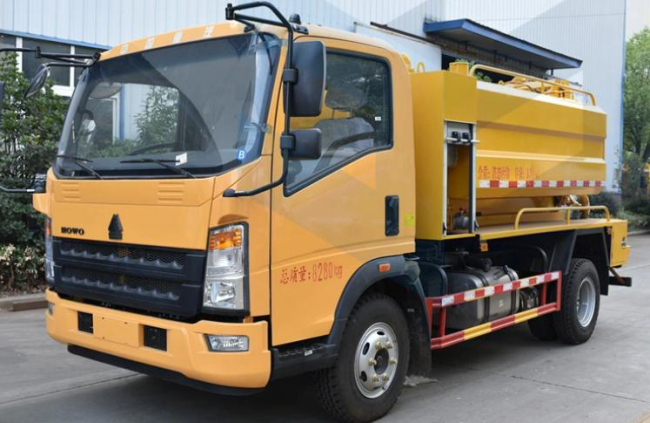

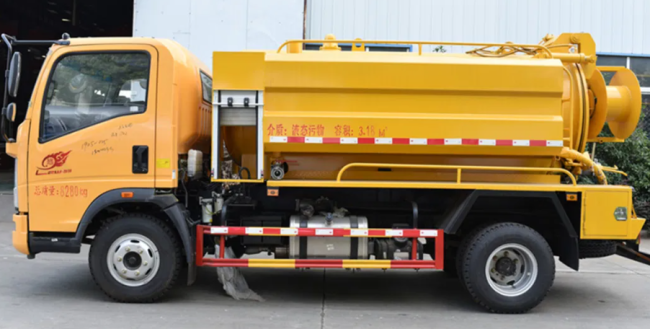

Detailed Photos
