2024 Foton 6x4 Diesel 10 Wheel Dump Truck Factory New Heavy Truck For Sale
2024 Foton 6x4 Diesel 10 Wheel Dump Truck Factory New Heavy Truck For Sale
Product Advantages
AUMAN GTL has been certified to high strength body collision prevention by the Germany Rhine company and surpassed 10 million- kilometers road verification, delivering greater safety and reliability. In particular, its Cummins engine adopt modular design to reduce the failure rate, and the 16T rear axle with Mercedes- Benz technology has made its load capacity increased by 40% as compared to the previous 13T rear axle.
Product Parameter
Vehicle model | BJ3259DMPJB-A3 |
Cabin | GTL-2490 |
Dimensions | 8175×2550×3580mm |
Driving type | 6×4 |
Wheel base | 3825+1350mm |
Chassis weight | 10270kg |
Engine | ISGE3-350 |
Fuel form | Diesel |
Emission | Euro3 |
Displacement | 10.5L |
Rated Powe | 80kw/ HP |
Max torque | 1800/ 1000- 1300Nm/ rpm |
Gearbox | HW19710 |
Clutch | Φ 430Pull type |
Front axle | 7.5T Drum brake |
Rear axle | 16T Benz/ 5.26 Drum brake |
Steering gear | AM90L- S |
Braking system | Dual circuit air brake |
Fuel tank | 350L Aluminum |
Battery | 165Ah battery |

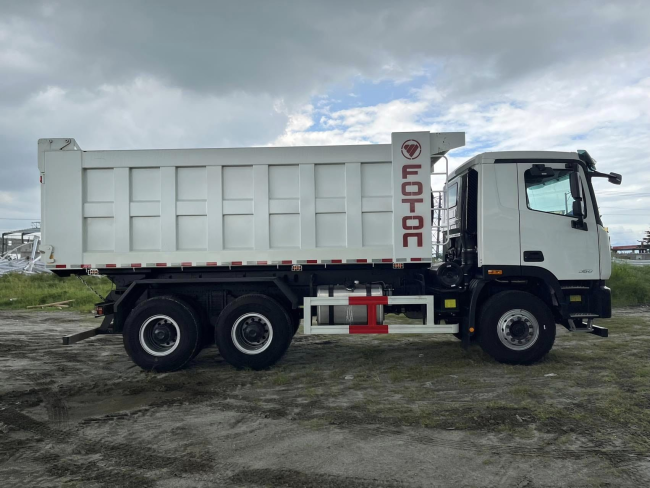

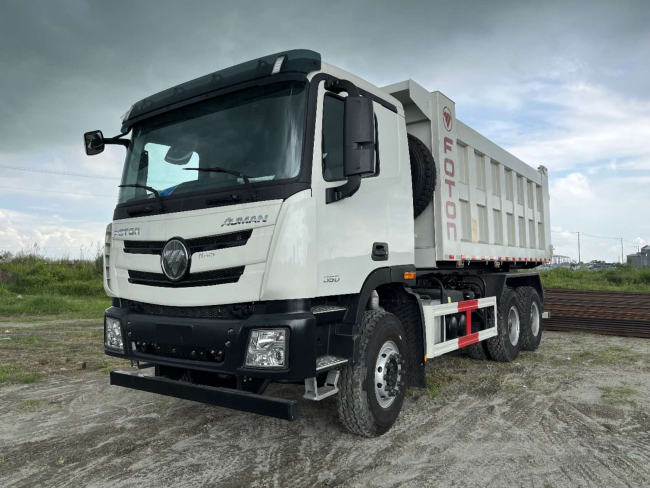

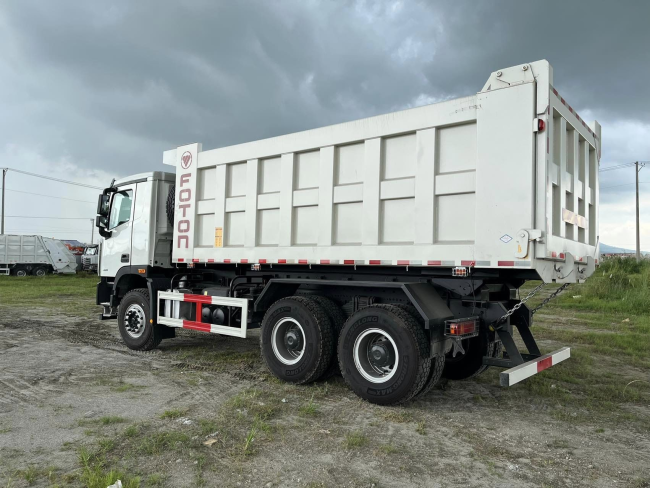

Product Photo
