C4 2.4610 Hastelloy c4 Alloy Sheet For Wet Chlorine Hypochlorous Acid
KX Hastelloy C-4 Welding Wire Sheet Pipe Tubing Plate on Hastelloy Alloy
Product Description and Application
HastelloyC-4 is also known as NS335 (China),.2.4610, NiMo16Cr16Ti(Germany), hastelloyc-4, UNS N06455(USA), NiMo16Cr16Ti(ISO)
HastelloyC-4 has excellent corrosion resistance to most corrosive medium, especially in the reduced state. Excellent resistance to local corrosion in halides has been widely used in most chemical industry and high temperature environment. Typical application areas are flue gas desulfurization system, pickling and acid recycling plants, acetic acid and agricultural chemicals production, titanium dioxide production (chlorine process), electrolytic plating.
Process Performance and Requirements
- Product Fusion Process
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
- Product Chemical Composition
| Ni | Cr | Fe | C | Mn | Si | Mo | Co | Ti | P | S | |
| Min | Rem | 14.5 | 14.0 | 0.01 | |||||||
| Max | 17.5 | 3.0 | 0.009 | 1.0 | 0.05 | 17.0 | 2.0 | 0.7 | 0.02 |
- Product Physical Property
| Density | 8.64g/cm3 |
| Melting point | 1399℃ |
| Magnetic Property | Nil |
- Productive Process
-
Professional Customization

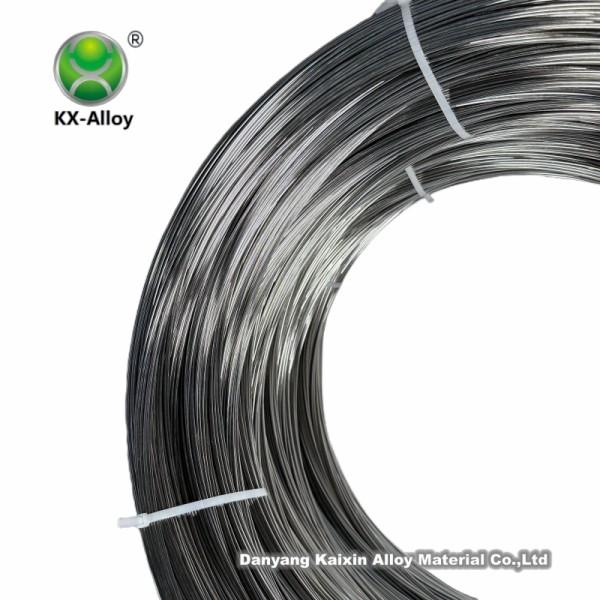

| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
