Oxidation Resistance 686 Inconel Alloy Bar Tube Sheet Nickel Chromium Resistance Wire
KX Inconel 686 Nickel Alloy Wire Round Bar Tube Steel Sheet Light Rod on Inconel Alloy
Product Description and Application
Inconel 686 is also known as UNS N06686, W.N.2.4606
Inconel 686 is a single-phase austenitic Ni-Cr-Mo-W alloy with excellent corrosion resistance and reduction resistance in a range of harsh environments. Oxidizing medium that helps resist local corrosion,such as pitting. It can be made into pipes and storage tanks, reactors and heat exchangers, as well as offshore oil well production equipment.
Process Performance and Requirements
- Product Fusion Process
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
- Product Chemical Composition
| Cr | Mo | W | Ti | Fe | C | Mn | S | Si | P | Ni |
| 19-23 | 15-17 | 3.0-4.4 | 0.02-0.25 | ≤1.0 | ≤0.01 | ≤0.75 | ≤0.02 | ≤0.08 | ≤0.04 | Rem |
- Product Physical Property
| Density | 8.4g /cm³ |
| Melting Point |
1370-1420℃ |
- Product Mechanical Property
| Tensile Strength | 550 MPa |
|
Yield Strength (0.2% Offset Yield Point) |
240 MPa |
| Elongation | 35% |
- Productive Process
-
Professional Customization

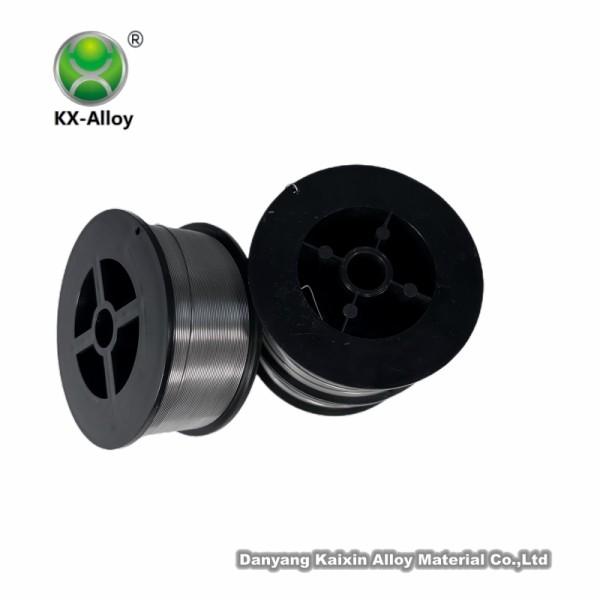

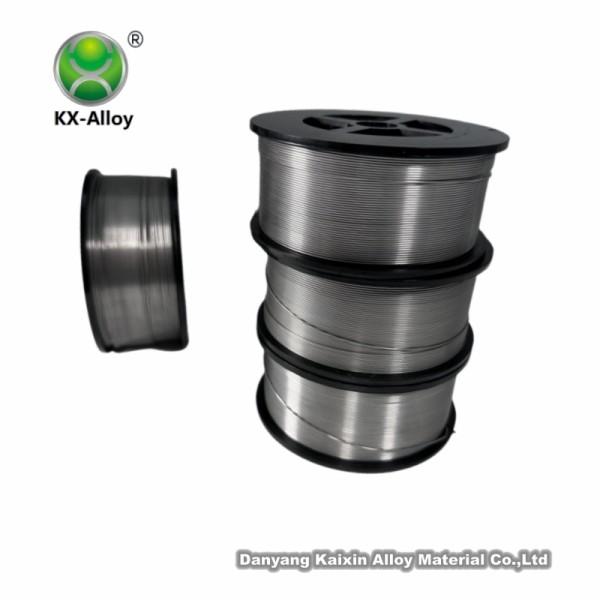

| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

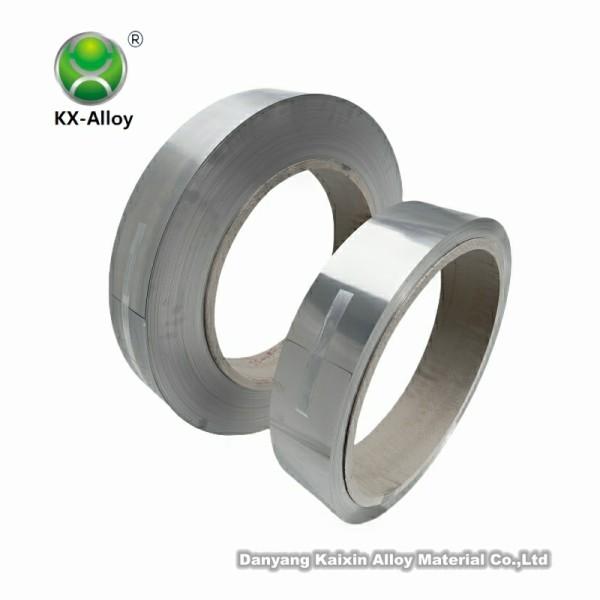

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |

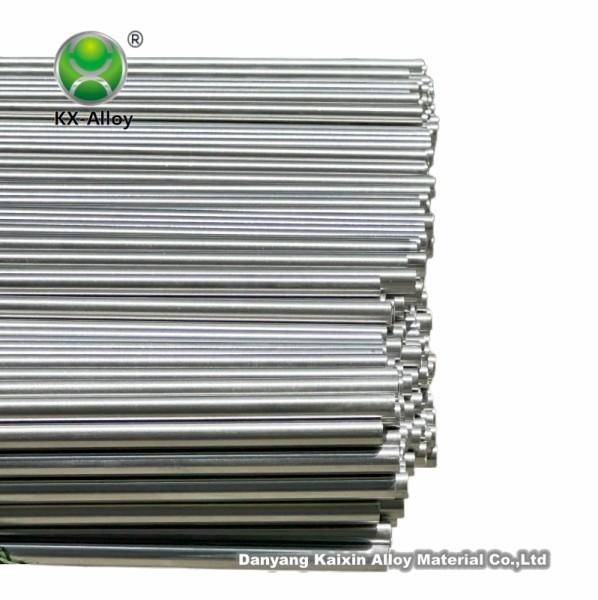

| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |

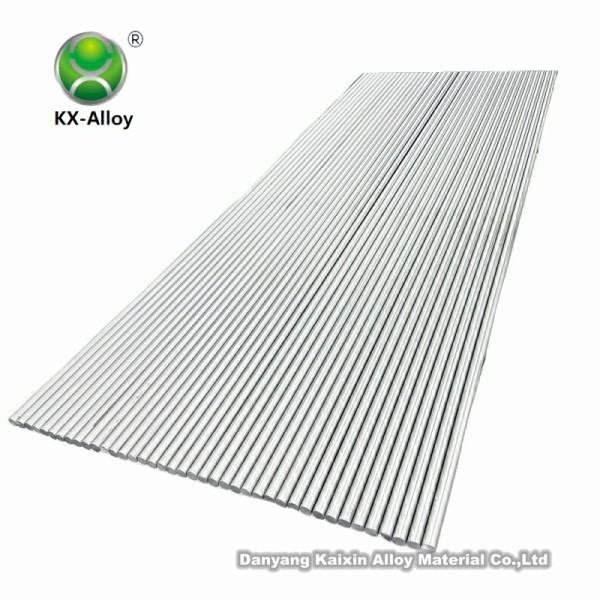

| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
