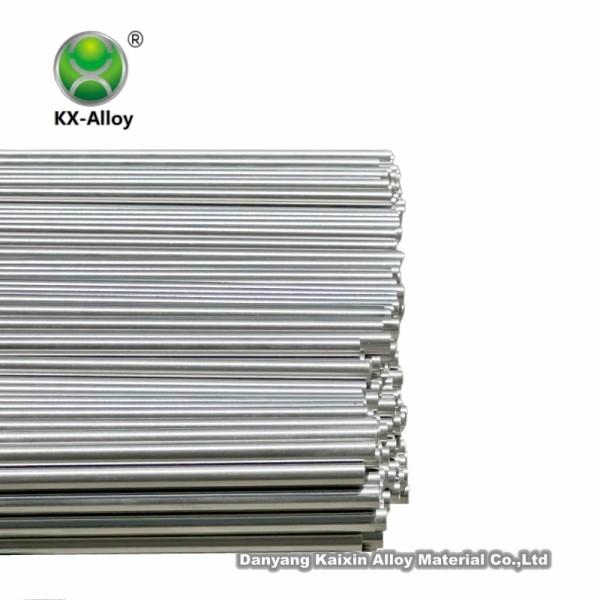

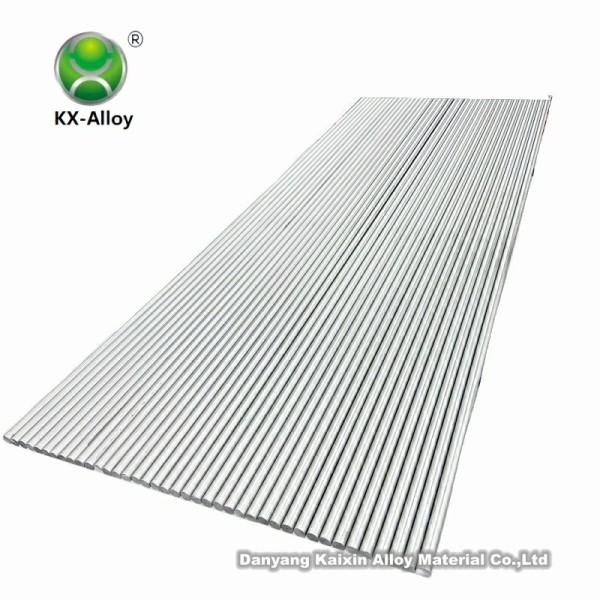

Corrosion Resistance Inconel 690 Nickel Chrome Resistance Wire Inconel Bar / Tube / Sheet
KX Inconel 690 Nickel Alloy Wire Round Bar Tube Steel Sheet Light Rod on Inconel Alloy
Product Description and Application
Inconel 690 is also knows as UNS N06690, W.N.2.4642, ISO NW6690
Inconel 690 is a high chromel-nickel alloy with excellent corrosion resistance to many corrosive water medium and high temperature atmospheres. In addition to corrosion resistance, it also has high strength, good metallurgical stability, good processing performance and etc characteristics. The high chromium content makes the alloy excellent resistance to oxidizing chemicals and high temperature oxidizing gases. The high nickel content gives resistance to stress corrosion cracking in chlorinated environments and in sodium hydroxide solutions. Properties suitable for various applications of nitric acid or nitric acid/hydrofluoric acid solutions. For example, tail gas reheaters for nitric acid production and heating, nitric acid/hydrofluoric acid solution heating coils and tanks for pickling stainless steel and nuclear fuel reprocessing. The alloy resistance to sulfur-containing gases makes them attractive materials for radioactive waste disposal such as coal gasification units, burners and for sulfuric acid conduits treatment, furnace petrochemical processing, co-flow heat exchangers, incinerators and glass vitrification equipment.
Process Performance and Requirements
- Product Fusion Process
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
- Product Chemical Composition
| Ni | Cr | Fe | C | Al | Ti | Mn | Si | Cu | P | S |
| Rem | 30.39 | 8.88 | 0.023 | 0.22 | 0.26 | 0.23 | 0.07 | 0.02 | 0.006 | 0.002 |
- Product Physical Property
| Density | Melting Point |
| 8.19g/cm3 | 1343-1377℃ |
- Product Mechanical Property
|
Diameter/Thickness d/t mm |
Hot Treatment or State |
Tensile Strength MPa |
Yield Point MPa |
Elongation after breaking % |
| t=3.81(strip,cold rolled) | 1040℃ Annealing | 724 | 348 | 41 |
| d=16(bar, hot rolled) | 1040℃ Annealing | 738 | 372 | 44 |
| d=51(bar, hot rolled) | 1040℃ Annealing | 690 | 334 | 50 |
| d=12.7(pipe,cold drawing) | 1040℃ Annealing | 758 | 461 | 39 |
| d=19(pipe,cold drawing) | 1040℃ Annealing | 700 | 379 | 46 |
| d=88.9(pipe, cold drawing) | 1040℃ Annealing | 648 | 282 | 52 |
- Productive Process
-
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
