ASTM Inconel Alloy 718 Round Bar 718 Inconel Sheet Nickel Based Superalloy Nickel Alloy Wire
KX Inconel 718 Plus Nickel Alloy Wire Round Bar Tube Steel Sheet Light Rod On Inconel Alloy
Product Description and Application
Inconel718 plus is a new type of nickel-based precipitation-hardened alloy, which is widely concerned at home and abroad because of its excellent comprehensive mechanical properties below 700°C, good thermal working and welding properties, suitable cost. At present, this material has been promoted and applied in several well-known aero-engine companies, which are used in disc parts, brakes, fasteners, blades and etc. In addition, Inconel718 Plus is also commonly used in copper extrusion mold.
Process Performance and Requirements
- Product Fusion Process
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
- Product Chemical Composition
| Element | C | Ni | Cr | Mo | W | Co | Fe | Nb | Ti | Al | P | B |
| Inconel718 plus | 0.02 | Rem | 18 | 2.75 | 1 | 9 | 10 | 5.45 | 0.7 | 1.45 | 0.01 | 0.004 |
- Product Physical Property
| Density | 8.25g/cm3 |
| Melting Temperature Range | 1260～1340℃ |
- Product Mechanical Property
Hardness:
The hardness is about 20-30HRC after solid solution heat treatment and about 38-45HRC after annealing
- Productive Process
-
Professional Customization

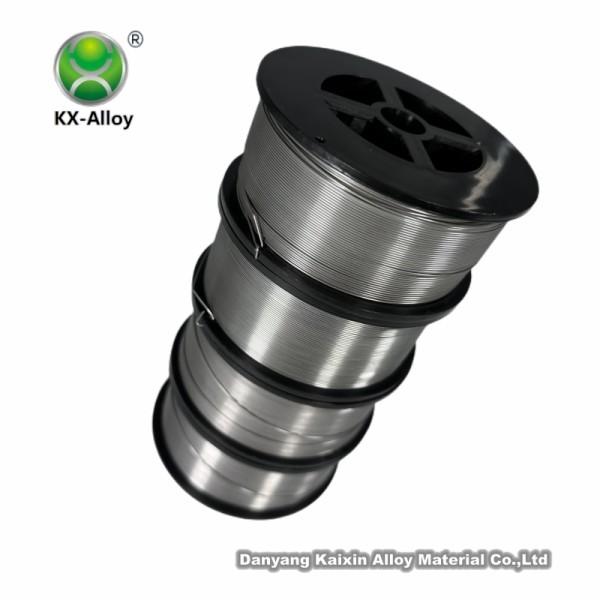

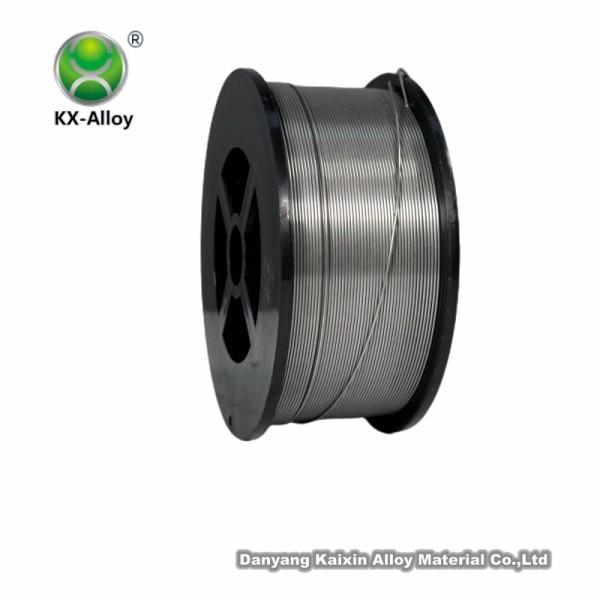

| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

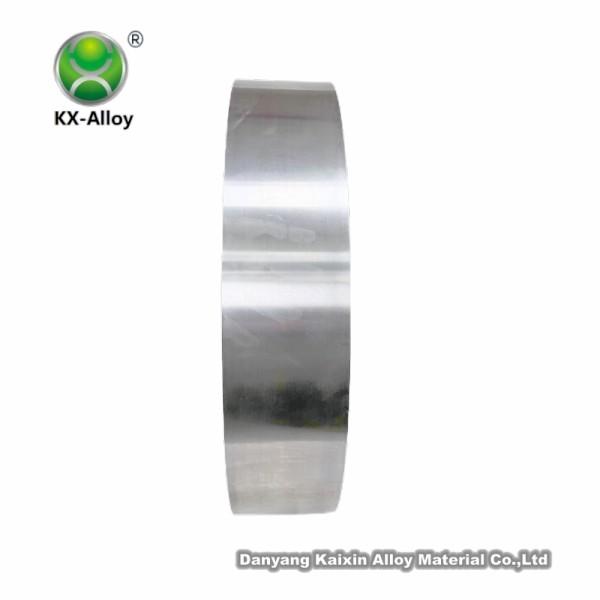

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |

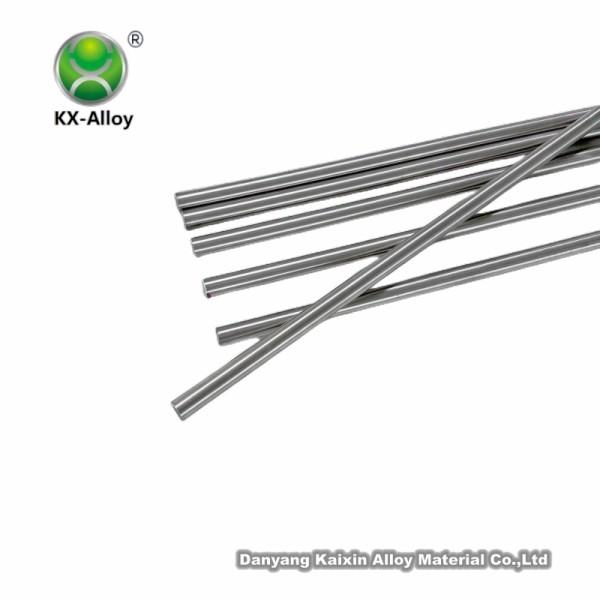

| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
