404 Monel Alloy Sheet Welding Wire Strip Ni Cu Alloy Round Bar Rod
KX Monel 404 Sheet Welding Wire Strip Round Bar Light Rod Process Performance On Monel Alloy
Product Description and Application
Monel 404 is also known as UNS N04404
Monel 404 alloy is a single-phase solid solution Ni-Cu alloy, which has good corrosion resistance in many medium. From mild oxidizing medium environment to neutral environment,or to suitable reducing environment, that has good corrosion resistance, mainly used in chemistry and petrochemical industry, Marine development and etc fields. It can be used to manufacture all kinds of heat exchange equipment, boiler feed water heaters, petroleum and chemical pipelines, containers, towers, tanks, valves, pumps, reaction kettle, shaft and etc.
Process Performance and Requirements
- Product Fusion Process
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
- Product Chemical Composition
| % | Ni | Cu | Fe | C | Mn | Si | S |
| Min | 52.0 | Rem | |||||
| Max | 57.0 | 0.50 | 0.15 | 0.10 | 0.10 | 0.024 | 0.05 |
- Product Physical Property
| Density | 8.91g/cm3 |
| Melting Point | 1300-1350℃ |
- Product Mechanical Property
| Product Category | Heat Treatment or State |
Tensile Strength MPa |
Yield Point MPa |
Elongation after breaking % |
| Monel 404 |
Cold Drawing and Annealing Annealed at 760℃(1400°F)/1h |
≧ 468 | ≧ 172 | ≧ 50 |
- Product Executive Standard
ASTM B 164 (Rod, Wire), ASTM B 564 (forgings), ASTM B 127 (plate, strip), ASTM B 165 (Seamless pipe).
- Productive Process
-
Professional Customization

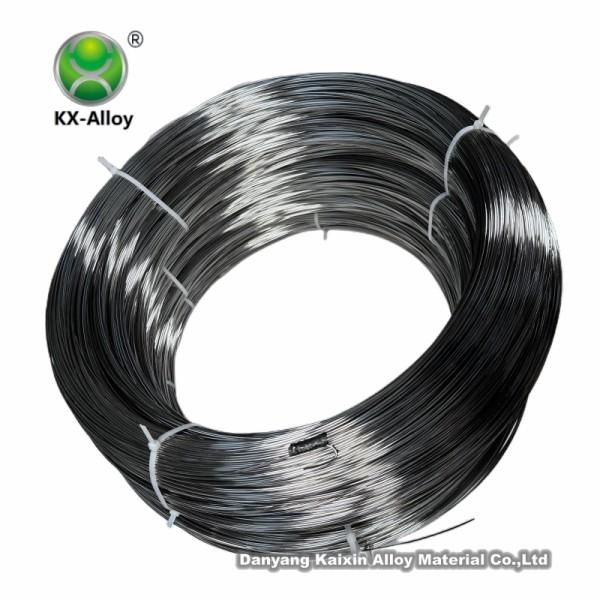

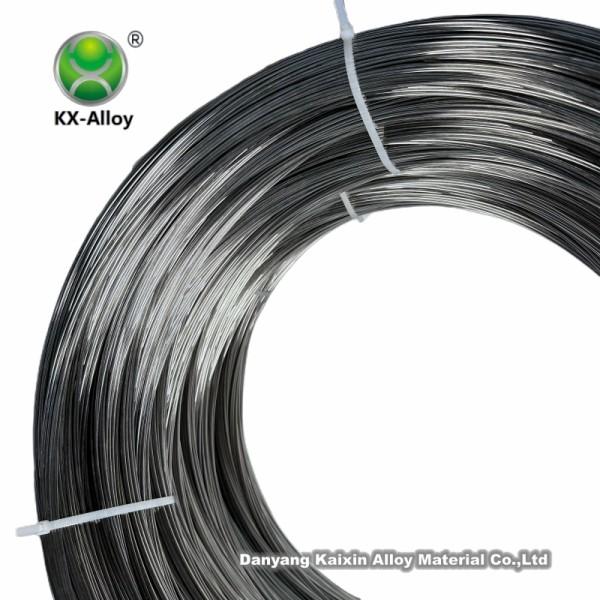

| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

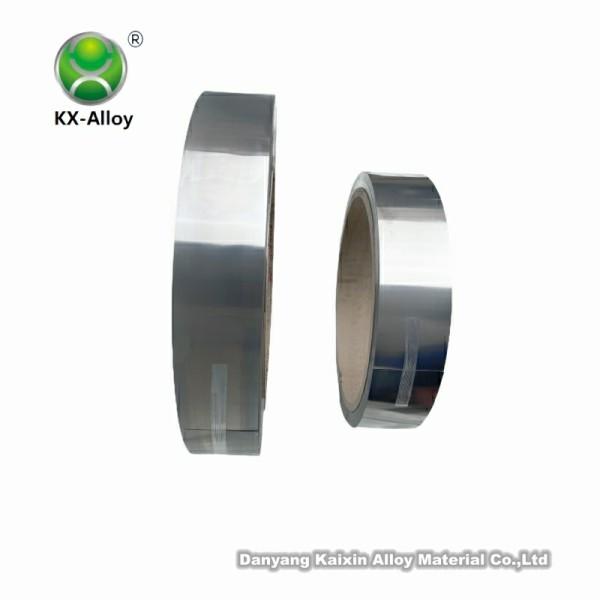

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |

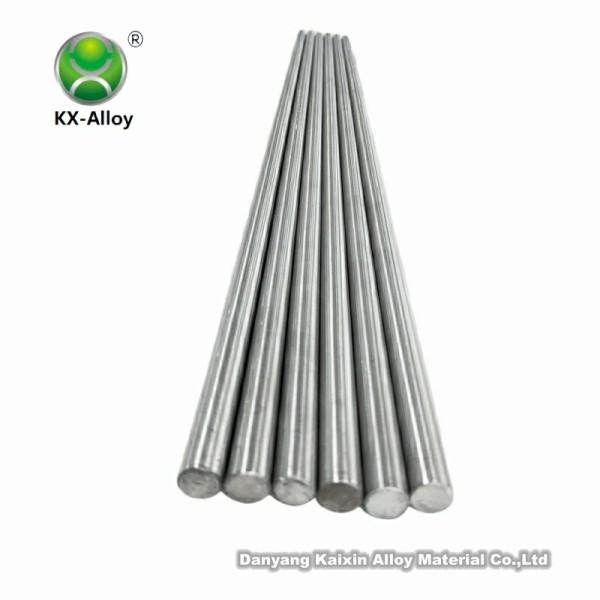

| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm
|
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |

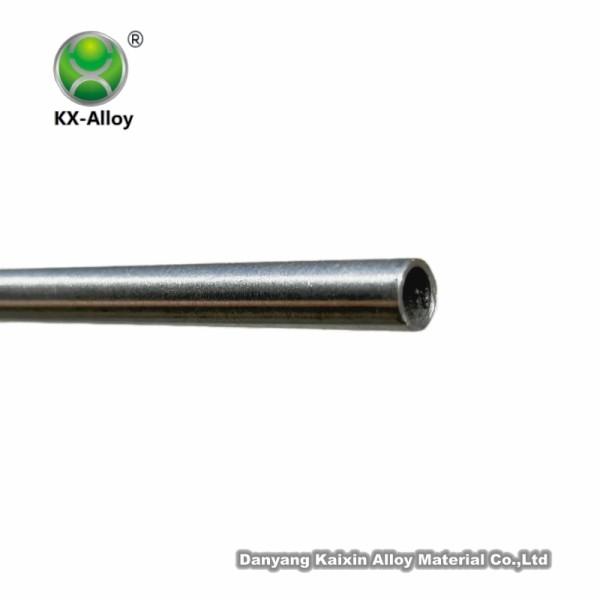

| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
