Ferronickel Alloy 46 Soft Magnetic Material Soft Iron Rod
Price:
To negotiate
MOQ:
200KG
Delivery Time:
45~60days
Brand:
KAIXIN
Product Description
KX Alloy46 Soft Magnetic Materials Soft Iron Light Rod On Soft Magnetic Alloy
Product Description and Application
Alloy46 is also known as 1J46, 45 Osan (Russia), Ni46
Alloy46 is a 45-46.5% Fe-Ni alloy with higher saturation magnetic induction and permeability. It is used in various transformers, relays and electromagnetic clutch cores in medium magnetic fields.
Process Performance and Requirements
- Product Fusion Process
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
- Product Chemical Composition
| Grade | C | P | S | Mn | Si | Al | Cu | Ni | Fe |
| Not more than | |||||||||
| Alloy46 | 0.03 | 0.02 | 0.02 | 0.6-1.10 | 0.15-0.30 | - | ≤0.20 | 45-46.5 | Rem |
- Product Mechanical Property
| Grade | Resistivity ／(μΩ•m ) |
Density ／(g／ cm3) |
Curie Point ／℃ |
Saturation Magnetostriction Coefficient (×10-2) |
Brinell Hardness HBS |
Tensile Strength MPa |
Yield Strength MPa |
Elongation | ||||
| (％) | ||||||||||||
| Cold Hard State | Soft State | Cold Hard state | Soft State | Cold Hard state | Soft State | Cold Hard State | Soft State | |||||
|
Alloy46
|
0.45 | 8.2 | 450 | 25 | 170 | 130 | 735 | - | 735 | - | 3 | - |
- Productive Process
-
Professional Customization

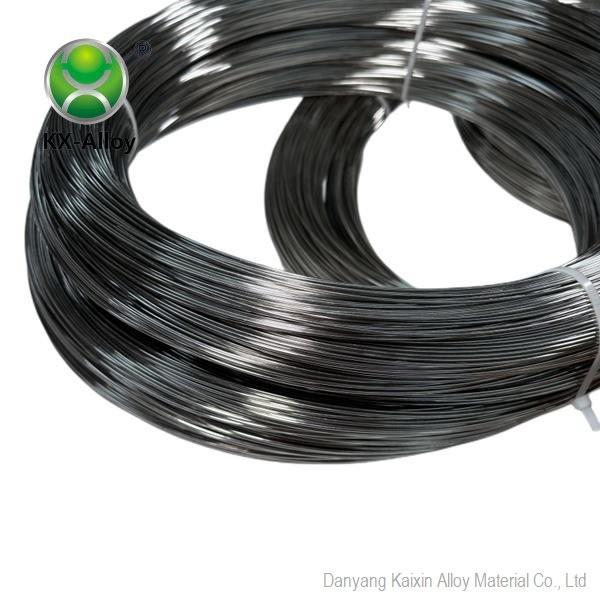

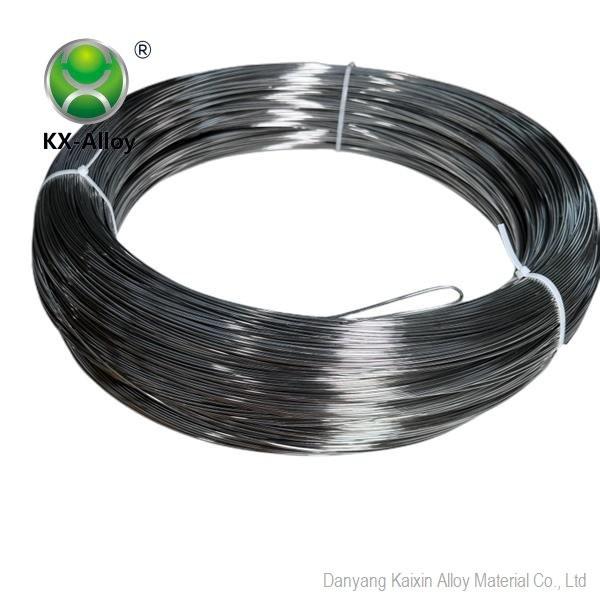

| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

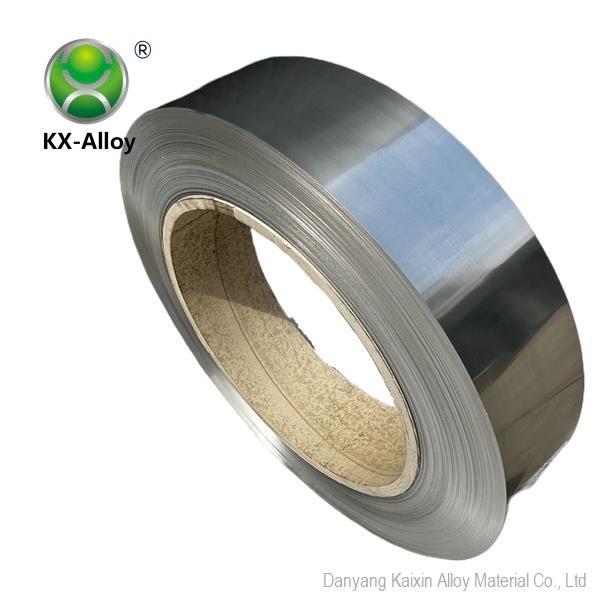

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
