KX UNS NO6002 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy
Product Description and Application
UNS NO6002 is also known as NC22FeD, NiCr22FeMo, Nimonic PE13
UNS NO6002,GH3536 has good oxidation resistance, reducibility and neutral environment ability, which is suitable for furnaces and jet engines, that operation up to 1200℃. The alloy forms a protective and tough oxide film that will not fall off and then it maintains oxidation resistance at high temperature
Process Performance and Requirements
- Product Fusion Process
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
- Product Chemical Composition
| Ni | Cr | Fe | C | Mn | Si | Mo | Co | Al | W | B | P | S | |
| Min | 20.5 | 17.0 | 0.05 | 8.0 | 0.5 | 0.2 | |||||||
| Max | Rem | 23.5 | 20.0 | 0.15 | 1.0 | 1.0 | 10.0 | 2.5 | 0.1 | 1.0 | 0.005 | 0.015 | 0.01 |
- Product Physical Property
| Density | 8.3g/cm3 |
| Melting Point | 1260-1355℃ |
- Product Welding Process
Various welding processes can be used for welding, such as tungsten electrode inert gas welding, plasma arc welding, manual subarc welding, metal inert gas welding, melting inert gas welding. Impulse arc welding is preferred.
- Productive Process
-
Professional Customization

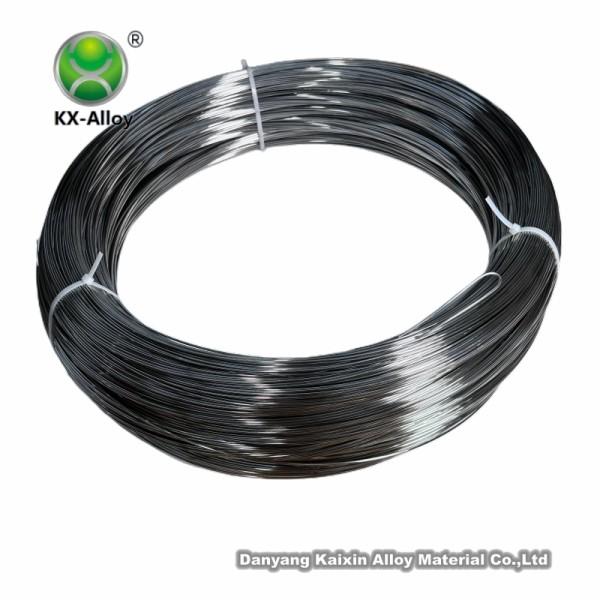

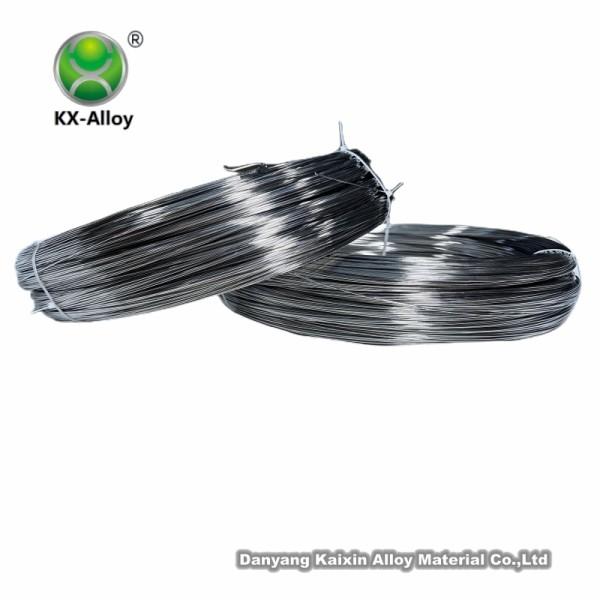

| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

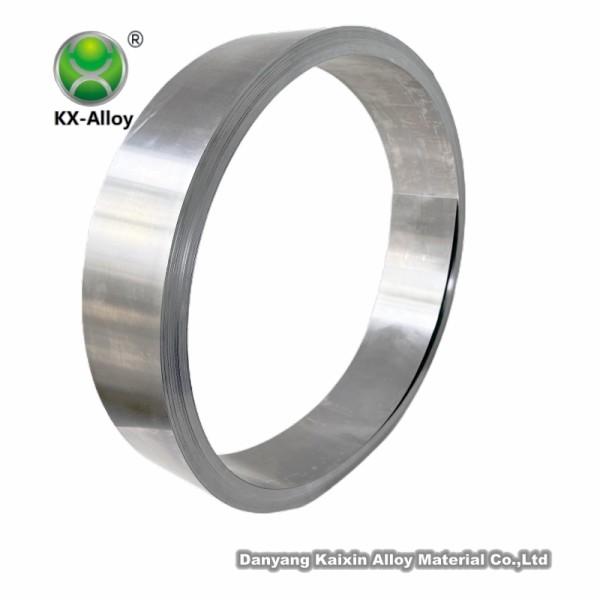

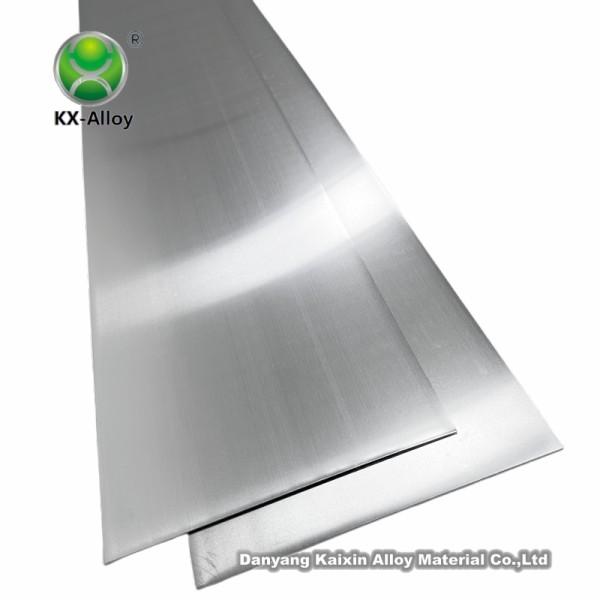

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |

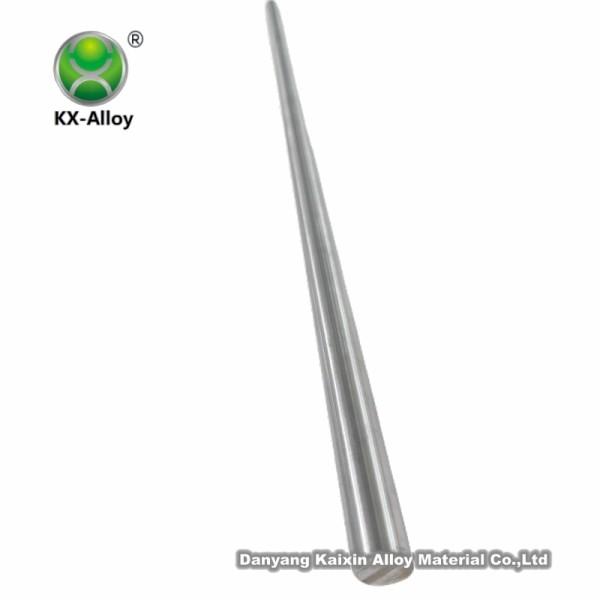

| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |

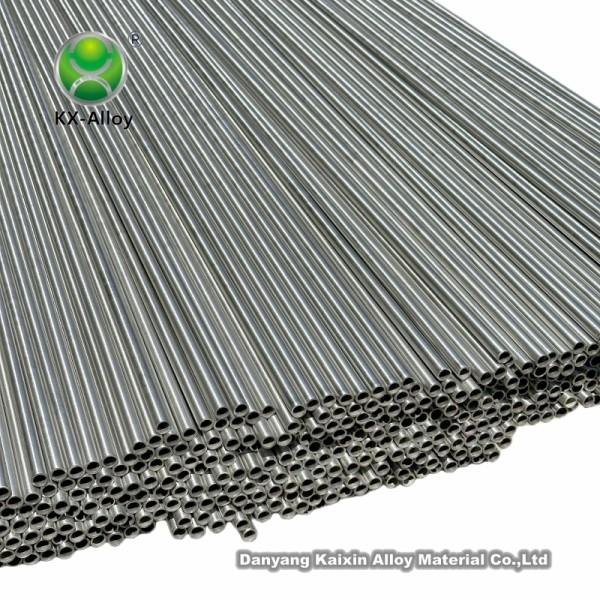

| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
