NO4060 Nickel Based Welding Wire Ernicu 7 Welding Rod
KX NO4060 Welding Wire Light Rod on Nickel Based Welding Wire Alloy
Product Description and Application
The NO4060 is called ERNiCu-7, SNi4060, NICu30Mn3Ti
NO4060 is used for welding monel 400 alloy; And the welding of monel400 alloy to steel, for surfacing steel, has good strength and corrosion resistance in many media, including seawater, salt and reduced acid.
Process Performance and Requirements
- Product Fusion Process
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
- Product Chemical Composition
| Model | Grade | C | Mn | Fe | Si | Cu | Nia | Coa | Al | Ti | Cr | Nbb | Mo | W | Othersc |
|
SNi4060
|
NO4060 |
≤ 0.15 |
2.0 - 4.0 |
≤ 2.5 |
≤1.2 |
28.0 - 32.0 |
≥ 62.0 |
- |
≤ 1.2 |
1.5 - 3.0 |
- | - | - | - | - |
-
Other Technical Requirements
Welding Wire Diameter and Allowable Deviation
| Package | Welding Wire Diameter | Allowable Deviation |

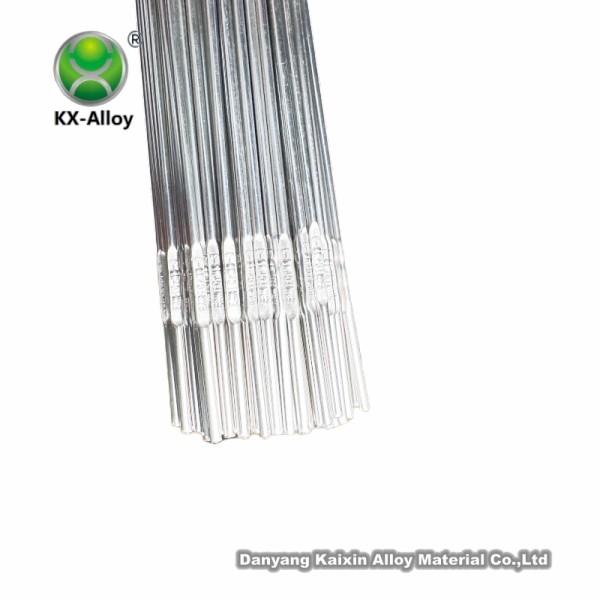

| Vertical Bar |
1.6,1..8,2.0,2.4,2.5,2.8,3.0,3.2, 4.0,4.8,5.0,6.0,6.4 |
±0.1 |

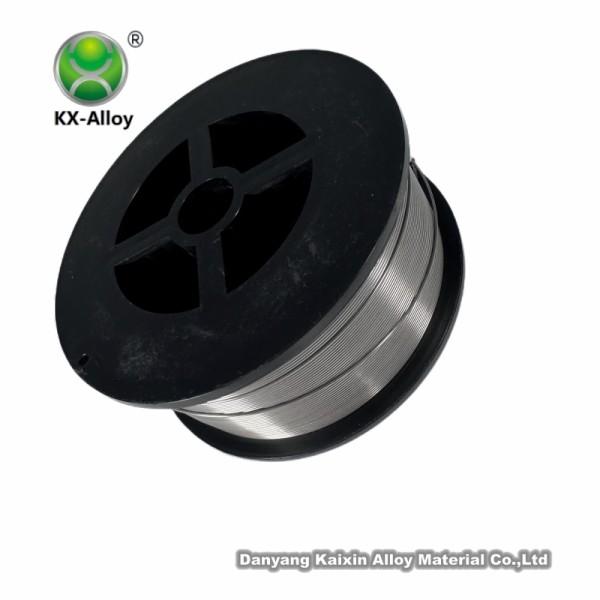

| Welding Wire Coil |
+0.01 -0.04 |
|
|
Wire Reel Diameter 100mm and 200mm |
0.8,0.9,1.0,1.2,1.4,1.6 | |
|
Wire Reel Diameter 270mm and 300mm |
0.5,0.8,0.9,1.0,1.2,1.4,1.6,2.0, 2.4,2.5,2.8,3.0,3.2 |
|
| Welding wire can be produced in other sizes, deviations and package as agreed by both parties | ||
|
Allowable deviation of ±0.1 diameter when used for hand-filled wire |
||
Welding Wire Loose Diameter and Warp Pitch
| Diameter of Wire Reel | 100 | 200 | 270,300 |
| Loose Diameter | 60~380 | 250~890 | 380~1300 |
| Warp Pitch | ≤13 | ≤19 | ≤25 |
- Productive Process
-
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

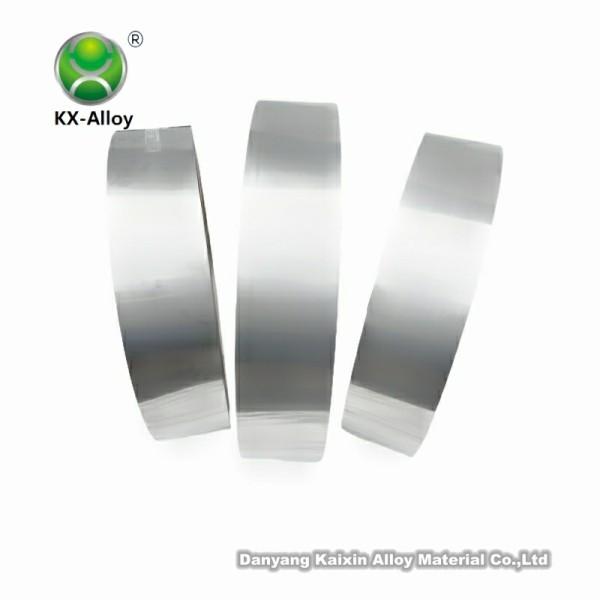

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
