Nilo 46 Corrosion Resistance Alloy Light Rod Weldability
KX Nilo 46 Corrosion Resistant Alloy Light Rod On Expansion Alloy
Product Description and Application
Nilo 46 is also known as Alloy 46,K94600,FeNi46,ASTM F30,Glass sealing 46,4J46
Nilo 46 is nickel-iron controlled expansion alloy containing 46% nickel. It is suitable for electric vacuum devices such as transmitting tube, oscillation tube, ignition tube, transistor, tube seal plug and relay shell.
It can be firmly sealed with hard glass with a certain coefficient of linear expansion in the temperature range of 20℃-450℃
Process Performance and Requirements
- Product Fusion Process
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
- Product Chemical Composition
| C | P | S | Mn | Si | Cu | Cr | Mo | Ni | Co | Fe |
| Not more than | ||||||||||
| 0.03 | 0.02 | 0.02 | 0.50 | 0.30 | 3.0-4.0 | - | - | 37-38 | 5.0-6.0 | Rem |
- Product Average Coefficient of Linear Expansion
| Alloy Type | Sample Heat Treatment Institution | Average Coefficient of Linear Expansion ɑ(10-6/K) | ||
| 20-300℃ | 20-400℃ | 20-500℃ | ||
| Nilo 46 | It is heated to 800 ~ 900 ℃ in hydrogen atmosphere, heat preservation 1 hour and cool to less than 300 ℃ at a speed of no more than 5℃/min | 5.5-6.5 | 5.6-6.6 | 7.0-8.0 |
- Productive Process
-
Professional Customization

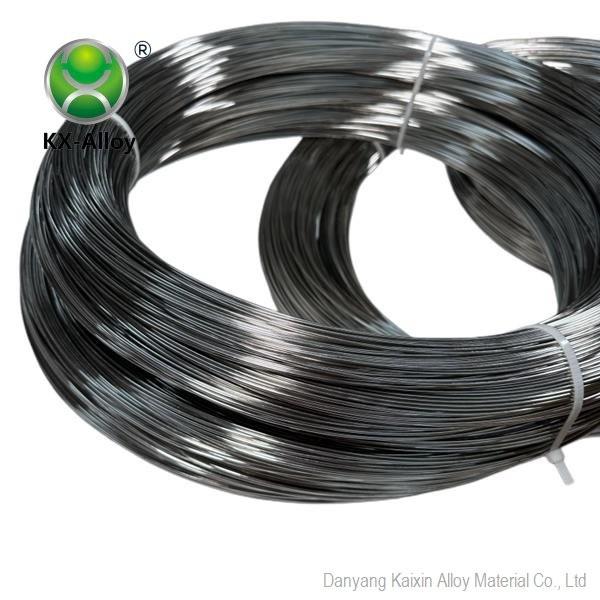

| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

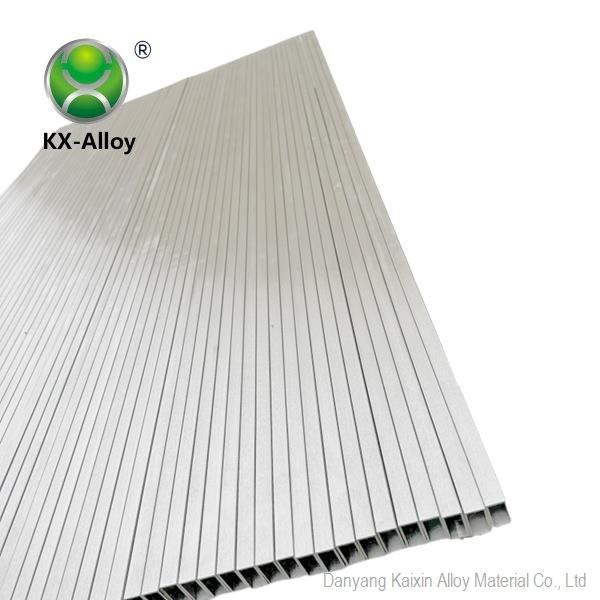

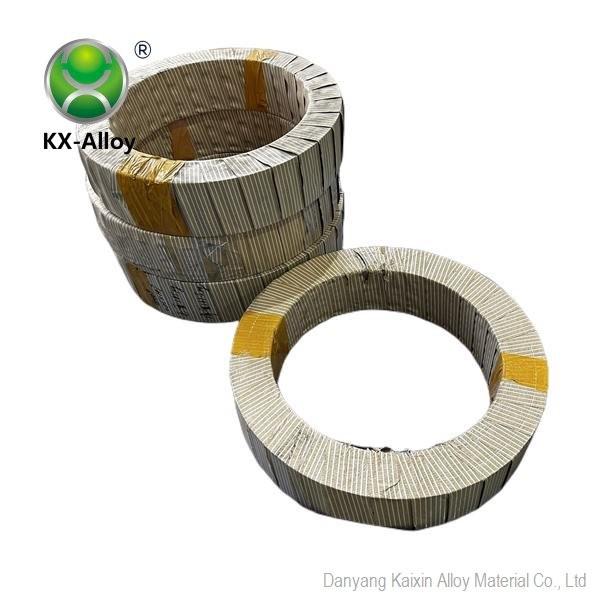

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |

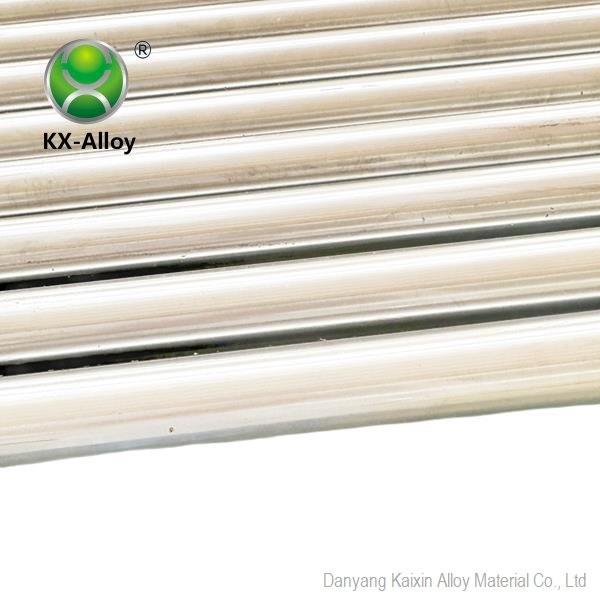

| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
