4J52 Expansion Alloy Corrosion Resistant Alloy Light Rod
KX 4J52 Corrosion Resistant Alloy Light Rod On Expansion Alloy
Product Description and Application
4J52 is something like Alloy 50
4J52 has excellent comprehensive properties in the temperature range from -253 ℃ to 700℃. The yield strength below 650℃ ranks the first among deformed superalloys, and has excellent performance, machining performance and welding performance. It can manufacture all kinds of parts with complex shapes, and has been widely used in aerospace, nuclear energy, petroleum industry and extrusion mold in the above temperature range.
Process Performance and Requirements
- Product Fusion Process
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
- Product Chemical Composition
| Alloy Grade | C | P | S | Mn | Si | Al | Co | Ni | Fe |
| Not more than | |||||||||
| 4J52 | 0.05 | 0.02 | 0.02 | 0.6 | 0.3 | ---- | --- | 51.5～ 52.5 | Rem |
- Product Mechanical Property
WireTensile Strength
| State Code | State | Tensile strength/MPa |
| R | Soft State | <590 |
| I | Hard State | >820 |
Strip Tensile Strength
| State Code | State |
Tensile strength /MPa |
| R | Soft State | <570 |
| I | Hard State | >700 |
- Product Average Coefficient of Linear Expansion
| Alloy Grade | Sample Heat Treatment Institution |
Average Coefficient of Linear Expansion α/(10-6/ K) |
||
| 20～ 300℃ | 20～ 400 ℃ | 20～ 450 ℃ | ||
| 4J52 | It is heated to 850±20 ℃ in hydrogen atmosphere, heat preservation for 1 hour and cool to less than 200 ℃ at a speed of no more than 5 ℃ / min | 9.8～ 11.0 | 9.81～ 11.0 | |
- Product Melting Temperature Range
| Melting Temperature | 1430℃ |
| Thermal Conductivity | λ=16.7W/(m·℃)[1,2] |
| Specific Heat Capacity | 502J/(kg/℃) |
- Productive Process
-
Professional Customization

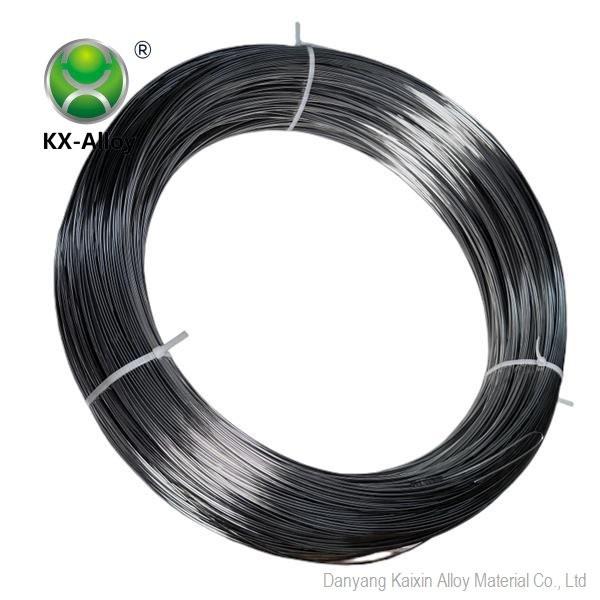

| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

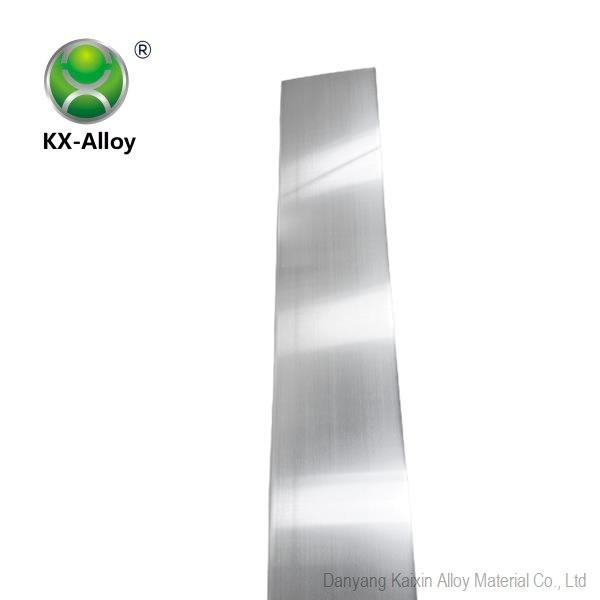

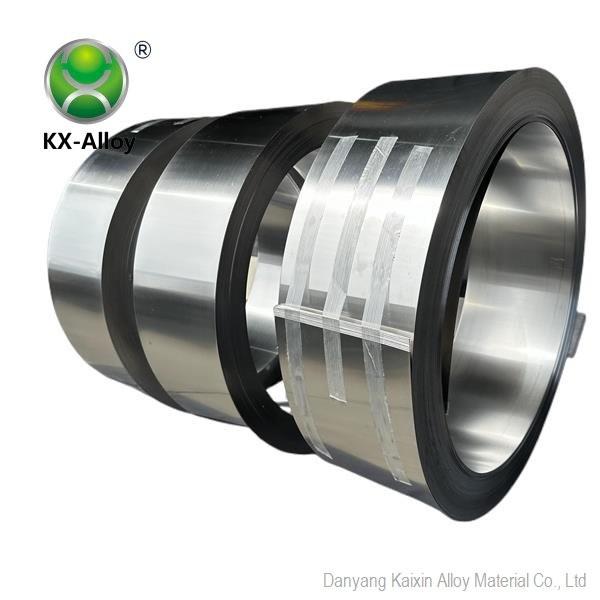

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |

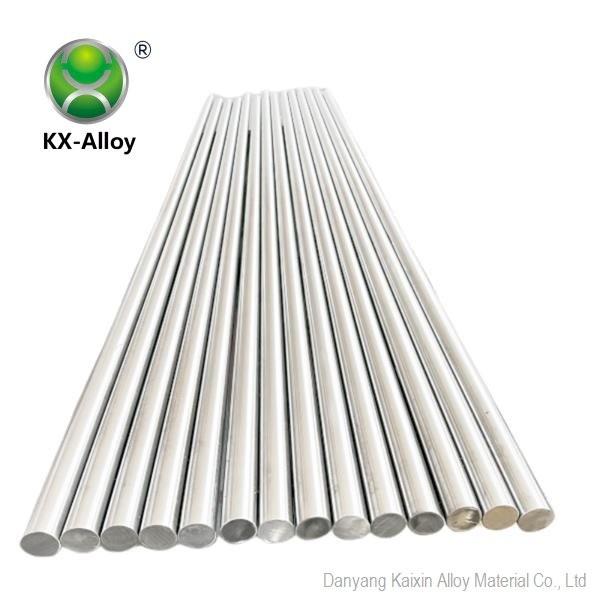

| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
