ISO9001 High Neck Titanium Pipe Flange Forged Ti-6Al-4V ASME B16.47 ISO7005 Bolted Welded

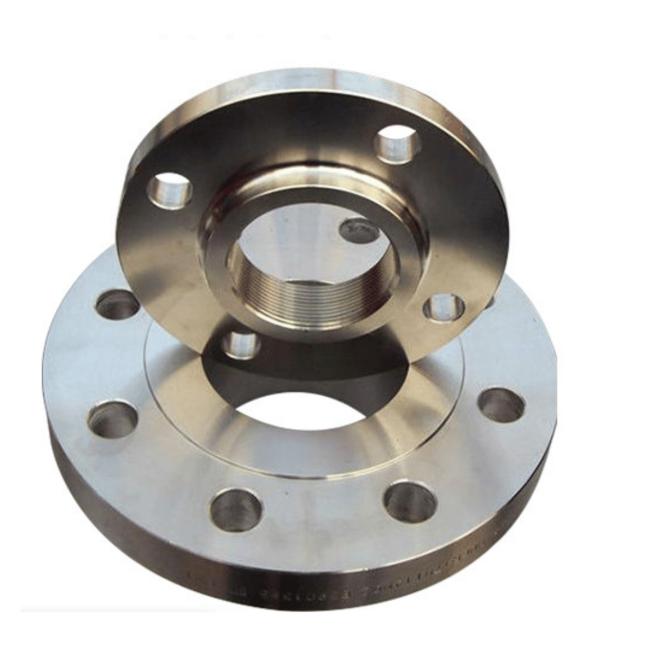

ISO 9001 Titanium High Neck Flange Covers Grade 2, Grade 5 (Ti-6Al-4V) ANSI B16.5, ASME B16.47, ISO 7005 Bolted Welded
*If you have any requirements for customized High Neck Titanium Flange Covers, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
| Titanium pipe neck flange specifications & parameters | |
| Product name | Titanium flange piece |
| Application field | Oil & Gas, Chemical, Water Treatment, Power Plants |
| Available size | 1/2" to 24" (DN15 to DN600) |
| Grade | Grade 2, Grade 5 (Ti-6Al-4V) |
| Production stadards | ANSI B16.5, ASME B16.47, ISO 7005 |
| Tolerance | ±1% Dimensional, ±0.5% Thickness or Customizable |
| Rolling process | Hot Forging, Cold Rolling |
| Surface process | Sandblasting, Pickling |
| Delivery time | 13-15days |
1. Offshore Oil and Gas Production
Field: Oil & Gas
Specific Scenario: High-pressure pipelines in offshore drilling platforms
Advantages & Problems Solved: Titanium flanges offer superior corrosion resistance, especially against seawater and acidic conditions. They effectively handle high pressures and temperatures.
Prominent Features: High tensile strength, excellent corrosion resistance
2. Chemical Processing Plants
Field: Chemical Industry
Specific Scenario: Reactor vessels and fluid handling systems
Advantages & Problems Solved: Titanium high neck flanges in Titanium alloy grade (e.g., Ti-6Al-4V) are highly resistant to chemical corrosion and can withstand aggressive chemicals.
Prominent Features: Chemical stability, high-temperature tolerance
3. Aerospace Applications
Field: Aerospace
Specific Scenario: Engine components and fuel delivery systems
Advantages & Problems Solved: Titanium alloy flanges are lightweight and have high tensile strength, making them ideal for aerospace applications where weight and durability are crucial.
Prominent Features: Lightweight, high strength-to-weight ratio
4. Desalination Plants
Field: Water Treatment
Specific Scenario: High-pressure reverse osmosis systems
Advantages & Problems Solved: Titanium pipe flanges offer excellent corrosion resistance against highly saline environments and can withstand the high pressures needed for reverse osmosis.
Prominent Features: Corrosion resistance in saline environments, high pressure-tolerance
| US Grade | European Grade | Production Standards | Sealing Face Types | Convex Technical Indicators | Annular Joint Face Technical Indicators |
|---|---|---|---|---|---|
| Grade 2 | 3.7035 | ANSI B16.5, ASME B16.47 | Raised Face (RF) | ±1% Dimensional | ±0.5% Thickness |
| Grade 5 | 3.7165 | ANSI B16.5, ASME B16.47 | Flat Face (FF) | ±1% Dimensional | ±0.5% Thickness |
| Grade 7 | 3.7235 | ISO 7005 | Ring-Type Joint (RTJ) | ±1.5% Dimensional | ±0.7% Thickness |
| Grade 9 | 3.7195 | ISO 7005 | Male-and-Female (M&F) | ±1.5% Dimensional | ±0.7% Thickness |
Note:
-
Keyword Coverage: This table provides an in-depth look at various US and European Grades of Titanium Flanges, particularly focusing on Titanium High Neck Flange.
-
These are commonly used specifications. We can customize the flanges according to your specific requirements. Please contact us for more details.
