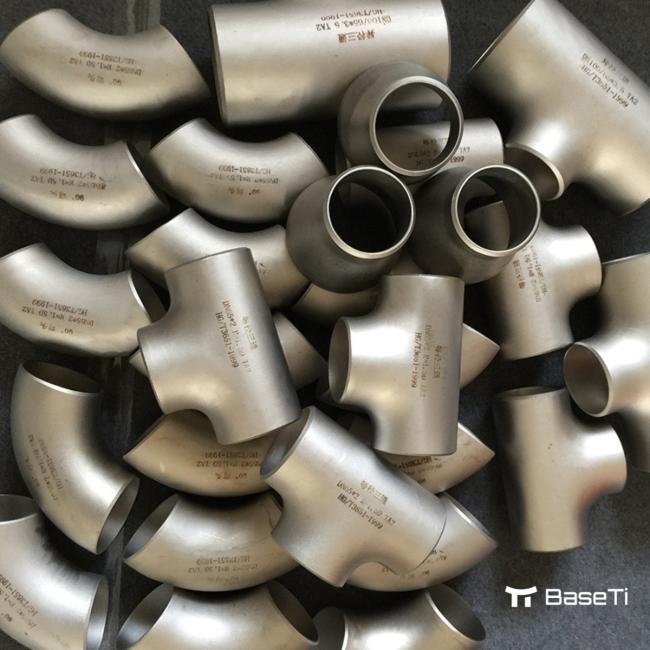

45° 90° 180° Alloy Titanium Tube Fittings Alloy Steel Fittings Titanium Elbow
45°, 90°, 180° Alloy Titanium Elbow Titanium Pipe Fittings For Automotive Structural Exhaust Systems Engine Components
*If you have any requirements for customized titanium elbow, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
Titanium pipe fittings specifications & parameters |
|
|
Product name |
Alloy Titanium elbow |
|
Application field |
Automotive |
|
Available size |
1/2" to 24" (U.S.), DN15 to DN600 (EU) or customized size |
|
Material Grade |
Grade 5 (Ti-6Al-4V) in U.S., Ti-6Al-4V and Ti-6Al-7Nb in EU |
|
Wall Thickness |
Sch 10, Sch 40, Sch 80 |
|
Angle |
45°, 90°, 180° |
|
Connection Type |
Welded, Threaded, Quick-fit |
|
Surface Finish |
Pickling, Passivation |
|
Operating Temperature |
-60°C to 600°C |
|
Operating Pressure |
Up to 3000 PSI |
The automotive industry is constantly evolving, and the demand for lightweight, durable, and heat-resistant materials is higher than ever. This is where titanium elbow fittings come into play. Manufactured by BaseTi, a leading titanium factory, these fittings offer unparalleled advantages in automotive applications.
- Why Titanium?
Low Density: Titanium has a density of 4.51 g/cm³, making it ideal for lightweight automotive applications.
High Strength: Titanium alloys can have a tensile strength up to 1,200 MPa, ensuring durability.
Heat Resistance: Titanium can withstand temperatures up to 600°C, making it suitable for high-temperature environments like exhaust systems.
Corrosion Resistance: Titanium is highly resistant to corrosion, even in salty conditions, making it perfect for under-the-hood applications.
Market Data
The global automotive titanium market is expected to reach $4.5 billion by 2025, growing at a CAGR of 3.5%. The demand for titanium elbow fittings, in particular, has seen a significant rise due to their application in high-performance vehicles and electric cars.
- Applications and Solutions
Exhaust Systems: Titanium elbow fittings are commonly used in exhaust systems to connect various pipes. Their high heat resistance makes them ideal for this application.
Cooling Systems: The corrosion resistance of titanium makes it suitable for cooling systems where antifreeze solutions are used.
Turbochargers: The high strength-to-weight ratio of titanium makes it ideal for turbochargers, improving efficiency.
- Why Choose BaseTi?
BaseTi is not just another titanium manufacturer; we are a trusted titanium supplier specializing in various grades of titanium elbow fittings. Our products adhere to international production standards, ensuring you get the highest quality and reliability.
In conclusion, titanium elbow fittings offer a multitude of benefits in the automotive industry, from lightweight design to high-temperature resistance. As a leading titanium supplier, BaseTi ensures that you get the best quality products for your automotive needs.
| Material Grade | Application Field |
Specific Products |
Production Standards |
|---|---|---|---|
| Grade 5 (Ti-6Al-4V) U.S. | Automotive - Exhaust Systems | High-performance exhaust pipes, Mufflers | ASME B16.9 |
| Ti-6Al-4V EU | Automotive - Engine Components | Turbocharger housings, Engine valves | EN 10253 |
| Ti-6Al-7Nb EU | Automotive - Structural Components | Chassis, Suspension arms | EN 10253 |
When it comes to Alloy Titanium Elbows, the physical properties are crucial for various applications. Below is an Excel table outlining the physical properties of Grade 5 (Ti-6Al-4V) in the U.S. and Ti-6Al-4V and Ti-6Al-7Nb in the EU.
| Property |
Grade 5 (Ti-6Al-4V) U.S. |
Ti-6Al-4V EU | Ti-6Al-7Nb EU |
|---|---|---|---|
| Density (g/cm³) | 4.43 | 4.43 | 4.52 |
| Tensile Strength (MPa) | 1,200 | 1,150 | 1,100 |
| Yield Strength (MPa) | 1,100 | 1,050 | 1,000 |
| Elongation (%) | 14 | 15 | 16 |
| Hardness (HV) | 360 | 350 | 340 |
| Melting Point (°C) | 1,650 | 1,635 | 1,625 |
Here is an Excel table detailing the chemical properties of Grade 5 (Ti-6Al-4V) in the U.S., Ti-6Al-4V, and Ti-6Al-7Nb in the EU.
| Element | Grade 5 (Ti-6Al-4V) U.S. |
Ti-6Al-4V EU |
Ti-6Al-7Nb EU |
|---|---|---|---|
| Ti | Bal. | Bal. | Bal. |
| Al | 6.0 | 6.0 | 6.0 |
| V | 4.0 | 4.0 | 4.0 |
| Nb | - | - | 7.0 |
| Fe | 0.25 | 0.30 | 0.25 |
| O | 0.20 | 0.18 | 0.13 |
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
