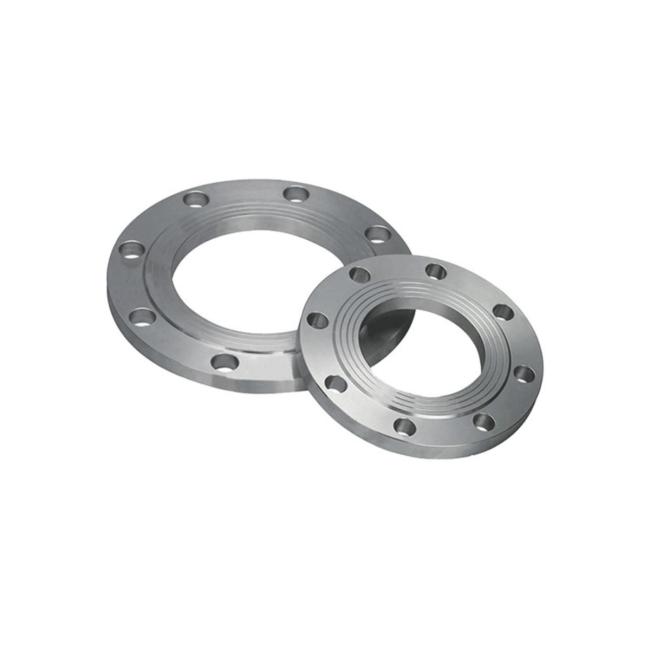

ISO9001 Titanium Welding Flange For Shipbuilding Power Plants Water Treatment
ISO 9001 Grade 1 2 5 (Ti-6Al-4V) Titanium Welding Flange For Petrochemical Shipbuilding Power Plants Water Treatment
*If you have any requirements for customized titanium welding pipe flange, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
| Titanium pipe Welding flange specifications & parameters | |
| Product name | Titanium Welding flange piece |
| Application field | Petrochemical, Shipbuilding, Power Plants, Water Treatment |
| Available size | 1/2" to 48" (DN15 to DN1200) |
| Grade | Grade 1, Grade 2, Grade 5 (Ti-6Al-4V) |
| Production stadards | ANSI B16.5, ASME B16.47, DIN 2633 |
| Tolerance | ±1% Dimensional, ±0.5% Thickness or Customizable |
| Rolling process | Hot Forging, Cold Forming |
| Surface process | Sandblasting, Pickling, Electro-polishing |
| Delivery time | 13-15days |
【Offshore Oil and Gas Exploration】
Field: Oil & Gas
Specific Scenario: Underwater pipelines and risers
Advantages & Problems Solved: Titanium welding pipe flanges resist seawater corrosion, preventing leaks and ensuring pipeline integrity. Titanium's lightweight nature also aids in installation and transport.
Prominent Features: Superior corrosion resistance, lightweight.
【 Desalination Plants】
Field: Water Treatment
Specific Scenario: High-pressure reverse osmosis chambers and connection systems
Advantages & Problems Solved: Titanium flanges resist corrosion from saline environments and withstand the high pressures necessary for reverse osmosis.
Prominent Features: Excellent corrosion resistance, high-pressure tolerance.
【 Aerospace and Defense】
Field: Aerospace & Defense
Specific Scenario: Aircraft fuel systems and missile propulsion systems
Advantages & Problems Solved: Titanium alloy flanges, like Ti-6Al-4V, offer an excellent strength-to-weight ratio, ensuring lightweight yet durable components.
Prominent Features: High strength-to-weight ratio, temperature resistance.
【Chemical Processing】
Field: Chemical Industry
Specific Scenario: Aggressive acid and alkali fluid transport systems
Advantages & Problems Solved: Titanium and titanium alloy flanges resist chemical corrosion and provide longevity in aggressive chemical environments.
Prominent Features: Superior chemical resistance, longevity.
【Power Generation】
Field: Energy
Specific Scenario: Cooling systems in nuclear reactors
Advantages & Problems Solved: Titanium flanges provide resistance to radiation and high temperatures, ensuring safety and structural integrity.
Prominent Features: Radiation resistance, high-temperature tolerance.
| U.S. Grade | European Grade | Production Standards | Seal Face Type | Convex Technical Parameters | Annular Joint Face Technical Parameters |
| Grade 1 | 3.7025 | ANSI B16.5 | Raised Face (RF) | Height: 2 mm | Groove Depth: 0.5 mm |
| Grade 2 | 3.7035 | ASME B16.47 | Flat Face (FF) | Height: 3 mm | Groove Depth: 0.8 mm |
| Grade 5 (6Al-4V) |
3.7165 | DIN 2633 | Ring-Type Joint (RTJ) | Height: 4 mm | Groove Depth: 1.0 mm |
Note: This table covers the most common standards and specifications for Titanium Welding Pipe Flanges. If you have specific needs, we offer customized services. Please contact us for more details.
