ASTM B348 Titanium Forgings ISO9001 Square Titanium Forged Block For Aerospace
ASTM B348, ISO 9001 Titanium Block Square For Aerospace And Defense Medical Devices Automotive Sector Marine Engineering
*If you have any requirements for customized industrial block, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
| Titanium cube block specifications & parameters | |

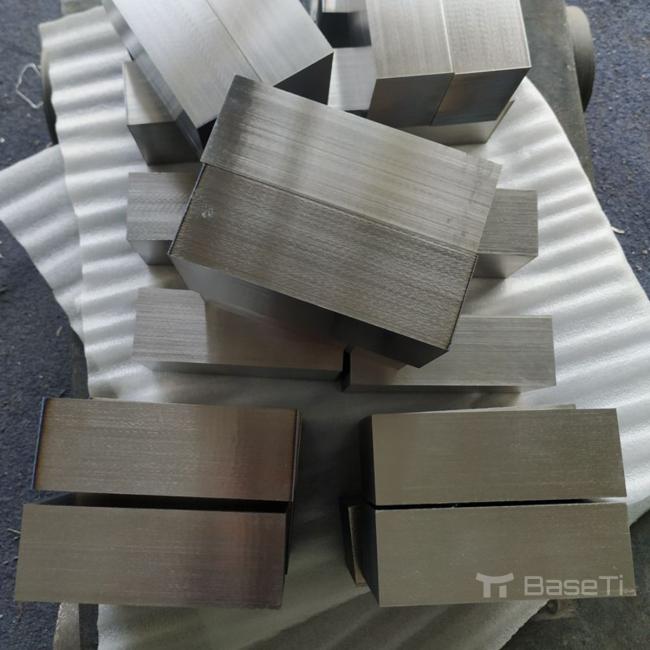

| Product name | Titanium cube block |
| Application field | Aerospace, Automotive, Medical, Chemical Processing |
| Available size | 1x1cm to 20x20cm |
| Grade | Ti-6Al-4V, Grade 5, Grade 9 |
| Production stadards | ASTM B348, ISO 9001 |
| Tolerance | +/- 0.05 mm or Customizable |
| Rolling process | Hot-rolled, Cold-rolled |
| Surface process | Polished, Sandblasted |
| Delivery time | 11-15days |
| Key words |
Titanium Block Supplier |
Titanium Block: Applications, Roles, and Solutions
Titanium Blocks are highly versatile materials known for their excellent thermal conductivity, corrosion resistance, and lightweight properties. They are the go-to solution for many industrial and commercial sectors. BaseTi, a leading brand in this domain, has been pioneering in providing top-quality Titanium Blocks.
- Aerospace and Defense
In aerospace, Titanium Blocks are invaluable for constructing aircraft components. Their strength-to-weight ratio and corrosion resistance make them ideal for this high-stakes environment. They are often used in landing gear systems, jet engines, and other structural components.
- Medical Devices
Titanium Blocks are the material of choice for many medical applications such as surgical implants and prosthetics. The hypoallergenic properties of Titanium make these blocks safe and long-lasting solutions.
- Automotive Sector
Due to their thermal properties and light weight, these blocks are used in various automobile parts, enhancing both performance and fuel efficiency.
- Marine Engineering
Titanium Blocks withstand saline conditions exceptionally well, making them an ideal choice for marine applications like shipbuilding and underwater constructions.
- Oil and Gas Industry
In the oil and gas sector, Titanium Blocks are often used in drill bits, platforms, and other high-pressure environments due to their durability and resistance to corrosion.
- Renewable Energy
In the field of renewable energy, BaseTi's Titanium Blocks are highly efficient and effective for solar panel mounts, wind turbine components, and more.
- Chemical Processing
In chemical plants, these blocks are used for their exceptional resistance to chemical corrosion, often seen in reaction vessels and piping systems.
| Grade | Yield Strength (MPa)/(ksi) | Tensile Strength (MPa)/(ksi) | Elongation (%) | Thermal Conductivity (W/m·K)/(BTU/hr-ft-°F) | Density (g/cm³)/(lb/in³) |
|---|---|---|---|---|---|
| Grade 1 | 170/24.7 | 240/34.8 | 24 | 21.9/15.2 | 4.51/0.163 |
| Grade 2 | 275/39.9 | 345/50 | 20 | 21.9/15.2 | 4.51/0.163 |
| Grade 5 | 828/120 | 920/133.4 | 10 | 6.7/4.6 | 4.43/0.160 |
| Grade 9 | 483/70 | 620/90 | 15 | 17.5/12.1 | 4.48/0.162 |
| Grade 12 | 345/50 | 483/70 | 18 | 21.9/15.2 | 4.51/0.163 |
Note:
These are commonly used specifications. We can customize based on your specific needs. Please contact us for more details.
