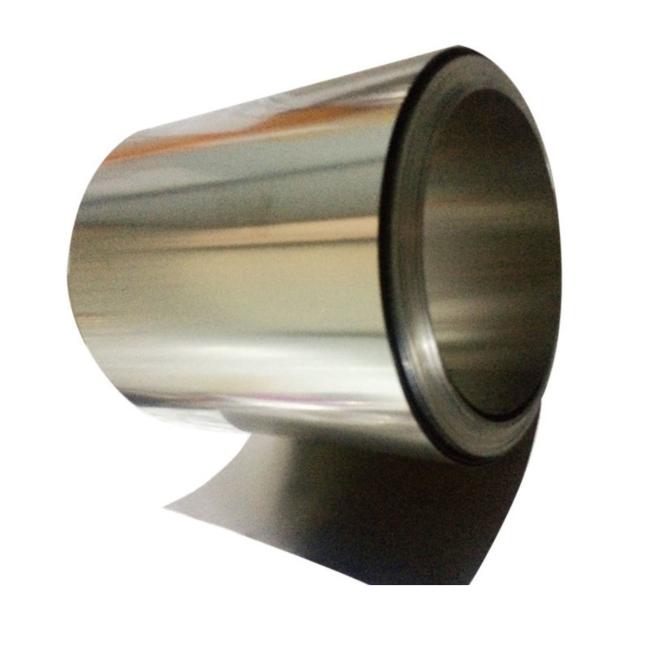

0.01mm 0.02mm 0.03mm Pure Titanium Rolled Gr1 Gr2 Gr5 Thin Titanium Sheet For AMedical Devices
0.01mm 0.02mm 0.03mm Pure Titanium Foil, Gr1, Gr2, Gr5 Titanium Alloy Foil, For Aerospace, Medical Devices, Electronics
*If you have any requirements for customized titanium coil/foil, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
Titanium coil&foil specifications & parameters |
|
| Product name | 0.01mm0.02mm 0.05 0.08mm |
| Application field | Aerospace, Medical Devices, Chemical Processing, Electronics |
| Available size | Thickness: 0.01mm-0.2mm; Width: 50mm-300mm |
| Grade | Grade 1, Grade 2, Grade 5 |
| Production stadards | ASTM B265, ASTM F67, ASTM F136 |
| Tolerance | ± 0.01mm for thickness, ± 1mm for width |
| Rolling process | Cold Rolled, Hot Rolled |
| Surface process | Annealed, Polished |
| Delivery time | 12-16days |
| Key Words |
High Purity Titanium Foil, Aerospace, Medical Devices, Chemical Processing, Electronics, Renewable Energy |
Pure Titanium Foil: Applications, Roles, and Solutions
Pure Titanium Foil is a marvel of materials engineering with a wide range of applications. Here, we'll explore its uses in various fields, providing insight into why it's becoming the go-to material for numerous industries.
- Aerospace Industry
In the aerospace industry, the strength-to-weight ratio of Pure Titanium Foil is unmatched. BaseTi's Pure Titanium Foil is used in aircraft construction for heat shields, exhausts, and various skin panels due to its low density and high thermal stability.
- Medical Devices
Pure Titanium Foil, with its biocompatibility and corrosion resistance, is ideal for surgical implants, dental crowns, and prosthetic applications. BaseTi offers medically graded foils for these specific needs.
- Electronics
When it comes to electronic products, the foil is used as a conductive layer in flexible printed circuit boards and batteries. Its anti-corrosive properties ensure the longevity of electronic devices.
- Chemical Processing
In corrosive environments often found in chemical processing plants, Pure Titanium Foil is the material of choice for lining tanks and pipes, offering excellent resistance to a wide range of chemicals.
- Energy Sector
BaseTi's Pure Titanium Foil is crucial in the energy sector for applications like photovoltaic cell components and fuel cell membranes, due to its high electrical conductivity and corrosion resistance.
| Grade | Density (g/cm³) | Melting Point (°C) | Boiling Point (°C) |
Young's Modulus (GPa) |
Thermal Conductivity (W/m·K) |
|---|---|---|---|---|---|
| Gr1 | 4.51 | 1,668 | 3,287 | 116 | 21.9 |
| Gr2 | 4.50 | 1,670 | 3,280 | 114 | 21.8 |
| Gr3 | 4.49 | 1,672 | 3,275 | 112 | 21.7 |
| Gr4 | 4.48 | 1,675 | 3,270 | 110 | 21.5 |
| Gr5 | 4.43 | 1,680 | 3,265 | 115 | 22.0 |
| Grade | Titanium (%) | Iron (Fe) | Oxygen (O) |
Carbon (C) |
Nitrogen (N) | Hydrogen (H) |
|---|---|---|---|---|---|---|
| Gr1 | Bal. | ≤ 0.20 | ≤ 0.18 | ≤ 0.08 | ≤ 0.03 | ≤ 0.015 |
| Gr2 | Bal. | ≤ 0.30 | ≤ 0.25 | ≤ 0.10 | ≤ 0.03 | ≤ 0.015 |
| Gr3 | Bal. | ≤ 0.30 | ≤ 0.35 | ≤ 0.10 | ≤ 0.05 | ≤ 0.015 |
| Gr4 | Bal. | ≤ 0.50 | ≤ 0.40 | ≤ 0.10 | ≤ 0.05 | ≤ 0.015 |
| Gr5 | Bal. | ≤ 0.40 | ≤ 0.20 | ≤ 0.10 | ≤ 0.05 | ≤ 0.015 |
Note: BaseTi offer customization to meet your specific chemical composition requirements.
