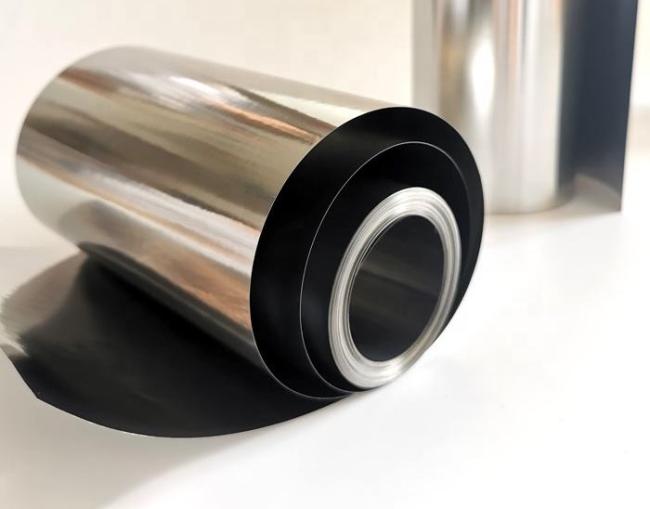

0.1mm Medical Titanium Foil Sheet Biocompatible Materials For Orthopedic
0.1mm Medical Titanium Foil Biocompatible Materials for Orthopedic, Cardiovascular Stents,Drug Delivery Systems
*If you have any requirements for customized titanium coil/foil, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
Medical Titanium coil&foil specifications & parameters |
|
| Product name | 0.01mm0.02mm 0.05 0.08mm |
| Application field | Orthopedic implants, Dental implants, Surgical instruments, Pacemaker casings |
| Available size | Thickness 0.01mm - 1mm, Width 20mm - 500mm |
| Grade | Grade 1, Grade 2, Grade 4, Grade 5 (Ti6Al4V) |
| Production stadards | ASTM F67, ASTM F136, ISO 5832 |
| Tolerance | ±0.03mm for thickness, ±0.1mm for width |
| Rolling process | Cold Rolled |
| Surface process | Acid-washing, Polishing, Sandblasting |
| Delivery time | 13-16days |
| Key Words |
Medical Titanium Foil |
Medical Titanium Foil: The Vanguard Material in Healthcare Solutions
When it comes to the diverse applications of materials in the medical field, Medical Titanium Foil has garnered attention for its unmatched properties and compatibility with biological systems. The foil is not only renowned for its strength-to-weight ratio but also for its unique combination of corrosion resistance, biocompatibility, and reduced artifacts in imaging studies. Below, we outline five critical applications where Medical Titanium Foil stands as a revolutionary solution.
- Implants and Prosthetics
Medical Titanium Foil offers an exemplary strength-to-weight ratio with tensile strength ranging from 30,000 to 200,000 psi, depending on the grade. This makes it an ideal material for orthopedic implants like hip and knee replacements. Moreover, its remarkable biocompatibility ensures minimal inflammation and allergic reactions, promoting quicker healing.
- Surgical Instruments
High-quality surgical instruments often employ Medical Titanium Foil for its extraordinary corrosion resistance. It stands up to frequent sterilization processes better than most materials, ensuring a long-lasting and reliable toolkit for surgeons.
- Cardiovascular Stents
Titanium's natural compatibility with the human body makes it a preferred choice for cardiovascular stents. The material reduces the risk of inflammation and offers a more stable option compared to conventional materials like stainless steel. Medical Titanium Foil ensures minimal arterial wall stress due to its mechanical properties, making it ideal for this delicate application.
- Dental Implants
Dental implants made from Medical Titanium Foil not only offer strength but also are lightweight, reducing the pressure on the jawbone. The material's biocompatibility also minimizes the risk of peri-implantitis, a common complication in dental implants.
- Drug Delivery Systems
Medical Titanium Foil serves as a barrier material in drug delivery systems like patches or implantable reservoirs. The foil’s inertness ensures no unwanted reactions with the drugs, and its thin profile allows for a controlled rate of release.
- BaseTi's Medical Titanium Foil
Our brand, BaseTi, supplies Medical Titanium Foil that meets or exceeds international standards such as ASTM F67 and ASTM F136, ensuring that healthcare professionals can rely on our products for the most demanding applications.
Conclusion
Medical Titanium Foil is rapidly becoming a material of choice across a myriad of medical applications, offering solutions that combine mechanical strength, biocompatibility, and durability.
| Grade | Density (g/cm³) | Melting Point (°C) | Boiling Point (°C) |
Young's Modulus (GPa) |
Thermal Conductivity (W/m·K) |
|---|---|---|---|---|---|
| Gr1 | 4.51 | 1,668 | 3,287 | 116 | 21.9 |
| Gr2 | 4.50 | 1,670 | 3,280 | 114 | 21.8 |
| Gr3 | 4.49 | 1,672 | 3,275 | 112 | 21.7 |
| Gr4 | 4.48 | 1,675 | 3,270 | 110 | 21.5 |
| Gr5 | 4.43 | 1,680 | 3,265 | 115 | 22.0 |
| Grade | Titanium (%) | Iron (Fe) | Oxygen (O) |
Carbon (C) |
Nitrogen (N) | Hydrogen (H) |
|---|---|---|---|---|---|---|
| Gr1 | Bal. | ≤ 0.20 | ≤ 0.18 | ≤ 0.08 | ≤ 0.03 | ≤ 0.015 |
| Gr2 | Bal. | ≤ 0.30 | ≤ 0.25 | ≤ 0.10 | ≤ 0.03 | ≤ 0.015 |
| Gr3 | Bal. | ≤ 0.30 | ≤ 0.35 | ≤ 0.10 | ≤ 0.05 | ≤ 0.015 |
| Gr4 | Bal. | ≤ 0.50 | ≤ 0.40 | ≤ 0.10 | ≤ 0.05 | ≤ 0.015 |
| Gr5 | Bal. | ≤ 0.40 | ≤ 0.20 | ≤ 0.10 | ≤ 0.05 | ≤ 0.015 |
Note: BaseTi offer customization to meet your specific chemical composition requirements.
