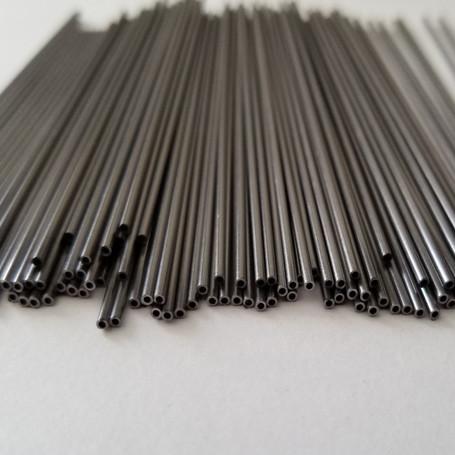

0.8mm To 3.5mm Titanium Seamless Tube Titanium Capillary Tube For Medical ASTM F67 F136 F1295
Diameter 0.8mm~3.5mm Titanium Capillary Pipe Titanium Seamless Tube For Medical ASTM F67, F136, ASTM F136, ASTM F1295
*If you have any requirements for customized titanium seamless capillary for medical, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 5 to 10 days.
| Titanium seamless tubing specifications & parameters | |
| Product name | Titanium seamless tube |
| Application field | Surgical implants, stents, dental implants, orthopedic devices |
| Available size | Outer Diameter 0.5-10mm, Inner Diameter 0.2-9.5mm, Length 50-3000mm |
| Grade | Grade 1, Grade 4, Grade 5 (Ti-6Al-4V), Grade 7 |
| Production stadards | ASTM F67, ASTM F136, ASTM F1295, ISO 5832 |
| Tolerance | ±0.05mm for OD, ±0.03mm for ID |
| Rolling process | Cold Rolling, Hot Rolling |
| Surface process | Pickling, Polishing, Anodizing |
| Delivery time | 13-15days |
Pivotal Contributions of Medical-Grade Titanium Capillaries Seamless Tube: An Analytical Overview
The utilization of Titanium Capillary in healthcare applications has seen a notable upswing, presenting clinicians with a resource that perfectly aligns with their rigorous demands for durability, biocompatibility, and dependability. Occupying a distinguished niche in the medical device arena, BaseTi's Titanium Capillaries are engineered to meet the most complex healthcare challenges.
- Exceptional Material Qualities
Exhibiting an optimal set of mechanical and chemical properties, titanium capillaries provide a unique blend of high strength-to-weight ratios, remarkable corrosion resilience, and unparalleled biocompatibility. Specifically, these capillaries demonstrate tensile strengths ranging from 30,000 to 200,000 psi, contingent on the grade of titanium deployed.
- Precision Instruments and Implant Technologies
These capillaries are indispensable in crafting state-of-the-art surgical tools like scalpels and forceps. For context, a market analysis from 2020 established that titanium-based surgical tools constituted a market valuation of roughly $180 million. Beyond this, these capillaries play a pivotal role in constructing cardiovascular stents and orthopedic implants, capitalizing on titanium's lightweight and robust characteristics.
- BaseTi's Technological Leadership
Here at BaseTi, we focus on creating and supplying Titanium Capillaries for healthcare applications, compliant with global standards such as ASTM F67 and ASTM F136. Our products maintain a dimensional tolerance of +/- 0.01 mm, qualifying them for utilization in high-precision medical apparatuses.
Final Thoughts
In a market landscape where the valuation of the medical device sector is projected to escalate to $612.7 billion by 2025, Titanium Capillaries have emerged as a foundational material for future-forward healthcare solutions. With its superior tensile strength, outstanding biocompatibility, and resistance to corrosion, it's clear that titanium capillaries are setting a new paradigm in medical technology.
| Column Header | Explanation | Example Data | Grade of Titanium |
Corresponding Standard |
|---|---|---|---|---|
| Titanium Composition | Percentage of titanium in the alloy | 99.5% | Grade 1, Grade 4 | ASTM F67, ASTM F136 |
| Iron (Fe) | Max percentage of iron content | 0.2% | Grade 1, Grade 4 | ASTM F67, ASTM F136 |
| Oxygen (O) | Max percentage of oxygen content | 0.18% | Grade 1 | ASTM F67 |
| Carbon (C) | Max percentage of carbon content | 0.08% | Grade 4 | ASTM F136 |
| Nitrogen (N) | Max percentage of nitrogen content | 0.03% | Grade 1, Grade 4 | ASTM F67, ASTM F136 |
| Hydrogen (H) | Max percentage of hydrogen content | 0.015% | Grade 1, Grade 4 | ASTM F67, ASTM F136 |
| Aluminum (Al) | Presence and percentage of aluminum (if applicable) | 5-6% | Grade 5 | ASTM F136 |
| Vanadium (V) | Presence and percentage of vanadium (if applicable) | 3.5-4.5% | Grade 5 | ASTM F136 |
| Column Header |
Explanation |
Example Data | Grade of Titanium | Corresponding Standard |
|---|---|---|---|---|
| Tensile Strength | Measure of how much stress the material can endure before breaking | 30,000-200,000 psi | Grade 1, Grade 4 | ASTM F67, ASTM F136 |
| Elongation | Measure of how much the material can be stretched | 15-25% | Grade 2, Grade 5 | ASTM F67, ASTM F136 |
| Density | Measure of mass per unit volume | 4.51 g/cm³ | Grade 1, Grade 4 | ASTM F67, ASTM F136 |
| Thermal Conductivity | Measure of the material's ability to conduct heat | 21.9 W/(m·K) | Grade 1, Grade 4 | ASTM F67, ASTM F136 |
| Elastic Modulus | Measure of the material's stiffness or rigidity | 100-110 GPa | Grade 2, Grade 5 | ASTM F67, ASTM F136 |
| Corrosion Resistance | Qualitative measure of how well the material stands up to corrosive environments | Excellent | Grade 1, Grade 4 | ASTM F67, ASTM F136 |
| Biocompatibility | Qualitative measure of the material's compatibility with biological systems | Excellent | Grade 1, Grade 4 | ASTM F67, ASTM F136 |
| Column Header | Explanation | U.S. Grade | European Grade | Corresponding U.S. Standard | Corresponding European Standard | Application Areas | Main Products in the Application Area |
|---|---|---|---|---|---|---|---|
| General Medical | General Medical-grade Titanium used for broad applications | Gr 1, Gr 4 | Ti-3Al-2.5V | ASTM F67, ASTM F136 | ISO 5832-3 | Surgical implants, Orthopedic | Dental implants, Hip replacements |
| High Strength | Titanium used for high-stress medical applications | Gr 5 (Ti-6Al-4V) | Ti-6Al-7Nb | ASTM F136 | ISO 5832-11 | Fracture fixation devices | Bone screws, Plates |
| High Corrosion-Resistance | Titanium with high corrosion resistance | Gr 7 | Ti-15Mo | ASTM F1295 | ISO 5832-14 | Cranial plates | Cranial mesh, Skull plates |
| Biocompatible | Highly biocompatible titanium for sensitive applications | Gr 9 | Ti-13Nb-13Zr | ASTM F1713 | ISO 5832-9 | Spinal fusion | Vertebral spacers, Pedicle screws |
