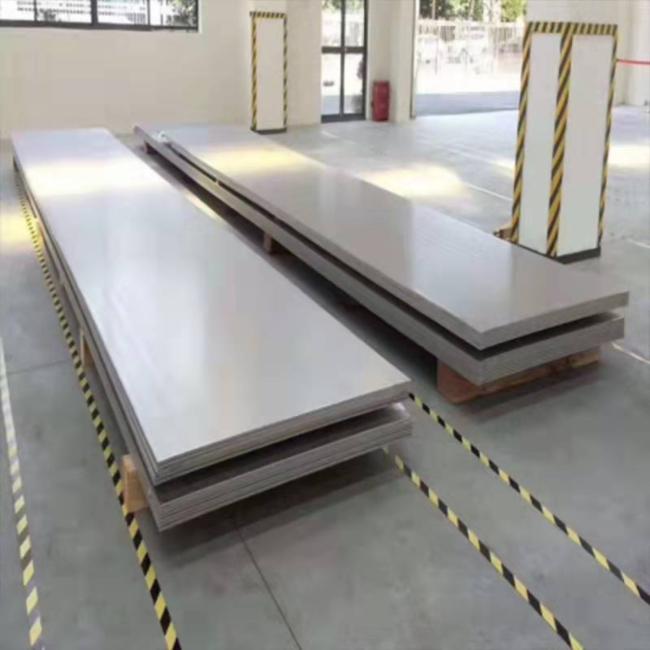

Commercially Pure Astm B265 Titanium Sheet Metal Grade 2 For Petrochemical Industry
Commercially Pure Titanium Grade 2. Titanium Plate For Petrochemical Industry ASTM B265, ISO 5832.
*If you have any requirements for customized titanium plate, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
Titanium plate specifications & parameters |
|
| Product name | Grade 2. Titanium Plate For Petrochemical Industry |
| Application field | Petrochemical industry, including refining, fluid transport, and chemical storage. |
| Available size | Thickness ranges from 3mm to 25mm; Width up to 2,500mm; Length up to 12,000mm. |
| Grade | Commercially Pure Titanium Grade 2. |
| Production stadards | ASTM B265, ISO 5832. |
| Tolerance | Thickness +/- 0.03mm; Width +/- 0.2mm; Length +/- 0.5mm.
|
| Rolling process | Hot-rolled and Cold-rolled options available. |
| Surface process | Sandblasted, pickled, or polished. |
| Delivery time | 12-16days |
| Key words |
|
The Transformative Impact of Pure Titanium Plates in the Petrochemical and Chemical Industries: An Expert Analysis
The significance of material selection in the petrochemical and chemical industries cannot be understated. High-performance materials like pure titanium plates have emerged as game-changers. Known for their exceptional corrosion resistance, durability, and strength-to-weight ratio, these plates offer a myriad of solutions across various challenging environments.
Application in Petrochemical Industry
- Corrosion Resistance
BaseTi's Pure Titanium Plates are critically acclaimed for their corrosion-resistant nature. According to industry data, they can reduce maintenance costs by up to 40%, primarily because they resist corrosive compounds like sulfuric acid and chloride ions commonly found in petrochemical operations.
- High-Temperature Tolerance
In environments where temperatures can soar up to 500°C, pure titanium plates retain their structural integrity, making them an ideal choice for reactors and distillation columns.
Chemical Industry Applications
- Safety Measures
Chemical processing often involves reactive substances; pure titanium plates stand out for their non-reactive properties, mitigating risks of unwanted chemical reactions.
- Durability
With a tensile strength of over 50,000 psi, these plates outperform conventional materials, thereby increasing the lifespan of equipment by an average of 20%.
- BaseTi’s Role
BaseTi provides an extensive range of pure titanium plates that adhere to ASTM B265 and ISO 5832 standards. Our products undergo rigorous quality testing to ensure they meet industry requirements.
- Key Takeaway
The robustness, corrosion resistance, and versatility of pure titanium plates make them indispensable in today's petrochemical and chemical industries. With BaseTi’s cutting-edge technology and stringent quality controls, you're not just purchasing a product; you're investing in a solution.
Property |
Grade 1 | Grade 2 | Grade 3 | Grade 4 | ASTM Standard |
|---|---|---|---|---|---|
| Density (g/cm³) | 4.51 | 4.51 | 4.51 | 4.51 | ASTM B265 |
| Tensile Strength (psi) | 35,000 | 50,000 | 65,000 | 80,000 | ASTM B265 |
| Yield Strength (psi) | 25,000 | 40,000 | 55,000 | 70,000 | ASTM B265 |
| Elongation (%) | 24 | 20 | 18 | 15 | ASTM B265 |
| Melting Point (°C) | 1,668 | 1,668 | 1,668 | 1,668 | ASTM B265 |
| Thermal Conductivity (W/m·K) | 21.9 | 21.9 | 21.9 | 21.9 | ASTM B265 |
| Coefficient of Thermal Expansion (10⁻⁶/°C) | 8.6 | 8.6 | 8.6 | 8.6 | ASTM B265 |
| Electrical Resistivity (μΩ·cm) | 55.0 | 55.0 | 55.0 | 55.0 | ASTM B265 |
From an expert's viewpoint, the physical properties of Pure Titanium Plates adhere strictly to ASTM B265 standards, making them reliable choices for industrial applications. The tensile and yield strengths vary by grade, offering flexibility in selecting the right material for specific projects.
