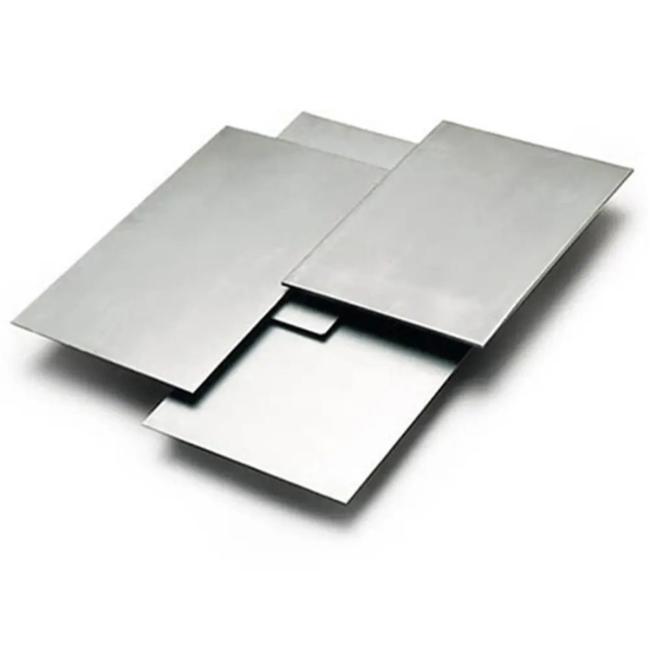

Aerospace Titanium Alloy Plate Sheet For Healthcare Medical Devices 200 - 3000mm
Titanium Alloy Sheet Plate For Aerospace Healthcare Medical Devices Oil & Gas Industry Automotive
*If you have any requirements for customized titanium alloy sheet, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
Titanium alloy sheet specifications & parameters |
|
| Product name | Titanium alloy sheet |
| Application field | Aerospace, medical implants, automotive, marine applications |
| Available size | 0.5-60mm, Width 200-3000mm, Length 500-12000mm or Customizable. |
| Grade | Ti-6Al-4V, Ti-6Al-7Nb, Ti-3Al-2.5V, Grade 2, Grade 5 |
| Production stadards | ASTM B265, ASTM F136, ISO 5832 |
| Tolerance | Thickness +/-0.1mm, Width +/-1mm, Length +/-2mm |
| Rolling process | Hot rolling, cold rolling |
| Surface process | Polished, anodized, sandblasted |
| Delivery time | 12-15days |
| Key words |
|
Introduction
Titanium alloy sheets stand out as a material of choice in various applications due to their unique combination of strength, corrosion resistance, and low weight. From aerospace to healthcare, BaseTi, a leading titanium manufacturer, continues to pave the way for advancements in these sectors.
- Aerospace Industry
The aerospace sector's demand for titanium alloy sheets has been skyrocketing. According to the Aerospace Industries Association, the use of titanium in aircraft manufacturing has increased by 8% in the past year alone.
Solution: Titanium alloy sheets offer incredible strength and are lightweight, making them ideal for aircraft structures. In addition, they are highly resistant to the corrosive environment at high altitudes.
- Healthcare and Medical Devices
Statistics from the American Hospital Association indicate that approximately 6.1 million surgeries involving implants are performed annually in the United States.
Solution: In medical implants and devices, titanium alloy sheets are crucial for their biocompatibility and lightweight nature, which provides patients with more comfort and quicker recovery.
- Oil & Gas Industry
Titanium’s use in oil and gas has increased by 5% over the last three years, according to industry reports.
Solution: In corrosive environments like oil rigs, titanium alloy sheets offer unparalleled corrosion resistance, thereby extending the lifecycle of equipment.
- Automotive Industry
With fuel-efficiency requirements becoming more stringent, the automotive industry is increasingly looking at lightweight materials.
Solution: The high strength-to-weight ratio of titanium alloy sheets makes them an ideal candidate for critical components, reducing the overall weight of vehicles.
BaseTi - The Titanium Factory You Can Trust
As a leading titanium manufacturer, BaseTi offers a wide range of titanium alloy sheets that meet international standards. We continuously invest in R&D to provide solutions that are not just efficient but also cost-effective.
| U.S. Grade | European Grade | Standard | Chemical Composition |
Application Area |
Specific Product |
|---|---|---|---|---|---|
| Ti 6Al-4V | Ti64 | ASTM B265 | 90% Ti, 6% Al, 4% V | Aerospace, Medical Devices | Aircraft components, Implants |
| Grade 2 | Ti40A | ASTM B265 | >99% Ti, O 0.25% | Marine, Chemical Processing | Hulls, Heat Exchangers |
| Grade 5 | Ti-6Al-4V | ASTM F136 | 90% Ti, 6% Al, 4% V | Aerospace, Automotive | Jet engines, Car exhaust systems |
| Grade 12 | Ti-0.3Mo-0.8Ni | ASTM B265 | >99% Ti, 0.3% Mo, 0.8% Ni | Chemical, Marine | Tanks, Valves |
| Ti 5Al-2.5Sn | NA | ASTM B265 | 90% Ti, 5% Al, 2.5% Sn | Aerospace, Energy | Airframe structures, Reactors |
| U.S. Grade | European Grade |
Chemical Composition (wt%) |
|---|---|---|
| Ti 6Al-4V | Ti64 | Ti90, Al6, V~4, Fe<0.25, O<0.2, N<0.05, C<0.08, H<0.015 |
| Grade 2 | Ti40A | Ti~99.2, Fe<0.3, O<0.25, N<0.03, C<0.08, H<0.015 |
| Grade 5 | Ti-6Al-4V | Ti90, Al6, V~4, Fe<0.4, O<0.2, N<0.05, C<0.1, H<0.015 |
| Grade 12 | Ti-0.3Mo-0.8Ni | Ti98.9, Mo0.3, Ni~0.8, Fe<0.3, O<0.25, N<0.03, C<0.08, H<0.015 |
| Ti 5Al-2.5Sn | NA | Ti92.5, Al5, Sn~2.5, Fe<0.25, O<0.2, N<0.05, C<0.1, H<0.015 |
| U.S. Grade |
European Grade |
Density (g/cm³) | Melting Point (°C) | Thermal Conductivity (W/m·K) | Specific Heat Capacity (J/g·K) |
|---|---|---|---|---|---|
| Ti 6Al-4V | Ti64 | 4.43 | 1,660 | 6.7 | 0.52 |
| Grade 2 | Ti40A | 4.51 | 1,675 | 21.9 | 0.56 |
| Grade 5 | Ti-6Al-4V | 4.43 | 1,650 | 7.2 | 0.54 |
| Grade 12 | Ti-0.3Mo-0.8Ni | 4.48 | 1,630 | 17.5 | 0.58 |
| Ti 5Al-2.5Sn | N/A | 4.50 | 1,645 | 15.0 | 0.57 |
Most of our collaborations are with mechanical workshops and manufacturers, and this gives us practical insights into what exactly you need. Our experience translates into a smoother, more efficient working relationship with you.
Experience the next level of dental innovation with BaseTi's titanium disk & disc solutions.
Contact us to discover how we're transforming the landscape of dental excellence.
aerospace titanium sheet 200mm 1
