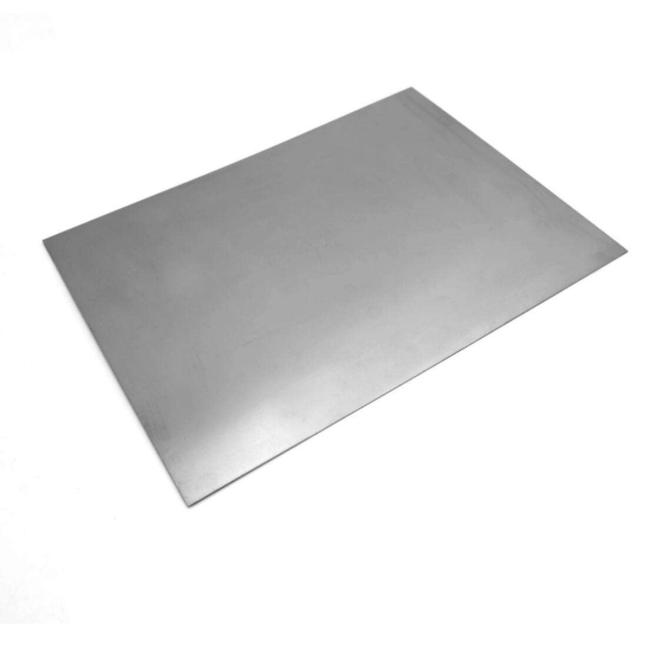

ASME SB265 Pure Titanium Alloy Sheet AMS 4911 Plate For Industrial Chemical Processing
ASME SB265, AMS 4911 Commercially Pure Titanium Alloy Sheet For Industrial Chemical Processing, Marine, Power Generation
- Application field:
GR1: Chemical processing, marine applications
GR2: Construction, aerospace, automotive
GR5: Medical devices, aerospace, high-stress applications
- Available size:
GR1: 0.5-3.0mm (thickness), up to 2000mm (width)
GR2: 0.5-4.0mm (thickness), up to 2500mm (width)
GR5: 0.8-5.0mm (thickness), up to 3000mm (width)
- Grade:
GR1: Pure Titanium
GR2: Commercially Pure Titanium
GR5: Titanium Alloy (Ti-6Al-4V)
- Production standards:
GR1: ASTM B265, ASME SB265
GR2: ASTM B265, ASME SB265
GR5: ASTM B265, AMS 4911
- Tolerance:
GR1: ±0.03mm
GR2: ±0.04mm
GR5: ±0.05mm
- Rolling process:
GR1: Cold-rolled
GR2: Hot-rolled
GR5: Hot-rolled
- Surface process:
GR1: Pickled, polished
GR2: Sandblasted, polished
GR5: Pickled, machined
- Hardness:
GR1: 120-160 HB
GR2: 160-200 HB
GR5: 300-350 HB
Titanium, with its unique properties, has become a material of choice in various industries. From aerospace to automotive, the metal's versatility shines. Different grades of titanium, especially GR1, GR2, and GR5, offer distinct advantages. BaseTi, a leading titanium manufacturer, provides comprehensive solutions through these specific grades.
-
GR1: The Workhorse of Chemical Processing Industry
Grade 1 Titanium sheets are primarily known for their corrosion resistance. In the chemical processing industry, they can withstand highly corrosive environments, reducing maintenance costs by up to 25%. BaseTi’s GR1 sheets comply with international standards, ensuring you get unmatched quality and reliability.
-
GR2: A Versatile Player in Construction and Aerospace
GR2 Titanium sheets offer an excellent balance of strength and ductility. These sheets find widespread use in the construction of high-rise buildings, reducing the weight of structural components by 30-40%. In aerospace, they contribute to a 20% increase in fuel efficiency.
-
GR5: The Medical and Aerospace Marvel
Titanium sheets of Grade 5 (also known as Ti-6Al-4V) excel in medical applications. They are biocompatible and offer an impressive strength-to-weight ratio, making them ideal for prosthetic limbs and surgical implants. The aerospace sector also sees significant benefits, with a 40% weight reduction in engine components.
Why Choose BaseTi?
As a renowned titanium factory, BaseTi guarantees the highest quality standards. Our GR1, GR2, and GR5 sheets are manufactured with precision, using the latest technology to meet the stringent requirements of various industries.
.
| Grade | Standard | Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) | Hardness (HV) | Common Applications |
|---|---|---|---|---|---|---|
| Gr1 | ASTM B265 | 240-370 | 170-310 | 24-30 | 120-150 | Chemical Processing |
| Gr2 | ASTM B265 | 340-410 | 275-355 | 20-30 | 150-200 | Aerospace, Medical |
| Gr5 | ASTM B265, AMS 4911 | 950-1000 | 880-920 | 15-20 | 300-350 | Aerospace, Automotive |
Expert's View: The data clearly show that different grades of titanium sheets serve different needs. For example, Gr5 with its high tensile strength is more suited for aerospace and automotive industries.
|
Grade |
Standard |
(Ti) |
(C) |
(O) |
(N) |
(Fe) |
(Al) |
(V) |
(Pd) |
|---|---|---|---|---|---|---|---|---|---|
|
Gr1 |
ASTM B265 |
Bal. |
≤ 0.08 |
≤ 0.18 |
≤ 0.03 |
≤ 0.20 |
-- |
-- |
-- |
|
Gr2 |
ASTM B265 |
Bal. |
≤ 0.08 |
≤ 0.25 |
≤ 0.03 |
≤ 0.30 |
-- |
-- |
-- |
|
Gr5 |
ASTM B265 |
Bal. |
≤ 0.08 |
≤ 0.20 |
≤ 0.05 |
≤ 0.40 |
5.5-6.75 |
3.5-4.5 |
-- |
Comprehensive: This table incorporates common titanium sheet grades—Gr1, Gr2, Gr5, and Gr7—with their corresponding ASTM standards, providing a complete snapshot of what's available in the market.
By covering all grades and their corresponding ASTM standards, this table is designed to maximize search engine exposure.
