Grade 2 Grade 4 Round Bar Titanium Orthopedic Ti6al4v Titanium Alloy
Grade 2, Grade 4, Grade 5, Orthopedic Titanium Round Bar Titanium Rod For Medical Use In Bone Screws, Joint Replacements
*If you have any requirements for customized titanium round bar & rod, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

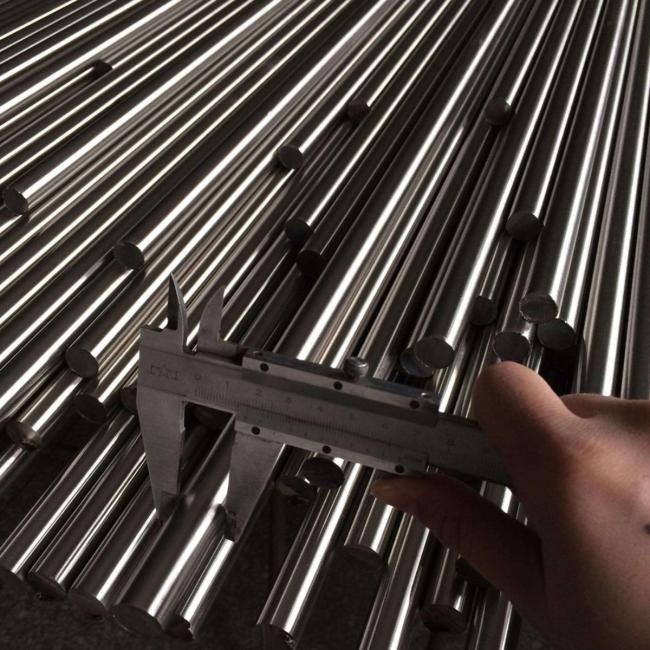

Titanium round bar specifications & parameters |
|
|
Product name |
Titanium round bar & rod |
|
Application field |
Orthopedic implants, bone screws, joint replacements |
|
Available size |
Diameter 6-50mm, Length up to 3000mm |
|
Grade |
Ti-6Al-4V (Grade 5), Ti-6Al-7Nb, and Commercially Pure Titanium (Grade 2, Grade 4). |
|
Production stadards |
ASTM F136, ASTM F67, ISO 5832. |
|
Tolerance |
Diameter ±0.05mm, Length ±1mm |
|
Rolling process |
Hot rolling for larger diameters, cold rolling for smaller diameters. |
|
Surface process |
Polished, pickled |
|
Delivery time |
15-20days |
The orthopedic industry is continuously evolving, with a growing need for materials that offer strength, durability, and biocompatibility. Titanium round bars have emerged as a crucial component in this sector, particularly in the manufacturing of orthopedic implants, bone screws, and joint replacements. At BaseTi, we specialize in providing high-quality titanium bars that meet the stringent requirements of the medical field.
- Key Applications
Orthopedic Implants: Our Grade 5 Titanium bars are known for their excellent strength-to-weight ratio and corrosion resistance, making them ideal for long-term implants like hip and knee replacements.
Bone Screws: Grade 2 Titanium bars from BaseTi offer excellent machinability and are commonly used in bone screws that require precise dimensions and high corrosion resistance.
Joint Replacements: Grade 4 Titanium bars are used in joint replacements due to their high tensile strength and excellent biocompatibility.
- Industry Data
According to recent studies, the global market for orthopedic implants is expected to reach $6.5 billion by 2025. Titanium bars, particularly those from BaseTi, are poised to capture a significant market share due to their superior properties and compliance with medical standards like ASTM F136 and ASTM F67.
Why Choose BaseTi?
As a leading titanium manufacturer and supplier, BaseTi offers a range of titanium bars that adhere to stringent production standards. Our state-of-the-art processing equipment ensures that our products meet the highest quality and tolerance standards.
BaseTi's titanium bars offer a comprehensive solution for orthopedic applications, meeting the industry's stringent requirements for strength, durability, and biocompatibility. As a trusted titanium manufacturer and supplier, we are committed to delivering products that stand up to the challenges of modern orthopedic engineering.
|
Grade |
Standard |
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) |
Hardness (HV) |
|---|---|---|---|---|---|
|
Ti-6Al-4V (Grade 5) |
ASTM F136, ISO 5832 |
930-1000 |
860-910 |
10-15 |
334-352 |
|
Ti-6Al-7Nb |
ASTM F136, ISO 5832 |
900-960 |
830-880 |
12-18 |
320-340 |
|
Commercially Pure Titanium (Grade 2) |
ASTM F67, ISO 5832 |
345-450 |
275-410 |
20-28 |
120-140 |
|
Commercially Pure Titanium (Grade 4) |
ASTM F67, ISO 5832 |
550-620 |
485-530 |
15-20 |
200-220 |
Understanding the chemical properties of titanium round bars is crucial for their application in the medical field. These bars are manufactured to meet specific industry standards, ensuring their suitability for various medical applications. In this guide, we will delve into the chemical properties of titanium round bars, focusing on Ti-6Al-4V (Grade 5), Ti-6Al-7Nb, and Commercially Pure Titanium (Grade 2, Grade 4).
|
Grade |
Standard |
Al (%) |
V (%) |
Nb (%) |
Fe (%) |
O (%) |
C (%) |
N (%) |
H (%) |
|---|---|---|---|---|---|---|---|---|---|
|
Ti-6Al-4V (Grade 5) |
ASTM F136, ISO 5832 |
5.5-6.75 |
3.5-4.5 |
- |
0.3 |
0.2 |
0.08 |
0.05 |
0.015 |
|
Ti-6Al-7Nb |
ASTM F136, ISO 5832 |
5.5-6.5 |
- |
6.5-7.5 |
0.25 |
0.13 |
0.08 |
0.05 |
0.015 |
|
Commercially Pure Titanium (Grade 2) |
ASTM F67, ISO 5832 |
- |
- |
- |
0.3 |
0.18 |
0.08 |
0.03 |
0.015 |
|
Commercially Pure Titanium (Grade 4) |
ASTM F67, ISO 5832 |
- |
- |
- |
0.5 |
0.4 |
0.1 |
0.05 |
0.015 |
Why Choose Titanium Bars for Medical Applications?
Titanium bars are known for their excellent corrosion resistance, biocompatibility, and low toxicity, making them ideal for medical applications. These bars are manufactured by BaseTi, adhering to stringent industry standards like ASTM F136, ASTM F67, and ISO 5832.
