Ti-6Al-4V, Ti-6Al-7Nb 1/2" To 24" DN15 To DN600 Customized Elbow Of Titanium Pipe Fittings For Petrochemical Medical
Ti-6Al-4V, Ti-6Al-7Nb 1/2" To 24" DN15 To DN600 Customized Elbow Of Titanium Pipe Fittings For Petrochemical Medical
*If you have any requirements for customized titanium elbow, we would be delighted to further discuss the technical specifications with you and provide a quotation.
*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.
Titanium pipe fittings specifications & parameters |
|
|
Product name |

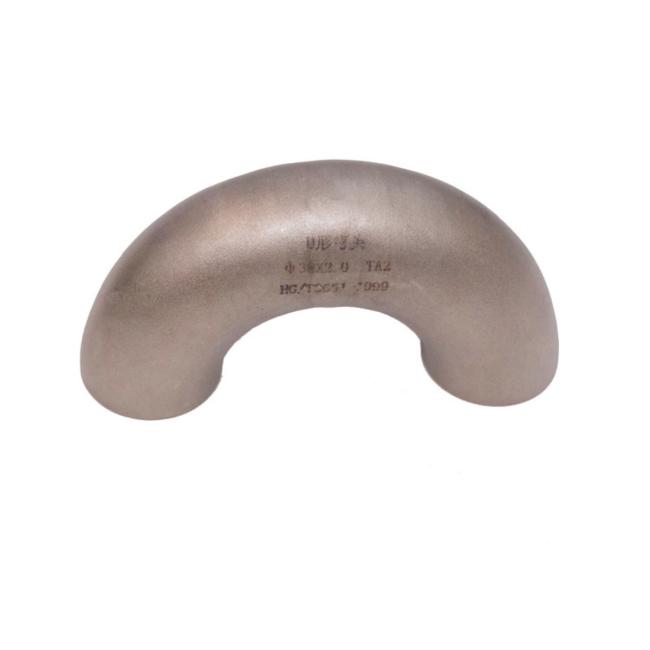

Titanium seamless elbow |
|
Application field |
Petrochemical, Aerospace, Medical Devices |
|
Available size |
1/2" to 24" (U.S.), DN15 to DN600 (EU) or customized size |
|
Material Grade |
Grade 2, Grade 5 (U.S.), Ti-6Al-4V, Ti-6Al-7Nb (EU) |
|
Wall Thickness |
Sch 10, Sch 40, Sch 80 |
|
Angle |
45°, 90°, 180° |
|
Connection Type |
Welded, Threaded, Quick-fit |
|
Surface Finish |
Pickling, Passivation |
|
Operating Temperature |
-60°C to 300°C |
|
Operating Pressure |
Up to 3000 PSI |
Material Grades and Their Applications
- Grade 2 Titanium Elbow
Applications:
Petrochemical Industries: Used in pipelines for transporting chemicals.
Desalination Plants: Essential for saltwater treatment processes.
Marine Applications: Utilized in shipbuilding and offshore drilling rigs.
Advantages:
Corrosion Resistance: Highly resistant to corrosion in acidic and alkaline environments.
Moderate Strength: Tensile strength of up to 345 MPa.
Oxidization Resistance: Can withstand oxidizing agents and high temperatures up to 400°C.
- Grade 5 (Ti-6Al-4V) Titanium Elbow
Applications:
Aerospace: Used in aircraft engines and structural components.
Medical Implants: Utilized in joint replacements and dental implants.
High-Stress Environments: Suitable for military and industrial applications.
Advantages:
High Strength-to-Weight Ratio: Exceptional strength with lower weight.
Fatigue Resistance: Can endure high-stress cycles without degradation.
High-Temperature Tolerance: Can withstand temperatures up to 600°C.
- Ti-6Al-4V (EU)
Applications:
European Aerospace: Used in the European Space Agency's spacecraft.
Automotive: Utilized in high-performance European cars.
Advantages:
Mechanical Properties: Similar to Grade 5 but tailored to European standards.
Corrosion Resistance: Highly resistant to rust and other forms of corrosion.
- Ti-6Al-7Nb (EU)
Applications:
Orthopedic Implants: Used in hip and knee replacements.
Medical Devices: Utilized in surgical instruments.
Advantages:
Biocompatibility: Highly compatible with the human body, reducing the risk of allergic reactions.
Strength: Comparable to Grade 5 but with added niobium for enhanced biocompatibility.
Why Choose BaseTi?
BaseTi distinguishes itself by specializing in a wide range of titanium elbow fittings that adhere to international production standards. Our commitment to quality and reliability is unmatched, making us a trusted choice for various industries.
BaseTi offers a comprehensive range of titanium elbow fittings suitable for diverse applications. With material grades like Grade 2, Grade 5, Ti-6Al-4V, and Ti-6Al-7Nb, we ensure unparalleled quality and performance, meeting the specific needs of aerospace, petrochemical, and medical sectors.
|
Material Grade |
Application Field |
Specific Products |
Production Standards (U.S.) |
Production Standards (EU) |
|---|---|---|---|---|
|
Grade 2 |
Petrochemical, Desalination Plants, Marine |
90-degree elbow, 45-degree elbow, Long Radius Elbow |
ASTM B363, ASME B16.9 |
EN 1092-1, EN 10253-4 |
|
Grade 5 (Ti-6Al-4V) |
Aerospace, Medical Implants, High-Stress Environments |
90-degree elbow, 45-degree elbow, Long Radius Elbow |
ASTM B363, ASME B16.9 |
EN 1092-1, EN 10253-4 |
|
Ti-6Al-4V (EU) |
European Aerospace, Automotive |
90-degree elbow, 45-degree elbow, Long Radius Elbow |
ASTM B363, ASME B16.9 |
EN 1092-1, EN 10253-4 |
|
Ti-6Al-7Nb (EU) |
European Orthopedic Implants, Medical Devices |
90-degree elbow, 45-degree elbow, Long Radius Elbow |
ASTM B363, ASME B16.9 |
EN 1092-1, EN 10253-4 |
| Material Grade | C (%) | N (%) | O (%) |
Al (%) |
V (%) | Nb (%) |
|---|---|---|---|---|---|---|
| Grade 2 | 0.08 | 0.03 | 0.25 | - | - | - |
| Grade 5 (U.S.) | 0.08 | 0.05 | 0.20 | 5.5-6.8 | 3.5-4.5 | - |
| Ti-6Al-4V (EU) | 0.08 | 0.05 | 0.20 | 5.5-6.8 | 3.5-4.5 | - |
| Ti-6Al-7Nb (EU) | 0.08 | 0.05 | 0.20 | 5.5-6.8 | - | 6.5-7.5 |
| Material Grade | Density (g/cm³) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HV) |
|---|---|---|---|---|---|
| Grade 2 | 4.51 | 345 | 275 | 20 |
150 |
| Grade 5 (U.S.) | 4.43 | 950 | 880 | 14 | 334 |
| Ti-6Al-4V (EU) | 4.43 | 950 | 880 | 14 | 334 |
| Ti-6Al-7Nb (EU) | 4.52 | 860 | 830 | 15 | 310 |
