Machinery Packaging Machine Blister Packaging Machines

CE Accurate Blister Packing Machine Thermoforming Blister Packaging Machine

Price Negotiable
Price: USD18000-20000/unit
MOQ: 1unit
Delivery Time: 20-25 work days
Brand: LEIYUE
Product Description

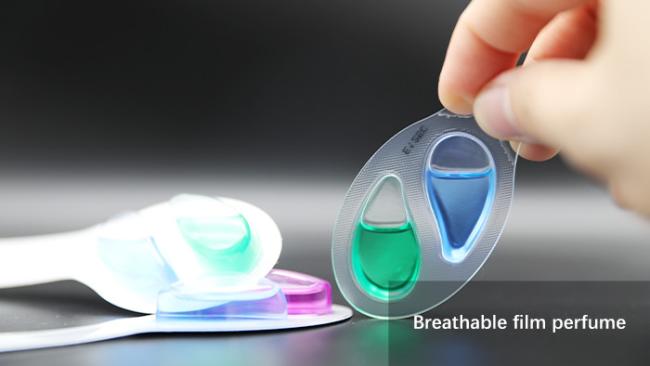

Kitchen toilet deodorization breathable film perfume blister packaging machine





Kitchen toilet deodorization breathable film perfume blister packaging machine is a specialized automated packaging machinery used for packaging perfume with breathable film. Its main working principle is to feed the breathable film roll material into the equipment, and then through heating, molding, and bonding processes, to make the breathable film into a blister-shaped packaging material suitable for perfume packaging. Finally, the perfume is filled, sealed, and cut into finished products.





The main advantages of the breathable film perfume blister packaging machine include:



1.High efficiency and automation: The breathable film perfume blister packaging machine has the characteristics of high efficiency and automation, which can realize a fast packaging production line and automatically complete various packaging processes, thereby improving production efficiency.



2.Strong adaptability: The breathable film perfume blister packaging machine can flexibly adjust packaging process parameters according to different packaging sizes, material thicknesses, and breathable performance requirements, and adapt to different packaging needs.



3.Good packaging effect: The breathable film perfume blister packaging machine can produce blister-shaped packaging materials with good breathability, aesthetics, and practicality, providing better packaging protection and display effect for perfume products.





Technical Specifications:



Model DPP-150
Cutting frequency 10-32times/min
Capacity 600-1920 plates/h
Max shaping areas and depth 140*110*14mm
Air pressure 0.4-0.6MPa/ ≥0.3m³/min
Power supply 380V/50Hz 3.8KW
Main motor power 1.5KW
PVC hard pieces (width)155*(thickness)0.25-0.5mm
PTP aluminum foil (width)155*(thickness)0.025-0.05mm
Dialysis paper (width)155*50-100g
Mould cooling tap water or recycling water
Machine dimensions 2460*650*1550mm
Net weight 820kg





Workflow:



Heating of PVC material→PVC blow molding→Automatic filling→Aluminum foil heat sealing→Finished product punching and cutting
