10Kwh Rackmount Lithium Battery Smart Bms For Energy Storage System
Solar Battery 10Kwh Smart Bms System To Optimize The Performance Rackmount Lithium Battery For Energy Storage System
Parts List(does not come with the battery cells)
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 100/150/200A 16S BMS
1 * Weak electric switch
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * Fuse
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
4 * Battery Terminals (P+ Terminal and P- Terminal)
16 * EVA Boards(for cells)
16 * Epoxy Boards
Features
1. Rack Mounted Lithium battery has LCD screen,convenient setting buttons
2. APP Monitor on your smartphones,and cables&accessories ready for installation
3. To welcome the world cooperation we accept OEM with your logo design
Rackmount Lithium Battery Specification
| Model | 51.2V50Ah | 51.2V100Ah | 51.2V200Ah |
| Nominal voltage | 51.2V | ||
| Nominal capacity (kwh) | 2.56 | 5.12 | 10.24 |
| Cell type | LiFePO4 | ||
| Standard charge voltage | 54.6V(adjustable) | ||
| Max charge current | 50A | ||
| Discharge cut-off voltage | 42.5V(adjustable) | ||
| Max discharge current | 50A | ||
| Display | LCD(Optional) | ||
| Communication interface | CAN/RS485/RS232 | ||
| Cycle life | >6000 Cycles (80%DOD) | ||
| Charge temperature range | 0~45°C | ||
| Discharge temperature range | -20~60°C | ||
| Color | Black | ||
| Dimension (mm) | 442x410x133 3U |
442x410x177 4U |
550x442x220 5U |
| Weight | About 35Kg | About 42Kg | About 84Kg |
| Installation method | Rack Mount | ||

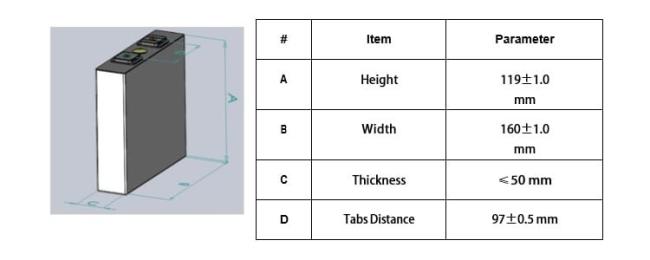

Cell Specification of Rackmount Lithium Battery
Operation Pannel of Rackmount Lithium Battery

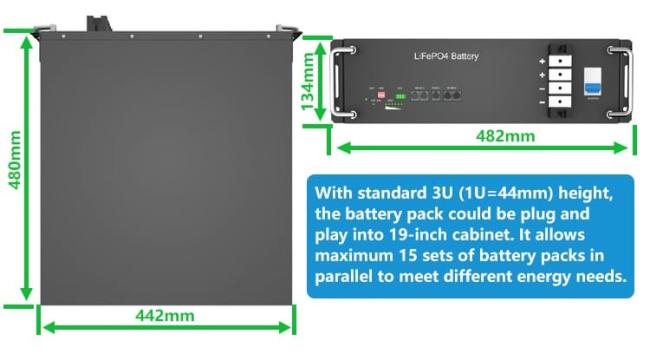

Size of Rackmount Lithium Battery

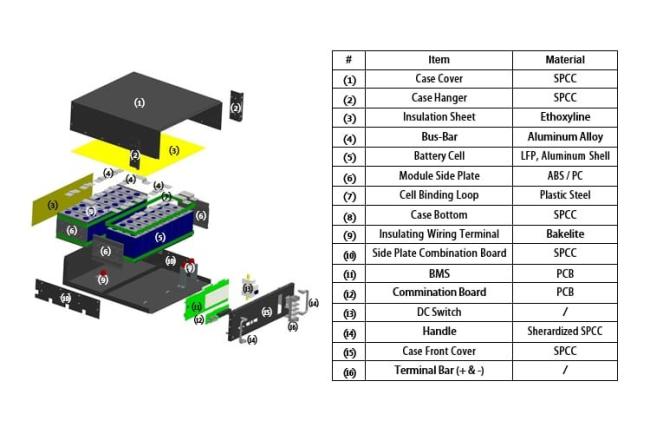

Structure of Rackmount Lithium Battery
Application of Rackmount Lithium Battery
