30m Liquid Hygienic Radar Type Level Transmitter non contact
30m Liquid-Hygienic Radar Level Instrument For Food Manufacturing 80GHz Radar Level Meter Gauge Transmitter Sensor
Product Description:
80GHz non-contact radar level sensor can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, this series is an ideal solution for level control in the production process.
Features:

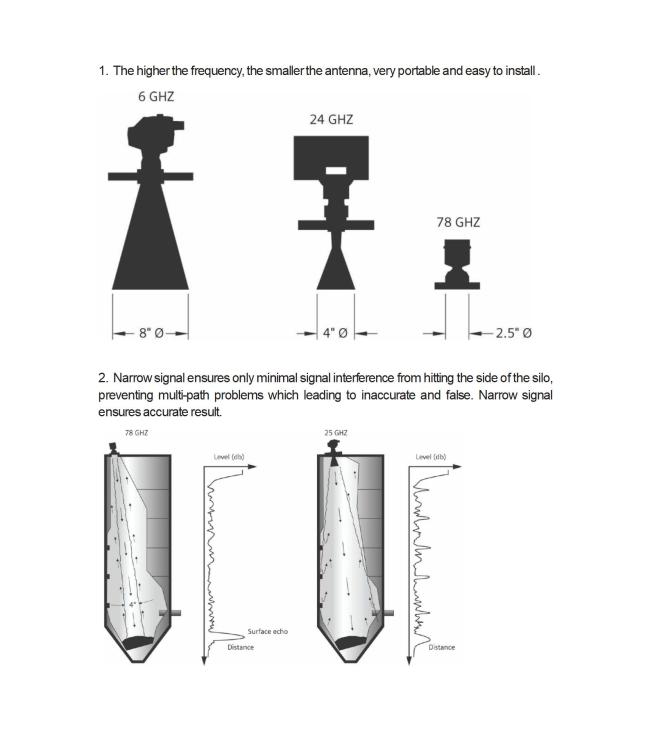

- The size of the antenna is small, which makes it easy to install. This non-contact radar will not cause any wear or pollution. It is almost immune to corrosion and foam and it is almost unaffected by the changes in the water vapour, temperature and pressure in the atmosphere. The beam angle is also small, concentrating the energy and thus enhancing its echo ability. As a result, it is more likely to avoid other interference objects.
![]()
Technical Parameters:
| Model | DTS-RD-83-B |
|---|---|
| Application | Liquid-hygienic |
| Measuring Range | 30m |
| Frequency | 80GHz |
| Process Connection | Clamp from φ50.5 |
| Process Pressure | -0.1~1MPa |
| Material | Stainless Steel+PTFE |
| Power Supply | Two Wires DC24±6V; Four Wires AC220V |
| Process temperature | -40~+120℃ |
| Protection Level | IP67 |
| Accuracy | ±2mm |
| Signal output |
4…20mA/HART |
| Digital output | RS485/MODBUS |
| Connection | Bluetooth/NB-iot/4G |
Applications:
Packing and Shipping:
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
