25mm To 230mm 4 Side Moulder Machine 4 Side Planer Machine

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

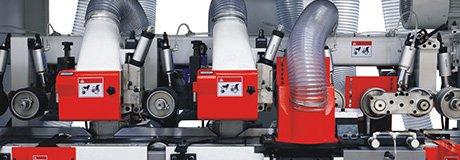

4 Side Moulder Machine - 23 SERIES (Heavy Type, Max Width 230mm)

Professional solution for processing Hard wood strip, floor, doors and large cutting
capacity strips.

Model		VH-M623	VH-M523
Specification	Working width	25-230	25-230
	Working thickness	8-100	8-100
	Working table length	1970	1700
	Feeding speed	6-36	6-36
	Mian spindle diameter (mm)	Φ 40	Φ 40
	Main spindle revolution (r/min)	6500	6500
	Air pressure (Mpa)	0.6	0.6
Motor power (KW)	1st Lower Shaft	5.5kw/7.5HP	5.5kw/7.5HP
	Right vertical spindle	5.5kw/7.5HP	5.5kw/7.5HP
	Left vertical spindle	5.5kw/7.5HP	5.5kw/7.5HP
	1st Upper Shaft	7.5kw/10HP	7.5kw/10HP
	2nd Upper Shaft	5.5kw/7.5HP
	2nd Lower Shaft	5.5kw/7.5HP	5.5kw/7.5HP
	Feeding beam lifting	0.55kw/0.75HP	0.55kw/0.75HP
	Feeding motor	4kw/5.5HP	4kw/5.5HP
	Total power	39.55kw/54.3HP	34.05kw/46.26HP
Cutter diameter	1st Lower Shaft	Φ 125	Φ 125
	Right Vertical spindle	Φ 125-Φ 180	Φ 125-Φ 180
	Left vertical spindle	Φ 125-Φ 180	Φ 125-Φ 180
	1st Upper Shaft	Φ 125-Φ 180	Φ 125-Φ 180
	2nd Upper Shaft	Φ 125-Φ 180
	2nd Lower Shaft	Φ 125-Φ 200	Φ 125-Φ 200
Remark	Feeding wheel diameter (mm)	Φ140	Φ140
Remark	Dust outlet diameter (mm)	Φ140	Φ140

Left vertical CNC mobile device (optional)

Interface+plc system, with accurately control to top spindle(Height) and left spindle (width)

Electric lift shaft (standard)

The central lubricating system that is convenient for maintenance

Exquisite production technology, internal precision machinery

FAQS

Q: What is your after-sale service?A: 1. We have one year warranty lifetime maintenance service. 2. For any technical problems you can contact us immediately. We have overseas repair and On-going Technical Support.
Q: What is the ways of packing?A: Standard export package or packed as client’s requirement.
Q: What is the delivery time of the products?A: 1. 30-45 days after deposit received, this delivery time is only for our standard products. 2. Some special orders would require more time. For more detailed timing please send us inquiry or contact us directly.
Q: How can I get the latest price and model details?A: 1. You can send us inquiry on the message board on the bottom left,we will offer you with details. Or contact us directly through email, phone. 2. Online-chat is available, you can contact us with QQ, Weixin, whatsapp, skype etc.
