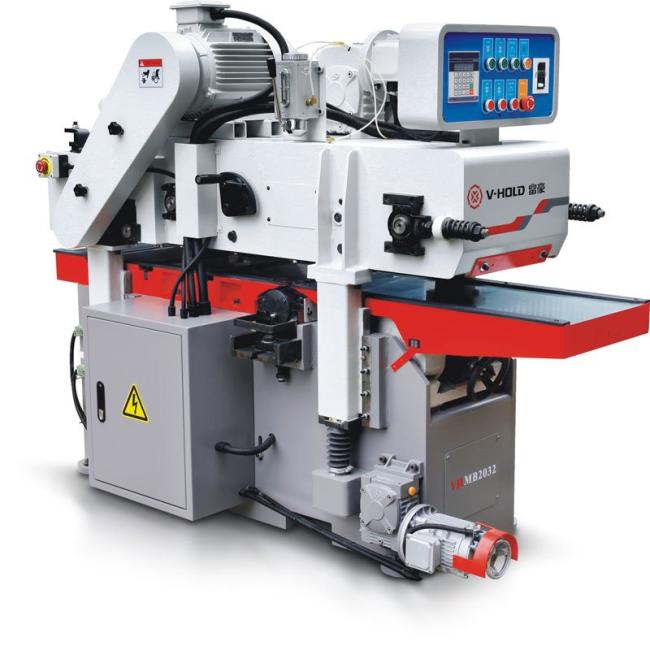

170mm Double Side Planer High Efficiency 2 Sided Moduler For Laminated Timber
Double Sided Planer Supplier - VH-MB2040 Double Side Planner
Professional solution for processing Soft wood strip, Medium cutting capacity strip,
MDF strip, HDF strip, Glued laminated timber and Square boards
| SPECIFICATION AND MODEL | MB2040 |
| Max. working width (mm) | 405 |
| Max. working thickness (mm) | 170 |
| >Min. working thickness (mm) | 15 |
| Min. working length (mm) | 320 |
| Cutter knife | 4 |
| Flat knife spec | 405*30*6 |
| Spindle rotation rate | 5000 |
| Feeding speed | 5～16 |
| Spindle dia | Φ 110 |
| Top spindle power | 7.5 |
| Bottom spindle power | 5.5 |
| Feeding motor power | 1.5 |
| Elevating motor power | 0.37 |
| Total power | 14.87 |
| Dimension | >2220*950*1650 |
| SPECIFICATION AND MODEL | MB2063 | MB2045D | MB2040 | MB2032 |
| Max. working width (mm) | 635 | 450 | 405 | 320 |
| Max. working thickness (mm) | 200 | 150 | 170 | 120 |
| Min. working thickness (mm) | 15 | 15 | 15 | 15 |
| Min. working length (mm) | 320 | 320 | 320 | 320 |
| Cutter knife | 4 | 4 | 4 | 4 |
| Flat knife spec | 635*30*6 | 450*30*6 | 405*30*6 | 320*30*6 |
| Spindle rotation rate | 5000 | 4500 | 5000 | 5000 |
| Feeding speed | 5～20 | 5～16 | 5～16 | 5～16 |
| Spindle dia | Φ 110 | Φ 110 | Φ 110 | Φ 110 |
| Top spindle power | 11 | 7.5 | 7.5 | 5.5 |
| Bottom spindle power | 7.5 | 5.5 | 5.5 | 4 |
| Feeding motor power | 2.2 | 2.2 | 1.5 | 1.5 |
| Elevating motor power | 0.37 | 0.37 | 0.37 | 0.37 |
| Total power | 21.07 | 15.57 | 14.87 | 11.37 |
| Dimension | 2700*1268*1680 | 2280*1260*1680 | 2220*950*1650 | 1880*780*1650 |
Working width 320mm
Attached flat knife shaft

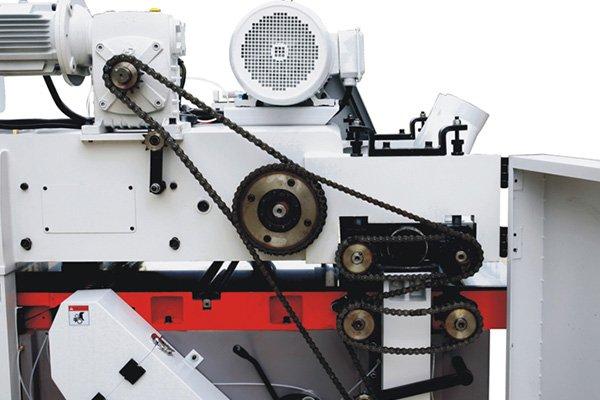

Feeding Frequency

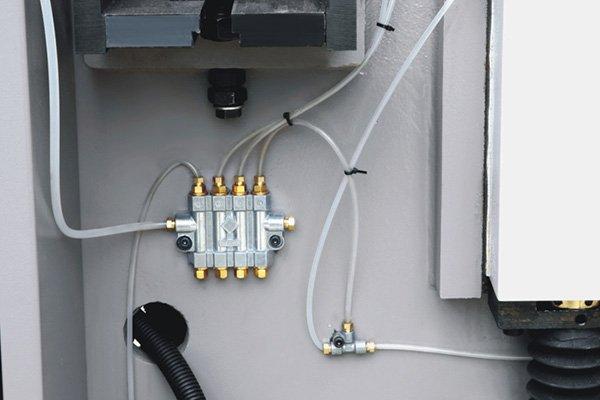

Centralized lubrication system
The configuration set to the cent ralized lubrication system, facilitate the lifting system maintenance lubrication.

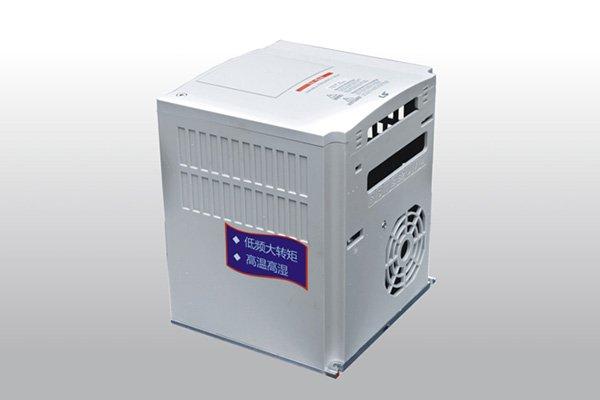

Feeding frequency inverter
Digital display, easy operation, energy saving,reduction of mechanical transmission wear.

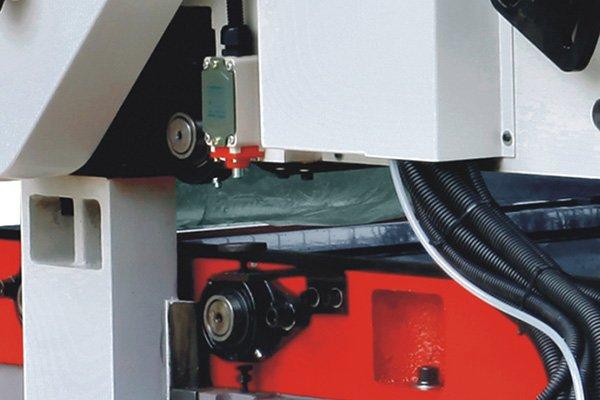

Thickness Quick set
Simply preset thickness timber placed at the microswitch, you can do simple thickness settings.

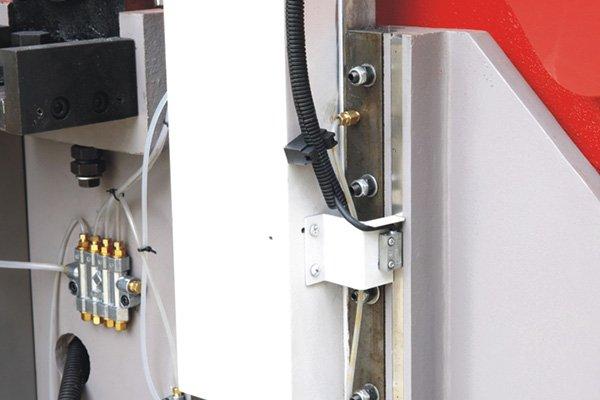

Gate magnetic induction switch
The thickness of the display gate magnetic sensors,accuracy is much higher than conventional proximity sensor.

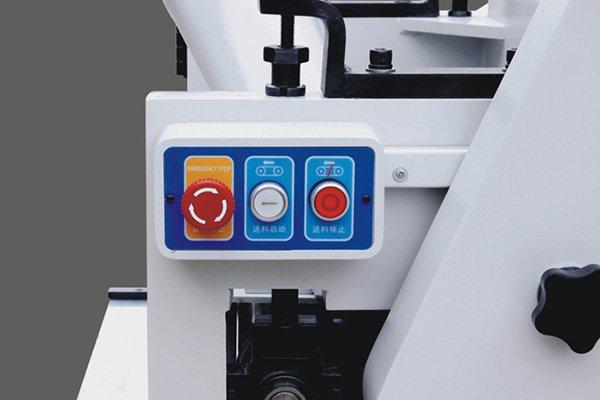

Rear operation box
Machine emergency stop or abnormal reactions only feed stop and start.
Feeding device is with clutch, which can prevent overload and give a safe operation.
Auto grease device keeps the machine always lubricated during working.
Alarm detector: When overload or stripping occurs with feeding chain, the alarm switch will give out signal alarm.
The product is provided with imported digital display device,which can be operated directly to processing thickness from operating panel with the accuracy up to 0.05mm; besides,upper and lower planning motor is provided with current meter for visual observing if it is overloaded while working.
Exquisite production technology, internal precision machinery.
- Q: What is your after-sale service?A: 1. We have one year warranty lifetime maintenance service. 2. For any technical problems you can contact us immediately. We have overseas repair and On-going Technical Support.
- Q: What is the ways of packing?A: Standard export package or packed as client’s requirement.
- Q: What is the delivery time of the products?A: 1. 30-45 days after deposit received, this delivery time is only for our standard products. 2. Some special orders would require more time. For more detailed timing please send us inquiry or contact us directly.
- Q: How can I get the latest price and model details?A: 1. You can send us inquiry on the message board on the bottom left,we will offer you with details. Or contact us directly through email, phone. 2. Online-chat is available, you can contact us with QQ, Weixin, whatsapp, skype etc.
