China 22kW Multi Rip Saw 22mm Table Double Side Moduler for sale

22kW Multi Rip Saw 22mm Table Double Side Moduler

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

VH-ML9321 Multiple Rip Saw with Double-side planer

VH-ML9321 Multiple rip saw with Double side planer

FUNDATION:The front part is the top and bottom horizontal spindle, and multiple rip saw in the behind, which is a woodworking machine combining the functions of double-sided planer and multi-saw.

The feeding system is use heavy duty reducer to drive the universal joint drive roller.

If the width of the wood exceeds the maximum working width of the model, we can open the lid to process the wood more easily and flexibly.

The power of VH-ML9321 is 22kW, which can process wood with thickness 70 mm and width 210 mm.

For boxboard,shutter,wood joist/wood keel.

Technical data

SPECIFICATION AND MODEL	VH-ML9321
Max. working width(mm)	210mm
Max. working thickness(mm)	70mm
Feeding speed(m/min)	4-18m/min
Top spindle diameter(mm)	40mm
Top spindle rotation rate(r/min)	6000r/min
Top spindle movement(mm)	20mm
Top spindle motor power(kw)	5.5kw
Bottom spindle diameter(mm)	40mm
Bottom spindle rotation rate(m/min)	6000r/min
Bottom spindle motor power(kw)	4kw
Cutting spindle diameter(mm)	50mm
Cutting spindle rotation rate(m/min)	4000r/min
Max. saw blade diameter(mm)	300mm
Spindle power(kw)	22kw
Spindle elevating motor(kw)	0.37kw
Feeding motor power(kw)	2.2kw
Elevating motor power(kw)	0.37kw
Total power(kw)	34.44kw
Air pressure(Mpa)	0.6Mpa
Dimension(mm)	3070×1230×1540mm

Excellent properties for VH-ML9321


The foregoing press-plates can process short materials.	Working table and rear pressure panel use U shape guiding groove structure, ensure the arcsymmetry of the multiple leaves.	Anti-return system, gureented the operator to be not damaged by returned wood chips.	Exquisite production technology with orderly inside.

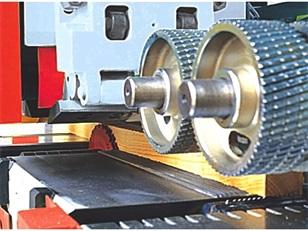

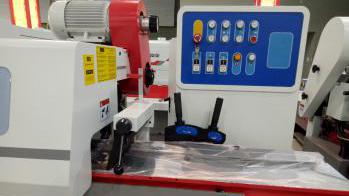

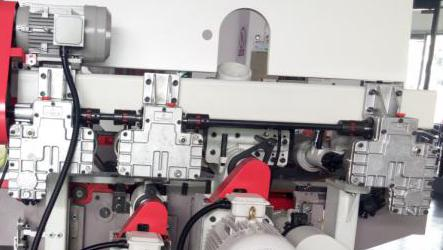

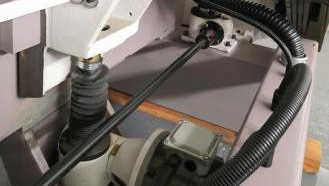

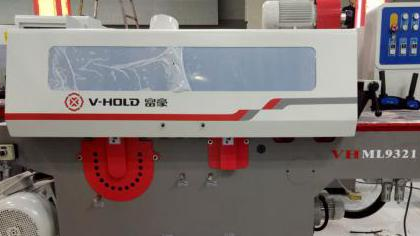

Semi-open cover The outer cover of the equipment is in the form of semi-open, which can make the wood exceeding the processing width pass smoothly, flexible and convenient	Simple operation interface The operation panel adopts Siemens upper second house APT button, and all operations are completed on the panel, equipped with fault indicator, emergency stop, electric lift button and so on.	Heavy-cut gearbox The feeding wheel is driven by universal joint and gearbox to ensure no power loss and strong feeding.	Electric lifting of saw shaft The button type is used to control the rise and fall of the saw blade spindle, which is convenient and fast, and improves the operation efficiency.

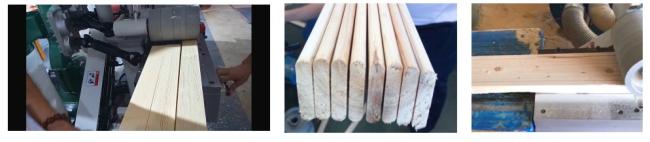

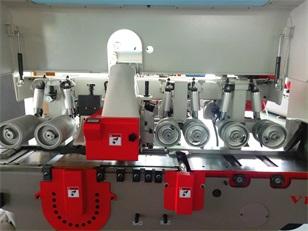

Product show

PROCESSING TECHNIC

Rigid body structure of bed

Cast cast iron with shock absorption performance

to ensure smooth operation of tool shaft and

feeding system.

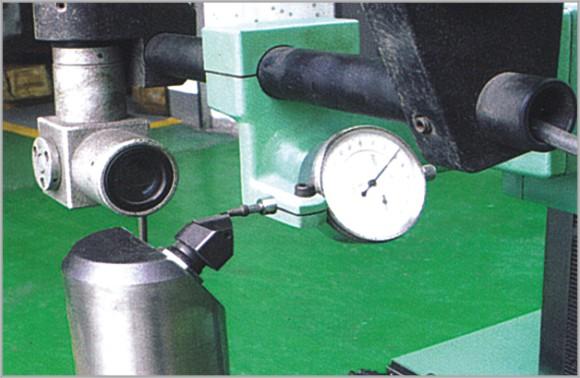

Excellent processing equipment

Meticulous careful production to ensure that each part is almost perfect!

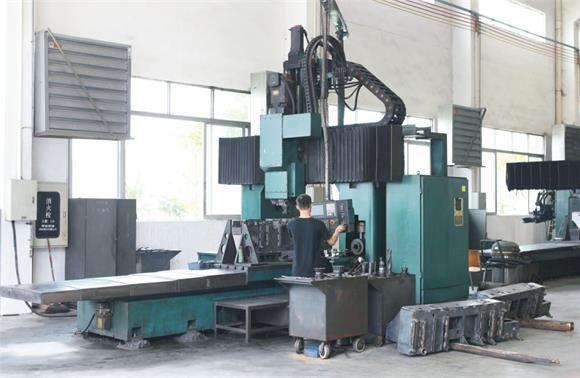

Japan Four-axis Joint Machining Centre

All shaft frame, reducer and other accessories, the company is equipped with its own processing

center to ensure the precision of accessories.

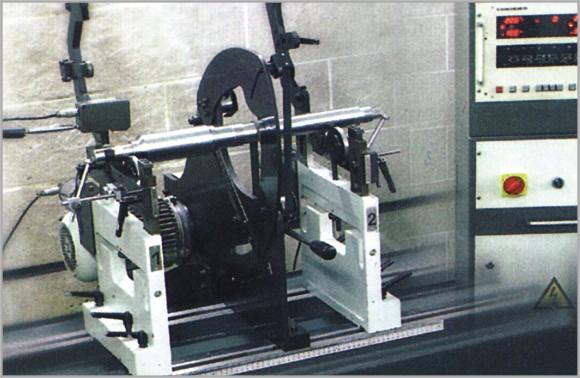

Spindle Dynamic Balance Testing

Each spindle carries out dynamic balance testing, equipped with imported SKF bearings to ensure

high precision and smooth operation of the cutter

shaft.

Accreditation: QUALIFICATION

FAQS

Q: What is your after-sale service?A: 1. We have one year warranty lifetime maintenance service. 2. For any technical problems you can contact us immediately. We have overseas repair and On-going Technical Support.
Q: What is the ways of packing?A: Standard export package or packed as client’s requirement.
Q: What is the delivery time of the products?A: 1. 30-45 days after deposit received, this delivery time is only for our standard products. 2. Some special orders would require more time. For more detailed timing please send us inquiry or contact us directly.
Q: How can I get the latest price and model details?A: 1. You can send us inquiry on the message board on the bottom left,we will offer you with details. Or contact us directly through email, phone. 2. Online-chat is available, you can contact us with QQ, Weixin, whatsapp, skype etc.
