Lifepo4 Residential Storage Battery 51.2V 184Ah Lithium Wall Battery For House Solar System
PW51184-S Power Storage Wall Lithium Battery for Home-ESS
Redway Power’s PW51184-S is a high-capacity power storage wall system aimed at assisting consumers and companies in achieving energy independence and sustainability. This device, with a capacity of 9.4 kWh, is ideal for storing energy from renewable sources such as solar panels or wind turbines. It’s an excellent choice for those with high energy demands or for business facilities with significant energy usage.
Features
● Backup Protection
Power storage wall is a battery that stores energy, detects outages and automatically becomes your home’s energy source when the grid goes down. Unlike gasoline generators, Power storage wall keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days.
● Self-Powered Home
At night, the battery can provide your home with clean energy that you’ve generated from solar during the day.
● Time-Based Control
If your utility offers Time-of-Use rates, you can use less expensive solar energy you’ve already generated to avoid electrical charges during more expensive rate periods.
● Modern and Compact
With easy installation and a minimalist design, Power Storage Wall complements a variety of home styles. The compact, all-in-one construction features versatile mounting options for indoor or outdoor spaces.
| Cell Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 184Ah |
| Norminal Energy | 9.42kWh |
| Working Voltage | 40~58.4V |
| Dimension (L*W*H) | 21*28.34*6.96in 535*720*176.8mm |
| Net Weight | 80kg |
| Charging Temp.Range | 0~55°C |
| Discharging Temp.Range | -20~60°C |
| Communication | CAN/RS485 |
| Design Life | 20 Years |
| Cycle Life(25°C@80%DOD) | >6000 Cycles |
| IP Grade | IP21 |
| Color | Gray |
| Warranty Document Supplied | Yes |
| Optional Functions | LCD screen, Circuit breaker |
| Compatible Inverters | Victron/SMA/Goodwe/SRNE/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye/etc. |
| Certification & Safety Standard | IEC62619 / CE / UN38.3 |

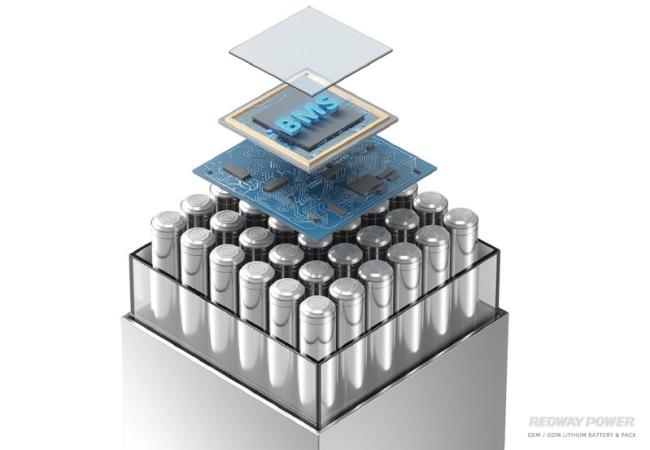

BATTERY MANAGEMENT SYSTEM (BMS)

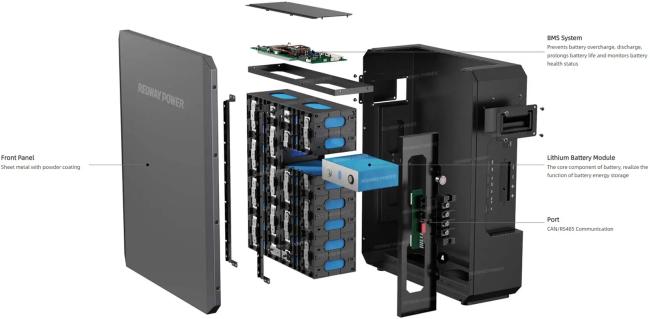

- The Internal Structure -

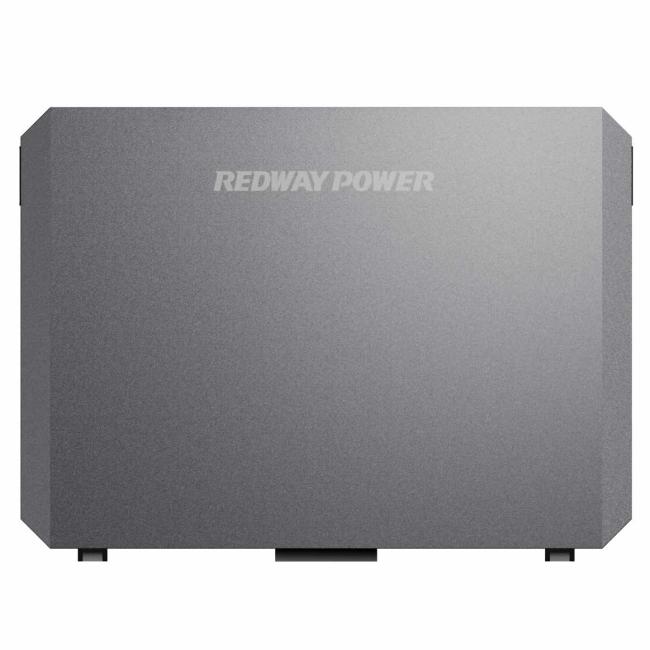

51.2V184Ah Power Storage Wall
Safety and Long-life
CUSTOM BATTERY SOLUTIONS
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
