Lifepo4 Stackable Lithium Batteries 51.2V Lithium Battery Pack With Inverter
Product Description

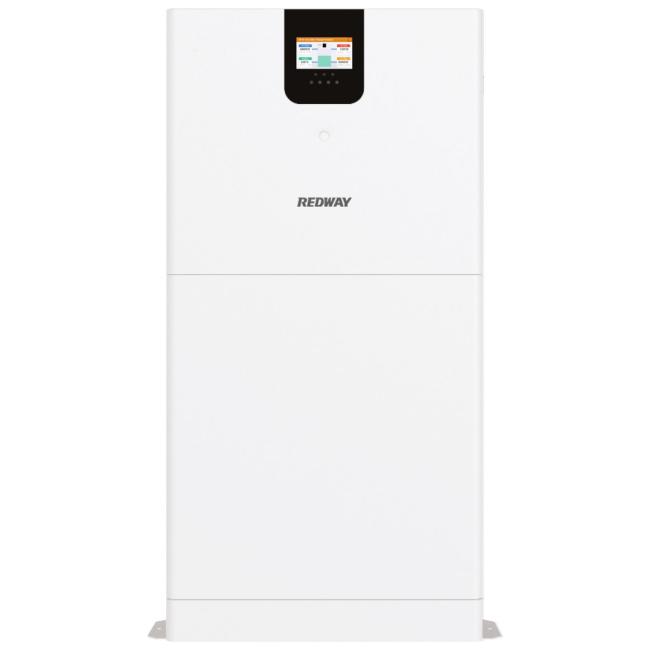

51.2V all in one lifepo4 solar energy storage lithium battery pack with inverter
If you’re looking for a reliable solar battery solution, then Redway EOV Series 48V stackable lithium batteries are the perfect choice. With a brand name, model number, voltage, weight, and dimensions, these batteries offer an ideal solution for your solar energy storage needs. Additionally, their 5-year warranty guarantees that your investment is secure for years to come.
With their low weight and small dimensions, the Redway EOV Series 48V and 51.2V batteries are easily installed, making them ideal for use in a variety of solar energy storage systems. They are perfect for both residential and commercial applications, providing a reliable source of power for your solar panels, lights, and other electrical devices.
Features
LiFePO4 Battery Chemistry: The battery pack utilizes LiFePO4 (lithium iron phosphate) battery chemistry, known for its high safety, stability, and long cycle life. LiFePO4 batteries are less prone to thermal runaway and offer a longer lifespan compared to other lithium battery chemistries.
Solar Energy Storage: The battery pack is specifically designed for solar energy storage applications. It can store excess solar energy generated during the day for use during periods of low or no sunlight, allowing for a more efficient and reliable utilization of solar power.
Integrated Inverter: The battery pack features an integrated inverter, eliminating the need for a separate inverter unit. The inverter converts the stored DC (direct current) energy into AC (alternating current) power, making it suitable for powering AC appliances and devices.
Multiple Protection Mechanisms: The battery pack is equipped with multiple protection mechanisms, including overcharging protection, over-discharging protection, overcurrent protection, and short circuit protection. These safeguards ensure the safety and longevity of the battery pack and connected devices.
Plug-and-Play Installation: The all-in-one design of the battery pack with the integrated inverter simplifies the installation process. It is designed for easy plug-and-play installation, reducing the complexity and time required for system setup.
Communication and Monitoring: The battery pack may include communication capabilities, allowing for remote monitoring and control of the system. This enables users to monitor the battery status, energy production, and consumption, enhancing system visibility and management.
| INVERTER | ||
| Items | EOV48-5.0S-C1 | EOH48-5.0U-C1 |
| Rated AC Output Power | 5,000W | 5,000W |
| Rated AC Output Voltage | 230Vac | 120Vac |
| Rated AC Output Frequency | 50/60Hz | 50/60Hz |
| Max.PV Open Circuit Voltage | 500Vdc | 500Vdc |
| MPPT Voltage Range | 120~450Vdc | 120~450Vdc |
| Max.PV Input Power | 5,000W | 5,000W |
| Num. Of MPPT | 1 | 1 |
| BATTERY | |
| Items | EOV48-5.0A-E |
| Battery Energy | 5.12kWh |
| Battery Type | Li-ion |
| Rated Battery Voltage | 51.2V |
| Battery Capacity | 100Ah |
| Constant Charging Current | 100A (1C) |
| Constant Discharging Current | 100A (1C) |
| Depth of Discharging | 80% |
| Parallel Capacity | 1-4 |
| Life-Span 80%DOD | 6000 |
| GENERAL | |
| Installation Method | Horizontal |
| Noise | <60dB |
| Nominal Operation Altitude | <2000m |
| Communication | RS485/CAN/WIFI |
| IP Grade | IP20 |
| Dimension (Inverter) | 600*184*500mm |
| Weight (Inverter) | 30kg (66lb) |
| Dimension (Battery) | 600*184*610mm |
| Weight (Battery) | 60kg (132lb) |
1.Adopt high safety, long life, excellent performance LiFePO4 prismatic cells;
2. Over 6000 times of cycle life;
3. Intelligent BMS to ensure a safe reliable operation;
4. It adopts inverter of high quality, with strong carrying capacity, stable and reliable operation and high safety performance.
5. Multiple communications including RS232,RS485, CAN;
6. Occupies a smaller area and can be installed quickly and easily.
CUSTOM BATTERY SOLUTIONS
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
