High Voltage Residential Storage Battery 50Ah 307.2V Lithium Battery For Home Solar

Price Negotiable
Price: Negotiable
MOQ: 1pcs
Delivery Time: 20Days
Brand: Redway
Product Description



   Product Description

High Voltage Energy Storage Lithium Battery for Home Energy Storage

The 307.2V 50Ah high-voltage stackable home energy storage battery is a compact and efficient solution designed for residential applications. With its high voltage and stackable design, it offers homeowners a reliable and scalable energy storage system.



This battery is specifically designed for home use, allowing households to store excess energy generated from renewable sources like solar panels. The high voltage of 307.2V ensures efficient energy conversion and delivery, maximizing the utilization of stored energy.



With a capacity of 50Ah, this battery provides homeowners with a substantial amount of stored energy. It can power essential appliances during grid outages or serve as a backup power source, ensuring uninterrupted electricity supply.



The stackable design enables easy expansion of the system as energy needs grow. Homeowners can add multiple units, increasing both capacity and flexibility to meet their specific energy requirements.

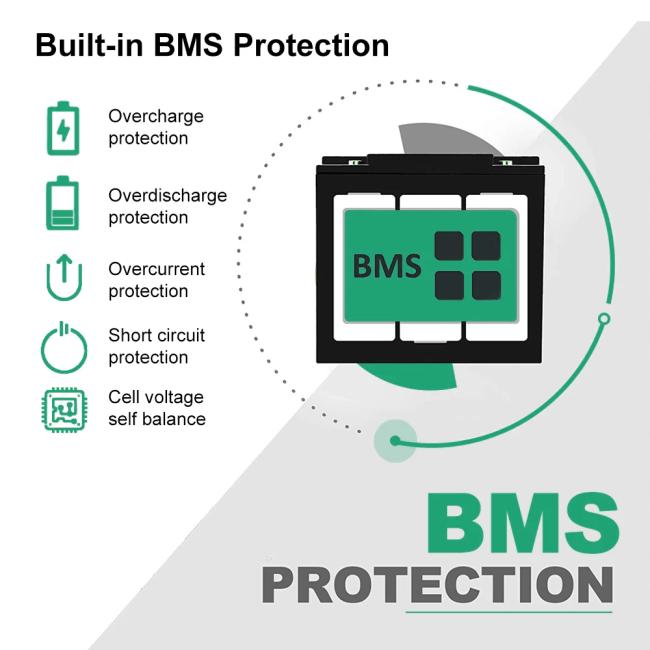

The high-voltage stackable home energy storage battery is designed with safety features to prevent overcharging, over-discharging, and other potential risks. These safety mechanisms provide peace of mind for homeowners.

By storing excess energy during the day and utilizing it during high-demand periods or at night, this battery helps reduce reliance on the grid and promotes self-sufficiency. It also contributes to a more sustainable and environmentally friendly lifestyle.



In summary, the 307.2V 50Ah high-voltage stackable home energy storage battery offers homeowners a reliable, scalable, and efficient solution for storing and utilizing renewable energy. Its high voltage, stackable design, and substantial capacity make it an ideal choice for residential energy storage needs.







Items Specification
Battery Module Quantity 3 4 5 6
Battery Model PM-HV10256
Nominal Battery Energy 15.36Wh 20.48Wh 25.6Wh 30.72Wh
Nominal Battery Capacity 50Ah
Dimension [L*W*H] 720*450*605 mm (28.34*17.71*23.81 inch) 720*450*782 mm (28.34*17.71*30.78 inch) 720*450*955 mm (28.34*17.71*37.59 inch) 720*450*1130 mm (28.34*17.71*44.48 inch)
Weight 133kg (293.21 lbs) 174kg (383.6 lbs) 215kg (474 lbs) 256kg (564.38 lbs)
Nominal Voltage 307.2V 409.6V 512V 614.4V
Operating Voltage Range 259.2V~345.6V 345.6V~460.8V 432V~576V 518.4V~691.2V
Nominal Power Output 9.21kW 12.28kW 15.36kW 18.43kW
Max. Power Output 15.36kW 20.48kW 25.6kW 30.72kW
Recommend Charging Current 25A
Recommend Discharging Current 25A
Battery Control Unit Model BCU1501







Features of high voltage stacked lithium batteries



Increased voltage: High-voltage stacked batteries are designed to stack multiple cells in series, resulting in a higher overall voltage output. This allows for improved energy density and enhanced power output.



Extended battery life: The increased voltage capability of high-voltage stacked batteries enables them to store more energy, leading to longer battery life. This is particularly beneficial in applications where extended runtime is required.



Reduced charging time: With their higher voltage, high-voltage stacked batteries can be charged at a faster rate compared to traditional batteries. This enables quicker charging times, making them more convenient for users.



Enhanced power density: The stacking of cells in a high-voltage configuration increases the power density of the battery. This means that high-voltage stacked batteries can deliver higher power output, making them suitable for power-hungry applications.



















CUSTOM BATTERY SOLUTIONS




Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.






All Redway Products Come with:




REDWAY PROMISE


           6000 TIMES CYCLES          ISO9001,ISO14001, OHSAS18001,             EXW, FOB, DAP,DDP
           5 YEARS WARRANTY          CE, CB, UL, KC, FCC, BIS, IEC62133.              T/T, L/C OPTIONAL
