SUN-3-6K-SG04LP1 3-6KW Hybrid Solar Inverter Single Phase 2 MPPT & Low Voltage Battery
Price:
$980.00/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Deye
Product Description
Products Description
Deye Hybrid Inverter
An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.
Deye hybrid inverters include single phase 3-16kW and three-phase 8-12kW, For the SUN-3K-SG04LP1-24-EU, it uses 24V battery bank and the rest of them adopts 48V battery. Also, the SUN-16K-SG01LP1-EU is the max single phase hybrid inverter on the global market.
The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the
connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.
Higher yields / Safe & Reliable / Smart / User-friendly
SUN 3.6/6K-SG,hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/6K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication
* Colorful touch LCD, IP65 protection degree
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 120A
* Max.16pcs parallel
* DC couple and AC couple to retrofit existing solar system
* Support storing energy from diesel generator
* 48V low voltage battery, safe and reliable
* Unique Smart Load application and Grid peak shaving function
* 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 120A
* Max.16pcs parallel
* DC couple and AC couple to retrofit existing solar system
* Support storing energy from diesel generator
* 48V low voltage battery, safe and reliable
* Unique Smart Load application and Grid peak shaving function
* 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
|

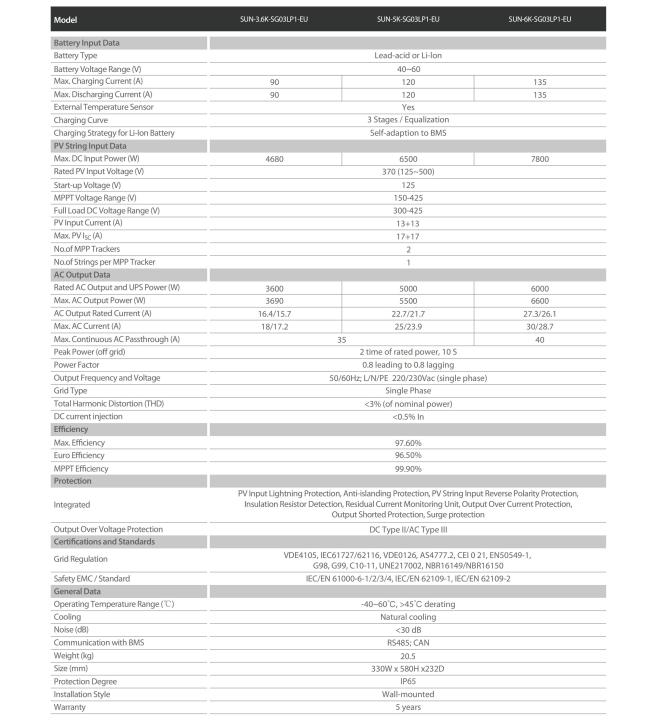

Model
|
SUN-3.6K-SG03LP1-EU
|
SUN-5K-SG03LP1-EU
|
SUN-6K-SG03LP1-EU
|
|||
|
Battery Input Data
|
|
|
|
|||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
|
|||
|
Battery Voltage Range (V)
|
40~60V
|
|
|
|||
|
Max. Charging Current (A)
|
90A
|
120A
|
135A
|
|||
|
Max. Discharging Current (A)
|
90A
|
120A
|
135A
|
|||
|
Charging Curve
|
3 Stages / Equalization
|
|
|
|||
|
External Temperature Sensor
|
Optional
|
|
|
|||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|
|
|||
