On Grid Off Grid Hybrid Solar Inverter 10kw 12kva Deye Europe Version
Price:
$2,124.00/pieces
MOQ:
10 pieces
Delivery Time:
Negotiable
Brand:
Deye
Product Description
Products Description

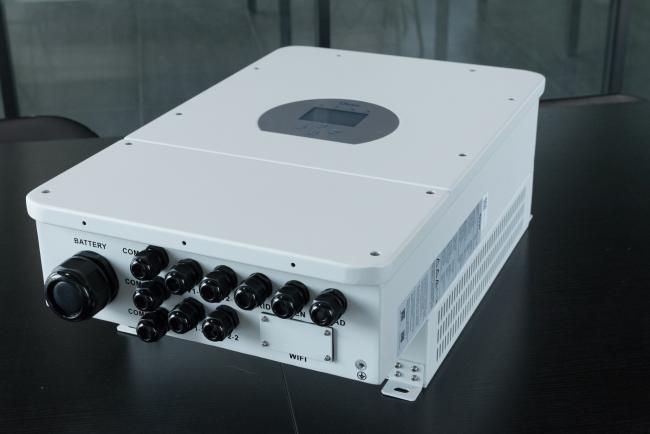

Deye Hybrid Inverter
An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.
Deye hybrid inverters include single phase 3-16kW and three-phase 8-12kW, For the SUN-3K-SG04LP1-24-EU, it uses 24V battery bank and the rest of them adopts 48V battery. Also, the SUN-16K-SG01LP1-EU is the max single phase hybrid inverter on the global market.
The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the
connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.
Higher yields / Safe & Reliable / Smart / User-friendly

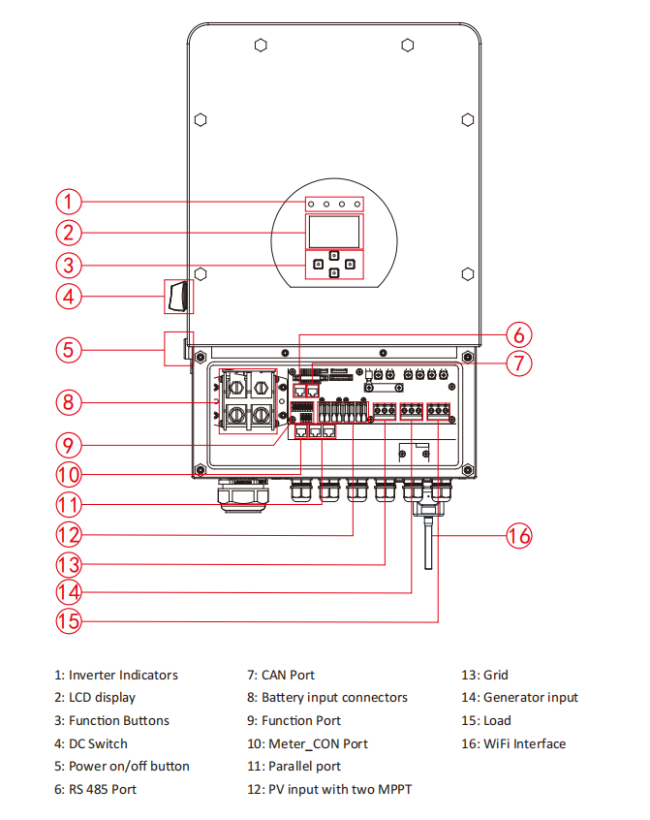

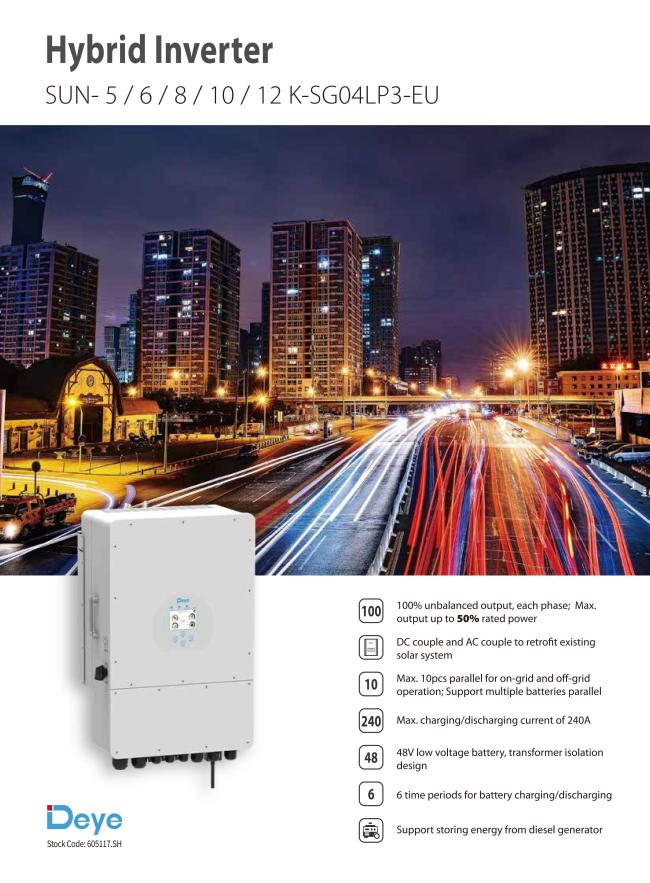

SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
* 48V low voltage battery, transformer isolation design
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 240A
* Max.10pcs parallel
* DC couple and AC couple to retrofit existing solar system
* Support storing energy from diesel generator
* Supports three phase unbalanced output
* Unique Smart Load application and Grid peak shaving function
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 240A
* Max.10pcs parallel
* DC couple and AC couple to retrofit existing solar system
* Support storing energy from diesel generator
* Supports three phase unbalanced output
* Unique Smart Load application and Grid peak shaving function
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
|

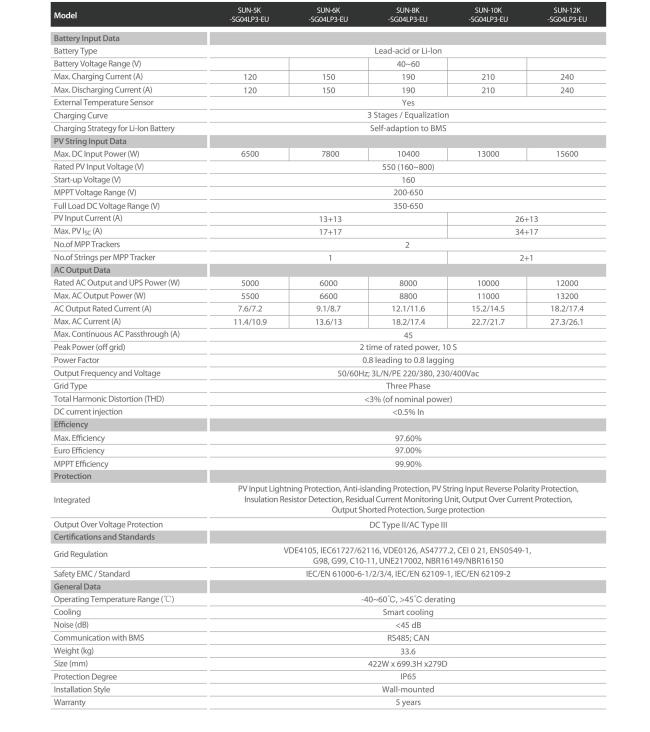

Model
|
SUN-5K-SG04LP3-EU
|
SUN-6K-SG04LP3-EU
|
SUN-8K-SG04LP3-EU
|
SUN-10K-SG04LP3-EU
|
SUN-12K-SG04LP3-EU
|
|||||
|
Battery Input Data
|
|
|
|
|
|
|||||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
|
|
|
|||||
|
Battery Voltage Range (V)
|
40~60V
|
|
|
|
|
|||||
|
Max. Charging Current (A)
|
120A
|
150A
|
190A
|
210A
|
240A
|
|||||
|
Max. Discharging Current (A)
|
120A
|
150A
|
190A
|
210A
|
240A
|
|||||
|
Charging Curve
|
3 Stages / Equalization
|
|
|
|
|
|||||
|
External Temperature Sensor
|
Yes
|
|
|
|
|
|||||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|
|
|
|
|||||
Product Details
