Split Phases 8kw 10kw Hybrid Solar Inverter 120VAC 240VAC Two Output
Price:
$1,600.00/pieces 1-49 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TTN
Product Description
Products Description

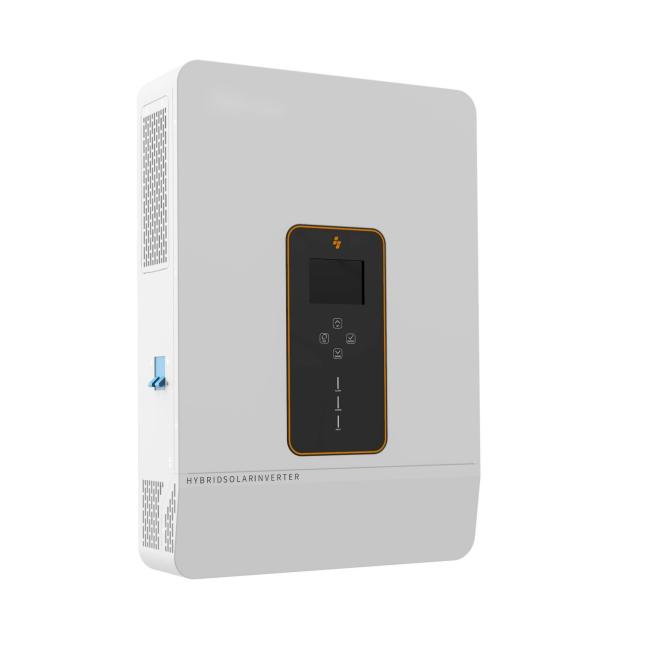

TTN Solar Inverter
The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.
TTN-ASF4880U200-H / ASF48100U200-H
All-in-one solar charge inverter
1. Sectional charging and discharging function available, able to enable and disable AC charging function based on the charging
section time be set, switch power supply mode between inverter and AC bypass based on the discharge section time be set.
2. Anti-counter-current grid-connected function (PV and mains hybrid power supply).
3. It has insulation impedance and leakage current detection function.
4. Support for use under battery-free conditions.
5. It has double activation function of lithium battery, which can be triggered by connecting any mains/PV power.
6. With the function of ECO mode and reducing no-load loss.
7. There are 4 charging modes available: solar only, Mains Power first, solar first and hybrid charging.
8. It has two output modes: Mains Power bypass and inverter output, and has the function of uninterrupted power supply.
9. It has multiple protection functions for 360° omni-directional protection.
10. Support lead-acid battery and lithium battery access.
11. The ON/OFF switch controls the inverter AC output.
12. PV Grid-connected power generation mode can be set.
13. Adopt full digital voltage and current double closed-loop control, state-of-art SPWM technology and output pure sine wave.
14. Advanced MPPT technology, the efficiency is as high as 99.9%.
15. LCD screen design, 3 LED indicator lights, dynamic display system data and running status.
16. Adopt intelligent adjustable speed fan to dissipate heat efficiently and prolong the service life of the system.
17. Complete short circuit protection, over-voltage and under-voltage protection, overload protection and backfeed
|
MODEL
|
ASF4880U180-H
|
ASF48100U200-H
|
||
|
INVERTER OUTPUT
|
|
|
||
|
Rated Output Power
|
8,000W
|
10,000W
|
||
|
Max.Peak Power
|
16,000W
|
20,000W
|
||
|
Rated Output Voltage
|
120Vac(single phase L+N+PE)/ 240Vac(split phase L1+L2+N+PE)
|
|
||
|
Load Capacity of Motors
|
5HP
|
6HP
|
||
|
Rated AC Frequency
|
50/60Hz
|
|
||
|
Waveform
|
Pure Sine Wave
|
|
||
|
Switch Time
|
10ms(typical)
|
|
||
|
Output Mode
|
Off-grid(default)/ On-grid / Hybrid
|
|
||
|
BATTERY
|
|
|
||
|
Battery Type
|
Li-ion / Lead-Acid / User Defined
|
|
||
|
Rated Battery Voltage
|
48Vdc
|
|
||
|
Voltage Range
|
40-60Vdc
|
|
||
|
Max.MPPT Charging Current
|
200A
|
|
||
|
Max.Mains/Generator Charging Current
|
100A
|
120A
|
||
|
Max.Hybrid Charging Current
|
180A
|
200A
|
||
|
PV INPUT
|
|
|
||
|
Num. of MPP Trackers
|
2
|
|
||
|
Max.PV array power
|
5,500W + 5,500W
|
|
||
|
Max.input current
|
22A + 22A
|
|
||
|
Max.Voltage of Open Circuit
|
500Vdc + 500Vdc
|
|
||
|
MPPT Voltage Range
|
125—425Vdc
|
|
||
|
MAINS / GENERATOR INPUT
|
|
|
||
|
Input Voltage Range
|
90-140Vac
|
|
||
|
Frequency Range
|
50/60Hz
|
|
||
|
Bypass Overload Current
|
63A
|
|
||
|
EFFICIENCY
|
|
|
||
|
MPPT Tracking Efficiency
|
99.9%
|
|
||
|
Max. Battery Inverter Efficiency
|
92%
|
|
||
|
GENERAL
|
|
|
||
|
Dimensions
|
620*445*130mm(2*1.46*0.4ft)
|
|
||
|
Weight
|
27kg(59.5lb)
|
|
||
|
Protection Degree
|
IP20,Indoor Only
|
|
||
|
Operating Temperature Range
|
-15~55℃,>45℃ derated (5~131℉,>113℉ derated)
|
|
||
|
Cooling Method
|
Internal Fan
|
|
||
|
Warranty
|
2 Years
|
|
||
|
COMMUNICATION
|
|
|
||
|
Embedded Interfaces
|
RS485 / CAN / USB / Dry contact
|
|
||
|
External Modules (Optional
|
Wi-Fi / GPRS
|
|
||
|
CERTIFICATION
|
|
|
||
|
Safety
|
IEC62109-1, IEC62109-2,UL1741
|
|
||
|
EMC
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
|
||
|
RoHS
|
Yes
|
|
||
