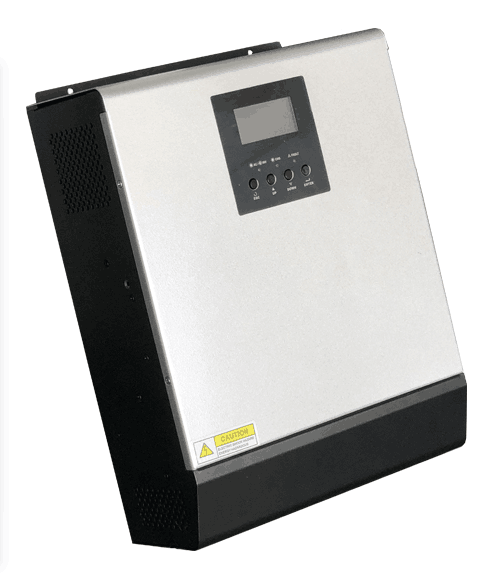

PS Series 3kva 24v 5kva 48v Pure Sine Wave Hybrid Solar Power Inverter With PWM Controller
Price:
$143.00/sets 1-30 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TTN
Product Description
Product Description
PS series 3kva 24v 5kva 48v pure sine wave hybrid solar power inverter with PWM controller
Features of 24V/48VDC solar power inverter
1.Pure sine wave inverter
2.Built-in PWM solar charge controller
3.Selectable input voltage range for home appliances and personal computers.
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start function
11.Parallel operation with up to 4 units only available for MKS 4K/5K
Product Parameters
| Model NO. | PS1K | PS3K | PS5K | |
| Rated Power | 1000VA/800W | 3000VA/2400W | 5000VA/4000W | |
| INPUT | Phase&waveform | 230 VAC | ||
| Voltage selectable range (for Personal Computer) | 170~280 VAC | |||
| Voltage selectable range (for home appliance) | 90~280 VAC | |||
| Frequency range | 50Hz/60Hz (Auto sensing) | |||
| OUTPUT | AC voltage Regulation (Batt.Mode) | 230V AC ± 5% | ||
| Surge Power | 2000VA | 6000VA | 10000VA | |
| Efficiency (Peak) | 90% | 93% | ||
| Transfer time | 10ms (for personal computer),20ms (for home appliance) | |||
| Wave form | Pure sine wave | |||
| Battery& AC Charger | Battery voltage | 12VDC | 24VDC | 48VDC |
| Floating charge Voltage | 13.5VDC | 27VDC | 54VDC | |
| Overcharge Protection | 15VDC | 30VDC | 60VDC | |
| Maximum Charge Current | 10A or 20A | 20A or30A | 10A/20A/30A/40A/50A/60A | |
| PV Input | Charge current | 50A | ||
| MPPT Range @ Operating Voltage (VDC) | 50VDC | 60VDC | 105VDC | |
| Standy powr consumption | 1W | 2W | 2W | |
| Physical | Dimension, D×W×H (mm) | 305x300x110 | 305x272x100 | 413x295x120 |
| Net Weight (Kgs) | 4.5 | 6.9 | 9.8 | |
| Environmental | Humidity | 5%~95% Relative Humidity (Non-condensing) | ||
| Operation Temperature | 0℃~55℃ | |||
| Storage Temperature | -15℃~60℃ | |||
Product Link Skretch
